(888) 312-8812 Login SignupGABRIEL 49152 Air Adjustable Shock Absorbers
Tap to view 6 more
$18549
Limited availability at this price!
In Stock
Get it by Tuesday, Feb 10
GABRIEL 49152 Part Description
Manufacturer
Product Description
Air Adjustable Shock Absorbers
Features & Benefits
- Can help improve handling and reduce risk of bottoming out Up to 1,100 pounds of leveling capacity per pair (not to exceed GVWR)
- America's best-known air-adjustable shock absorbers
- Fully-adjustable air shocks help you maintain proper ride height
- Custom-sized for a direct and simple installation and fit
- Easy to inflate at any service station, at home with an air compressor or with continued use of an existing onboard air management system
- Air pressure of 25 min – 200 max psi
- Air pressure of 25 min - 200 max psi
- Sold in pairs and includes Gabriel Air Hose Kit when applicable – Air Hose Kit can also be purchased separately
- Sold in pairs and includes Gabriel Air Hose Kit when applicable - Air Hose Kit can also be purchased separately
- Chrome-plated piston rod construction and deluxe wiper seals provide optimum sealing
- Ideal for temporarily towing boats and trailers or heavy loads
Shocks, Struts
GABRIEL 49152 Specifications
Product Attributes

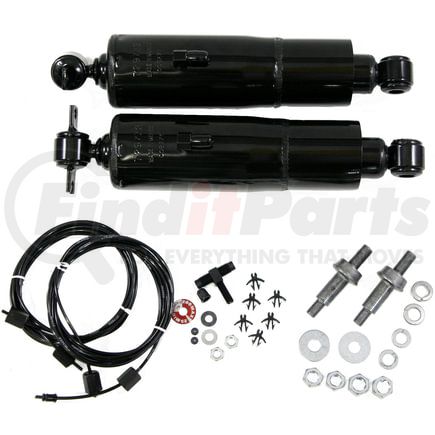

| Package Contents | 2 Shocks, 2 Nuts, 2 Clamps, 2 O-ring Packing, 1 Cap, 1 Valve Core, 6 Clips, 1 Washers, 1 Seal, 2 Tube assy, 8 Nuts, 12 Washers, 4 Bolts |
| Core Color | Y |
| Weight (lbs) | 9.80 |
| Boot Included | No |
| Collapsed Length (in) | 13.04 |
| Installation Hardware Included | Yes |
| Extended Length (in) | 20.27 |
| Upper Mount Code | BP31 |
| Lower Mount Code | EB1 |
| Stroke (in) | 7.23 |
| Bore | n/a |
| Rebound (lb) | n/a |
| Recoil Cutoff | n/a |
| Accessory Kit # | 140630,141099 |
| Mounting Codes 2024.pdf | https://gabriel.com/sites/default/files/Mounting_Codes_2025.pdf |
| Compression (lb) | n/a |
| Dust Tube | n/a |
| Dust Tube Material | Steel |
| Strut Mounting Type (Lower) | Eyelet |
| Strut Mounting Type (Upper) | Two Bolt Bar |
| Gas Charged | No |
| Features/Benefits 1 | America’s best-known air-adjustable shock absorber |
| Features/Benefits 2 | Ideal for temporarily towing boats and trailers or heavy loads |
| Features/Benefits 3 | Can help improve handling and can reduce the risk of bottoming out |
| Features/Benefits 4 | Up to 1,100 lbs per pair of leveling capacity not to exceed vehicle Gross vehicle Weight Rating, product does not increase payload |
Additional Information
| MSDS Sheet Number | ARP002 / RC001 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Country of Origin (Primary) | MX |
| UPC | 00043645503307 |
| VMRS Code | 016006001 |
| UNSPSC | 25172011 |
GABRIEL 49152 Cross References
GABRIEL 49152 Fits Vehicles
- Buick Sportwagon (1970-1972)
- Pontiac Tempest (1964-1970)
- Buick Special (1964-1969)
- Pontiac LeMans (1964-1967)
- Pontiac GTO (1964-1973)
- Oldsmobile F85 (1964-1972)
- Chevrolet Monte Carlo (1970-1972)
- Chevrolet Chevelle (1964-1973)
- Buick Skylark (1964-1972)
- Buick GS 400 (1968-1969)
- Buick Gran Sport (1965-1967)
- Buick GS 455 (1970-1972)
- Buick GS 350 (1968-1969)
- Buick GS (1970-1972)
- Nissan 710 (1974-1977)
- Nissan 810 (1978-1980)
- Nissan 610 (1973-1976)
- Pontiac Safari (1987-1989)
- Pontiac Grand Safari (1971-1978)
- Pontiac Parisienne (1976-1986)
- Pontiac Grandville (1971-1975)
- Pontiac Grand LeMans (1975-1977)
- Pontiac Grand Am (1973-1975)
- Pontiac Catalina (1971-1975, 1977-1981)
- Oldsmobile Toronado (1971-1978)
- Oldsmobile Cutlass (1964-1977)
- Oldsmobile Custom Cruiser (1977-1992)
- GMC Sprint (1971-1977)
- Chevrolet Malibu (1975)
- Chevrolet Impala (1971-1982)
- Chevrolet El Camino (1968-1977)
- Chevrolet Caprice (1971-1996)
- Buick Roadmaster (1991-1996)
- Buick Regal (1973-1977)
- Buick Estate Wagon (1971-1983)
- Buick Century (1973-1977)
