MONROE 911096 Part Description
Manufacturer
Product Description

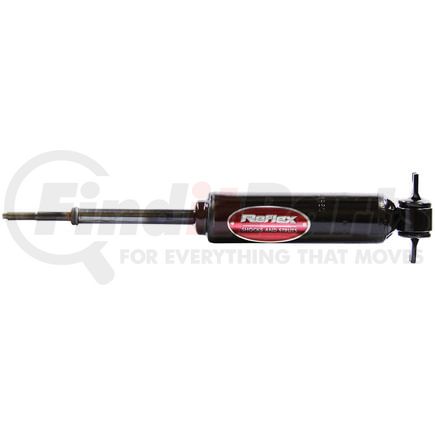

Reflex Front Suspension Shock Absorber
Features & Benefits
- IMPROVES STABILITY -- ASD (Acceleration Sensitive Damping) valving technology adjusts to impacts, reducing roll and dive for vehicles with a higher center of gravity
- EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger reserve tube holds more fluid to run cooler
- CONTROL AND DURABILITY -- Fluon-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
- IMPROVES PERFORMANCE -- Nitrogen gas charge maintains tire-to-road contact for improved ride and handling by reducing aeration
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
- BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
MONROE 911096 Specifications
Product Attributes
| Compressed Length | 9 IN |
| Compressed Length | 228.6 MM |
| Extended Length | 13.75 in |
| Extended Length | 349.3 MM |
| Travel Length | 4.75 in |
| Travel Length | 120.6 MM |
| Lower Mount Type | Cross Pin Mount - Open Ended, 5/16" Hole ID (Both Ends) X 3" Pin Length (Hole Center to Center) |
| Lower Mount Type | T-Bar |
| Lower Mount Code | XP8 |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Upper Mount Code | S4 |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Mounting Hole |
| Gas Charged | Yes |
| Mounting Hardware Included | Yes |
| Parts Pack(s) | P01135 |
| Dust Shield Included | No |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Part Description | Shock Absorber |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598840646 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 911096 Cross References
| Brand | Part Number |
|---|---|
| 911096MM, 829352491430 | |
| Dodge | 3837028, 4039724, 4086418, 4131320, 4131321, 4131350, 4364771, 4364772, 4443467, 4443481, 4443484, 4447390, 4504317, 4740238, 4740239, 4740240, 4740241, 4740242, 4740243, 4740244, 4740245, 4740246, 4740247, 4740248, 4740249, 5011635AB, 5011635AC, 5011635AE, 5011636AC, 5011636AE, 5012335AC, 5016224AA, 5016226AB, 52038275, 52038295, 52039030, 52039319AB, 52039319AC, 52039382AC, 52039383AC, 52106310AB, 52106310AC, 52106310AD, 52106311AA, 52106311AB, 52106311AC, 52106312AB, 52106312AC, 52106314AC, 52106316AC, 52106320AB, 52106320AC, 4039723 |
| GABRIEL | G63359, 34052, G63360 |
| KYB | KG5403, KG5404, 344066 |
| KYB AMERICA LLC. | KG5403 |
| Monroe Shocks & Struts | 34831, 210205, 37096, 210411 |
| NAPA Shocks | 911096 |
| PRT | 171384 |
| Sensen | 32140219 |
MONROE 911096 Fits Vehicles
- Dodge B300 Van (1971-1974)
- Dodge B200 Van (1971-1974)
- Dodge B100 Van (1971-1974)
- Dodge Ram 3500 Van (1996-2003)
- Dodge Ram 2500 Van (1996-2003)
- Dodge Ram 1500 Van (1995-2003)
- Dodge B3500 (1995-1998)
- Dodge B350 (1981-1994)
- Dodge B300 (1975-1980)
- Dodge B2500 (1995-1998)
- Dodge B250 (1981-1994)
- Dodge B200 (1975-1980)
- Dodge B1500 (1995-1998)
- Dodge B150 (1981-1994)
- Dodge B100 (1975-1980)
