MONROE 74406 Magnum Amortisseur

★★★★★ (0)

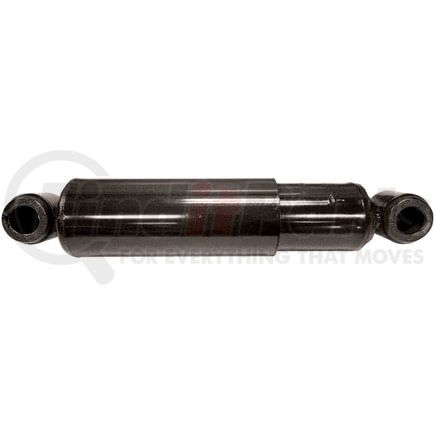

Monroe 74406 Suspension Shock Absorber Magnum Amortisseur
MONROE
Tap to view 3 more

MSRP: $121.82

$96.99

Save $24.83

Limited availability at this price!

In Stock

Get as soon as Wednesday, Nov 25
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details
Orders placed over the weekend will be processed the next business day.

MONROE 74406 Part Description

Manufacturer

MONROE

Product Description

Magnum Rear Suspension Shock Absorber

Features & Benefits

  • INSTALLERS ADVANTAGE -- Designed to save time, simplify the job, fix OE design issues, solve customer complaints or enhances durability and longevity
  • FOR HARDWORKING TRANSIT BUSES -- Designed to handle the demands of high mileage and severe use transit buses
  • CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/4-in. reserve tube holds more fluid to improve performance (when required)
  • EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore allows valve finetuning by allowing more hydraulic fluid to dissipate heat for better control
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
  • BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (when required)
  • LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
  • BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty

MONROE 74406 Specifications

Product Attributes

Compressed Length14.234 IN
Compressed Length361.5 MM
Extended Length20.844 in
Extended Length529.4 MM
Travel Length6.61 in
Travel Length167.9 MM
Lower Mount TypeLoop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL
Lower Mount TypeLoop (Eyelet) Bushing
Lower Mount CodeL4
Upper Mount TypeLoop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL
Upper Mount CodeL4
Shock Absorber Rod End Measuring PointCenter of Loop
Shock Absorber Body End Measuring PointCenter of Loop
Gas ChargedNo
Mounting Hardware IncludedNo
Parts Pack(s)None
Body ColorBlack
Cylinder ColorBlack
ColorBlack
Cylinder FinishPainted
Dust Shield IncludedYes
Dust Shield MaterialPlastic
Includes Bump StopNo
Internal Rebound BumperNo
Hydraulic LockoutYes
Grade TypePremium
Active or Passive SuspensionPassive
Adjustable CompressionNo
Adjustable ReboundNo
Adjustable Ride HeightNo
Part DescriptionShock Absorber

Additional Information

MSDS Sheet Number01164
Country of Origin (Primary)US
Canadian Harmonizing Tariff Code8708803000
Harmonized Tariff Code (Schedule B)8708800050
Harmonized Tariff Code (HTS)8708801600
UPC00048598036179
VMRS Code016008003
UNSPSC25172011

MONROE 74406 Cross References

BrandPart Number
74406MM, MAE74406
BATCO1087001, 1089000
BLUE BIRD961284, 1750793, 30009612284
BULLDOG HD SHOCKSHD1115-0078
Blue Bird901813, A4890
Bulldog HDHD11150078
CHEVROLET3178233, 5357956, 646220
CROWN COACH5532036
EUCLIDE87001
FCSF347312, F346599, F343368, F344355, F344353, F346598, F347215, F347303
GABRIEL85712, 85004, 68010240T, 728801, 68010240Y, 728616, 85734, 680102
GM646220, 3178233, 5357956
GMC5357956, 3178233
General Motors646220, 3178233, 5357956
Gold Shock Absorber5001270, 5001371
HALDEXSA74406
Holland90044011
INTERNATIONAL350426C1, 534464C1, 680155, AMS700407
KIMBLE MIXERS901868
KONI901813SP1, 901868
KYB341621, 341620
MACK700407MT, 700407
MERITORM85712, M85734
MONROE74406
MONROE VINTAGE700407, 701407, 74406
Monroe Shocks & Struts700407, 701407, 74406
NAPA Shocks74406
NEWAYAR995, 90044011, 57374406
NUTURN/LELANDL78100
OEM90044011
OPTIMA11265478b000
OSHKOSH5361994, 12405F
PETERBILT90044011
RIDEWELL CORP11265478B000, S4025B, AS4025B
SACHS NORTH AMERICA510003
Sachs510003
VOLVO / WHITE / GMC646220
Volvo GM Heavy Truck646220

MONROE 74406 Fits Vehicles

  • International 2275 (1981-1989)
  • International 2554 (1981-2002)
  • International 2574 (1984-2003)
  • International 2575 (1984-1989)
  • International F2275 (1979-1989)
  • International F2554 (1979-1989)
  • International F2574 (1979-1989)
  • International F2575 (1979-1989)
  • International F2654 (1980-1989)
  • International F2674 (1979-1989)
  • Peterbilt 357 (1986-2008)
  • Peterbilt 372 (1989-1995, 1997)
  • Peterbilt 375 (1987-1996)
  • Peterbilt 376 (1988-1992, 1994-1996, 1999)
  • Peterbilt 377 (1987-2001)
  • Peterbilt 378 (1988-2007)
  • Peterbilt 379 (1986-2007)
