MONROE 66922 Part Description
Manufacturer
Product Description

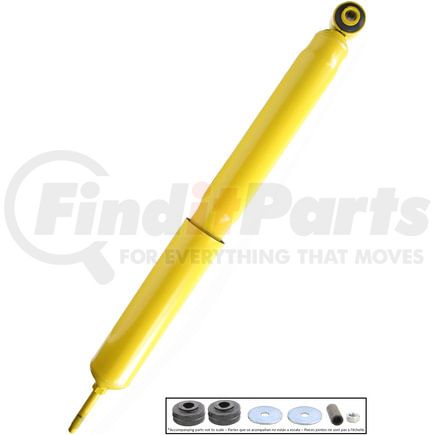

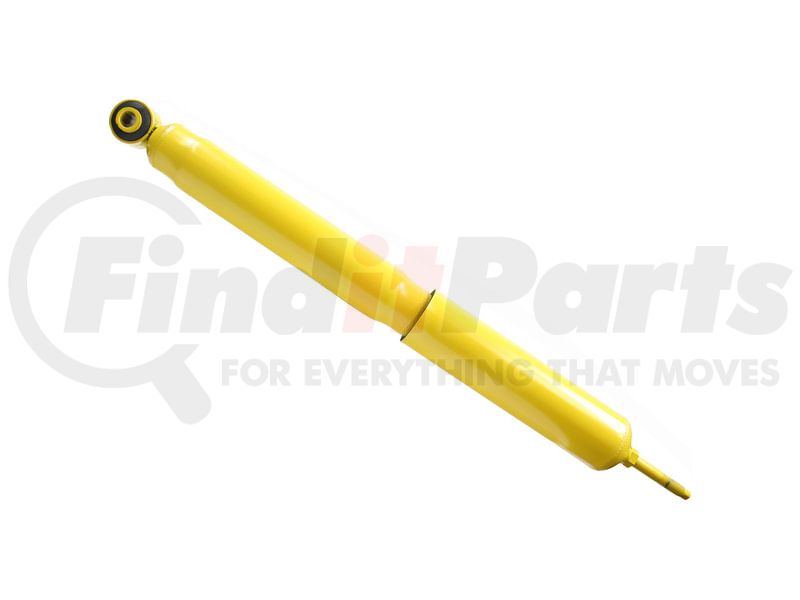

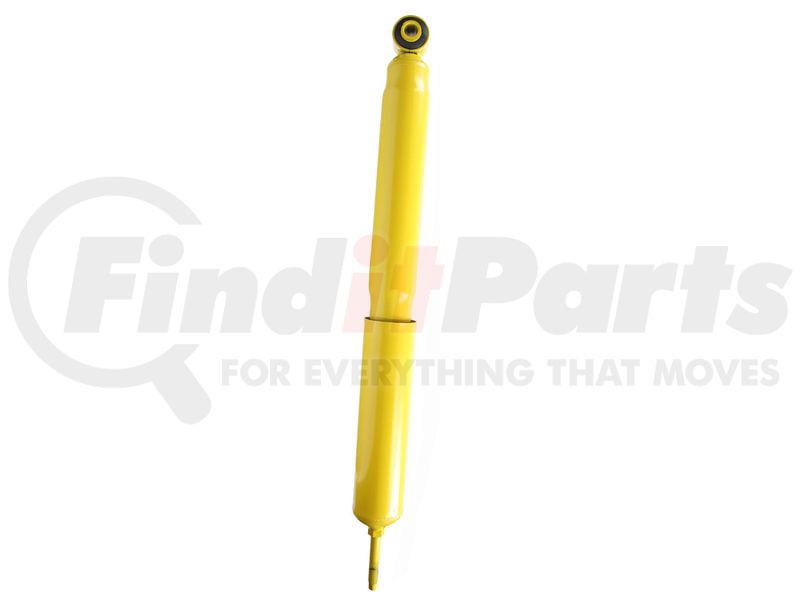

Monroe Gas-Magnum 60 Shock Absorber
Monroe Gas-Magnum 60 Shock Absorber
Specifications
- Upper Mounting Code :Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch
- Lower Mounting Code :Loop Bushing& Sleeve Mount - 5/8"-16MM Sleeve ID X 2" Sleeve OAL
- Compressed Length :14.875"
- Extended Length :25.625"
- Travel Length :10.750"
- Dust Shield :Yes
- Parts Pack(s) :P1283& P1284
- Compressed Bumper Stop :No
- Extended Bumper Stop :No
- Extended Hydraulic Lockout :No
- Compressed Hydraulic Lockout :No
- Dust Shield Material :Metal
- The Monroe Gas-Magnum 60 shock absorber is gas-charged for quicker response and a stable, more comfortable ride. Replacing worn-out units with hard-working Gas-Magnum 60 shocks can help reduce excessive vibration. The result can be better tire life, less downtime and a lower cost per mile.
- Multi-lip fluid seal designed for smooth performance, long life and reduced friction
- Nitrogen Gas Charged: For improved ride and handling, helps maintain tire to road contact by reducing aeration.
- 2" or 2-3/8" (50.8 mm or 60.3 mm) reserve tube (where required)
- 1-3/8 inch (34.9 mm) bore (On most applications)
- 5/8-inch (15.9 mm) diameter piston rod (On most applications)
- Resistance and arc-welded mounts, provide 9,500 lbs. (4,309 kg) of tensile strength for maximum durability (on most applications)
- Patented unique hydraulic rebound lockout (when required)
MONROE 66922 Specifications
Product Attributes
| Upper Mounting Code | --- - Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch |
| Lower Mounting Code | --- - Loop Bushing & Sleeve Mount - 5/8"-16MM Sleeve ID X 2" Sleeve OAL |
| Compressed Length | --- - 14.875" |
| Extended Length | --- - 25.625" |
| Travel Length | --- - 10.750" |
| Dust Shield | --- - 'Yes' |
| Parts Pack(s) | --- - P1303 |
| Cylinder Included | --- - 'No' |
| Compressed Bumper Stop | --- - 'No' |
| Extended Bumper Stop | --- - 'No' |
| Extended Hydraulic Lockout | --- - 'No' |
| Dust Shield Material | --- - Metal |
| Feature Point | --- - 10-Stage full displaced valving (on most applications) |
