MONROE 65153 Magnum Amortiguador

★★★★★ (0)

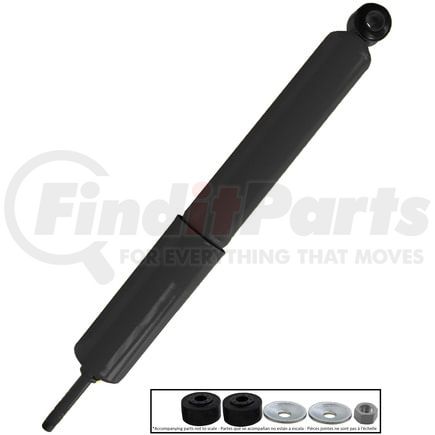

Monroe 65153 Suspension Shock Absorber Magnum Amortiguador
MONROE
Tap to view 3 more

$103.99

Limited availability at this price!

In Stock

Get as soon as Tuesday, Nov 24
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details
Orders placed over the weekend will be processed the next business day.

MONROE 65153 Part Description

Manufacturer

MONROE

Product Description

Magnum Rear Suspension Shock Absorber

Features & Benefits

  • INSTALLERS ADVANTAGE -- Designed to save time, simplify the job, fix OE design issues, solve customer complaints or enhances durability and longevity
  • FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
  • CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance (most applications)
  • EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
  • BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (most applications)
  • LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty

MONROE 65153 Specifications

Product Attributes

Compressed Length13.5 IN
Compressed Length342.9 MM
Extended Length21.5 in
Extended Length546.1 MM
Travel Length8 in
Travel Length203.2 MM
Lower Mount TypeLoop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
Lower Mount TypeLoop (Eyelet) Bushing and Sleeve
Lower Mount CodeLS54
Upper Mount TypeStem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch
Upper Mount CodeS6
Shock Absorber Rod End Measuring PointBase of Stem
Shock Absorber Body End Measuring PointCenter of Loop
Gas ChargedYes
Mounting Hardware IncludedNo
Parts Pack(s)P01482
Body ColorBlack
Cylinder ColorBlack
ColorBlack
FinishPainted
Cylinder FinishPainted
Dust Shield IncludedYes
Dust Shield MaterialMetal
Shock Absorber Bore Size44.5 MM
Shock Absorber Bore Size1.75 IN
Includes Bump StopNo
Internal Rebound BumperNo
Hydraulic LockoutNo
Internal Construction TypeTwin Tube
Grade TypePremium
Adjustable DampingNo
Active or Passive SuspensionPassive
Adjustable CompressionNo
Adjustable ReboundNo
Adjustable Ride HeightNo
Part DescriptionShock Absorber
Foam Cell DesignNo
Shaft Diameter18 MM

Additional Information

MSDS Sheet Number01168
Country of Origin (Primary)CN
Canadian Harmonizing Tariff Code8708803000
Harmonized Tariff Code (Schedule B)8708800050
Harmonized Tariff Code (HTS)8708801600
UPC00048598170538
VMRS Code016008003
UNSPSC25172011

MONROE 65153 Cross References

BrandPart Number
65153MM, MAE65153
BULLDOG HD SHOCKSHD1215-0180
Bulldog HDHD12150180
FREIGHTLINER1615765000
Freightliner1618707000
GABRIEL85921
Gold Shock Absorber9180134
HALDEXSA65153
MERITORM85921
NAPA Shocks65153
OEM1618707000
PRT HD170221
SACHS NORTH AMERICA315394, 471700002993
Sachs315394, 471700002993

MONROE 65153 Fits Vehicles

  • Freightliner Business Class M2 (2004-2012)
  • Freightliner M2 (2006-2023)
  • Freightliner M2 106 (2002-2014)
  • Freightliner M2 112 (2003-2014)
  • Jayco Seneca (2012-2017)
  • Thomas School Bus (1988-1991, 2000, 2006)
