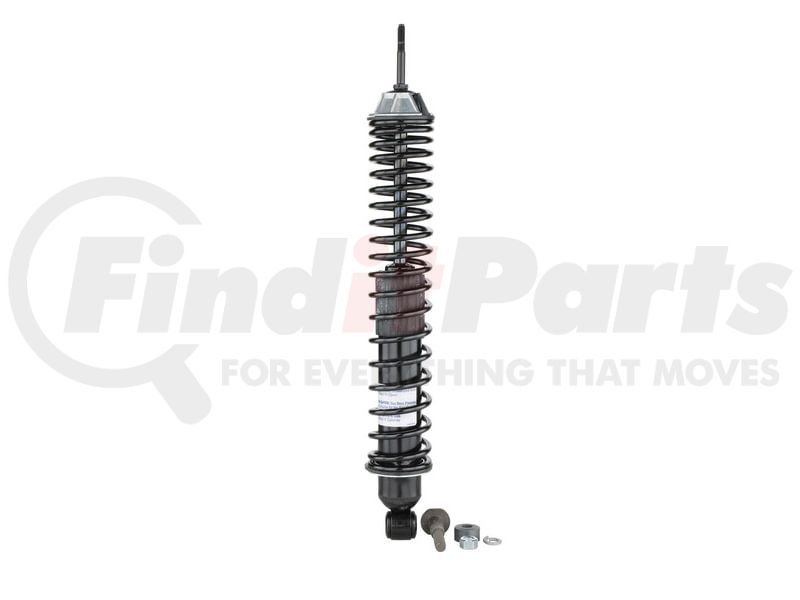

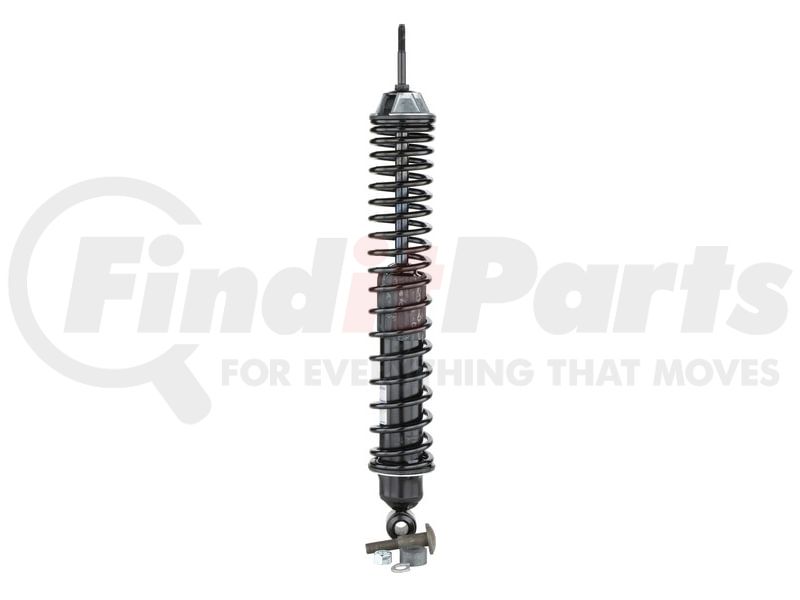

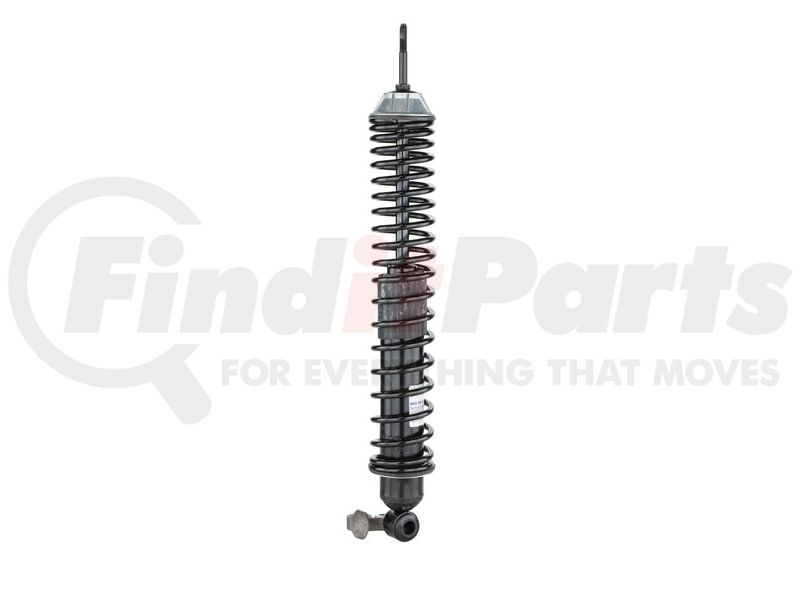

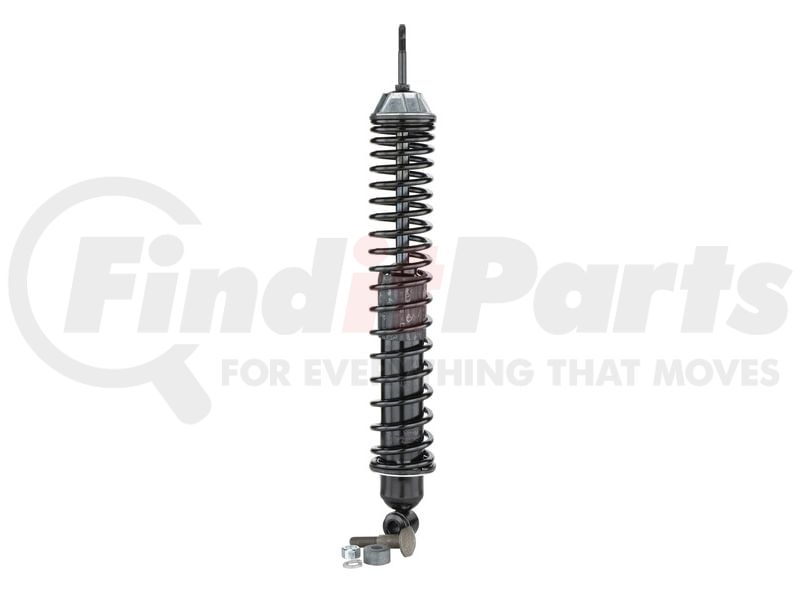

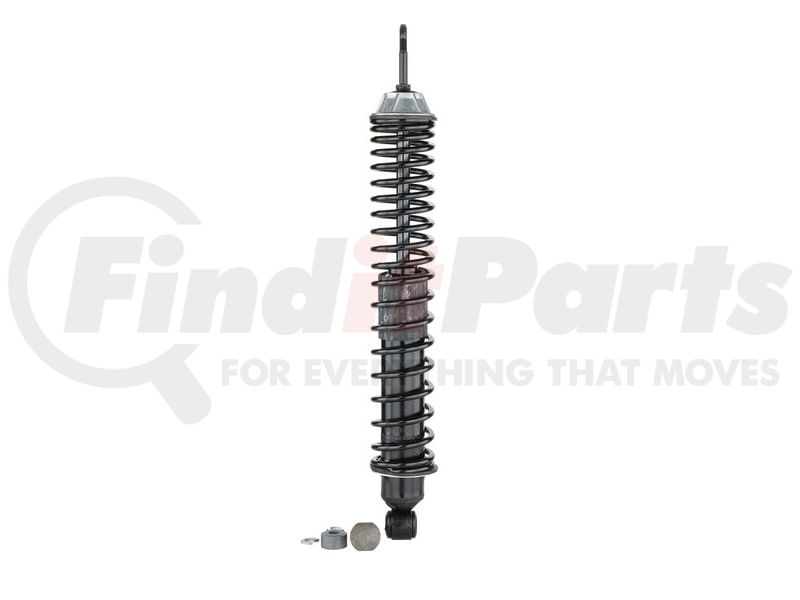

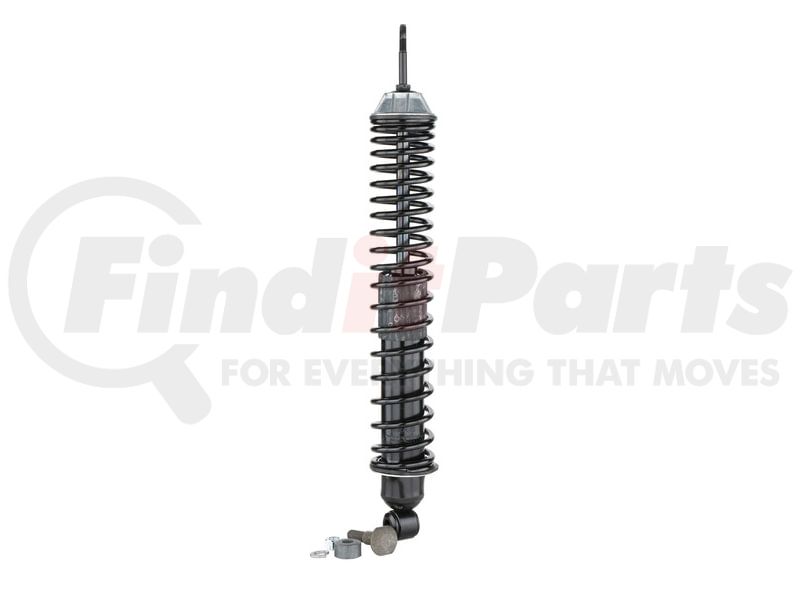

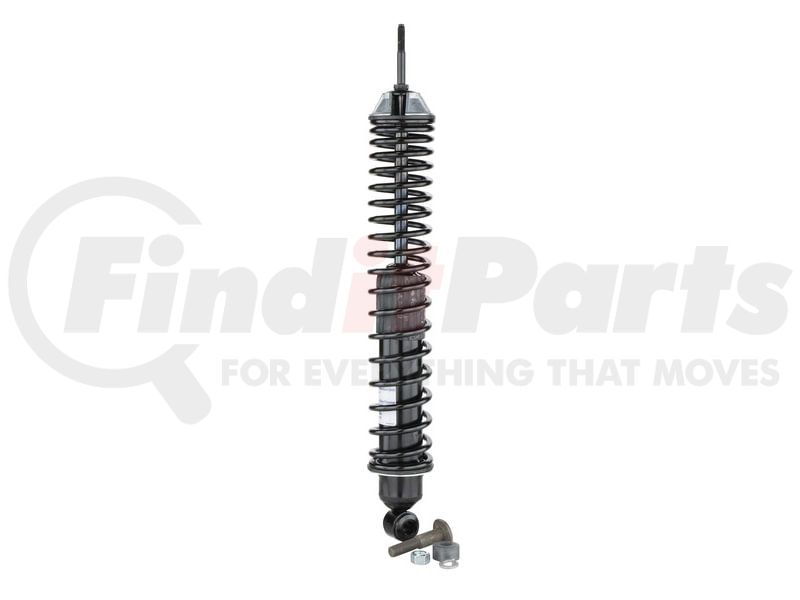

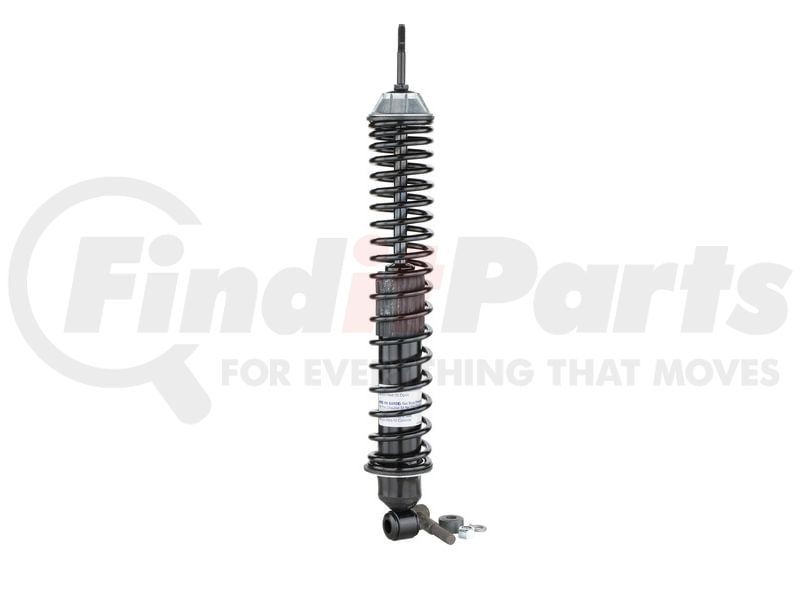

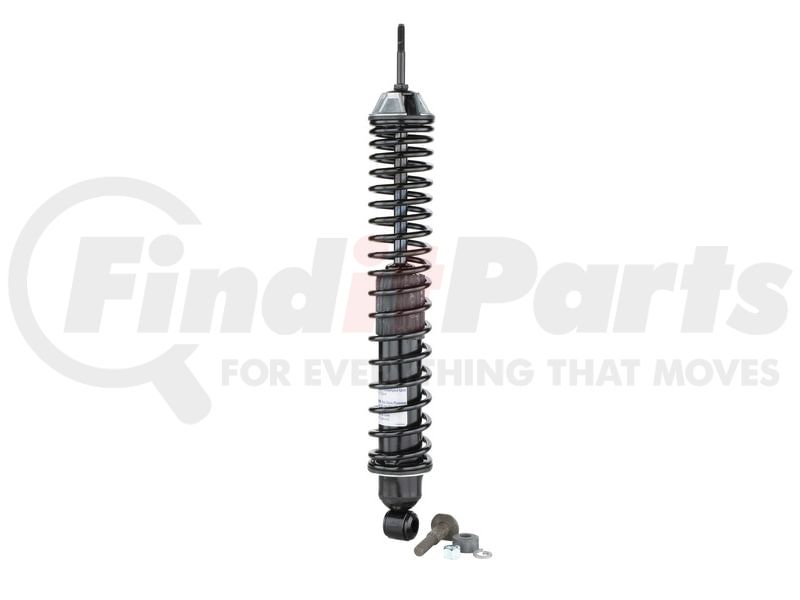

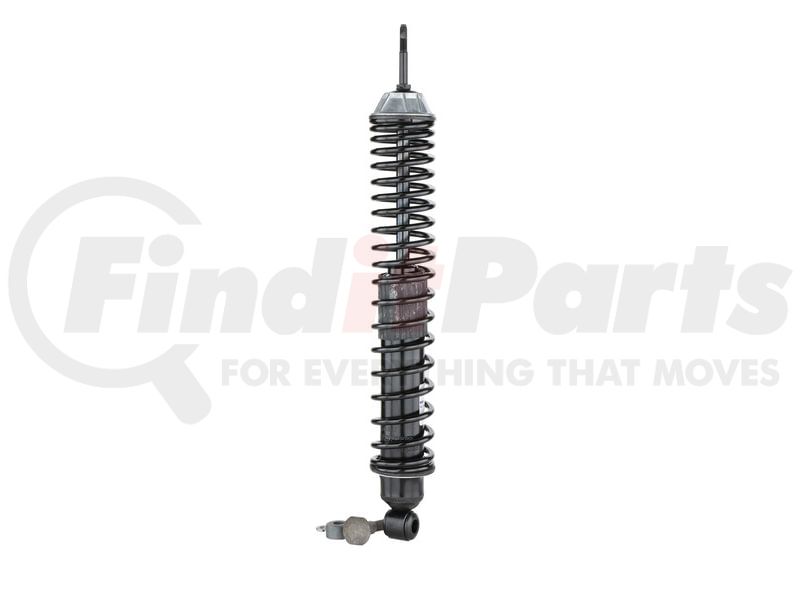

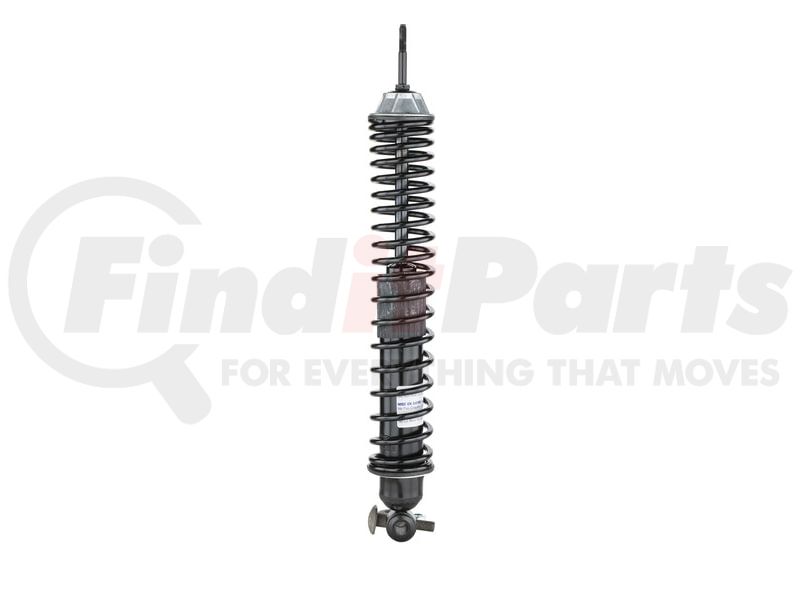

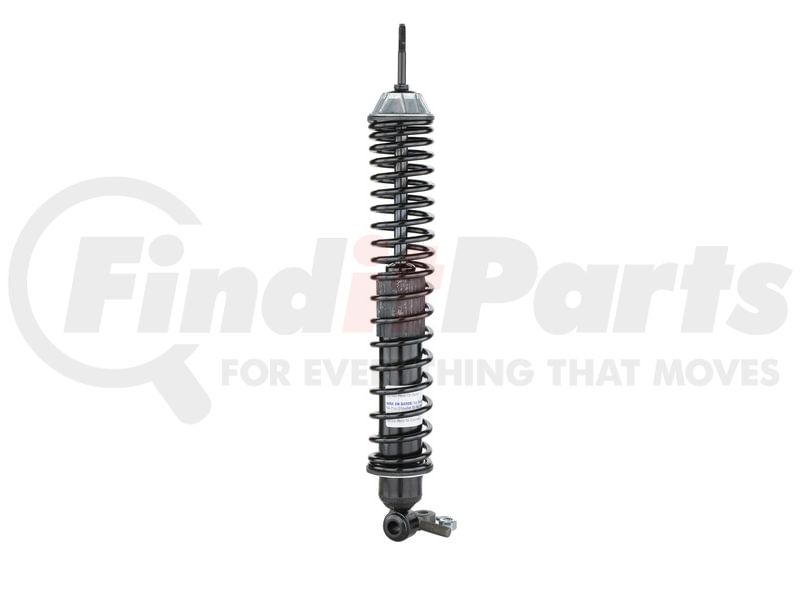

(888) 312-8812 Login SignupMONROE 58568 Load Adjusting Ensemble amortisseur avec ressort Un paquet de 2
Tap to view 11 more
MSRP: $268.50
$17949
Save $89.01
Limited availability at this price!
In Stock
Get it by Friday, Jul 17
MONROE 58568 Part Description
Manufacturer
Product Description
Shock Absorber CS
Features & Benefits
- REDUCES SAG UNDER LOAD -- Ideal for occasionally hauling or towing varying loads; heavy gauge, calibrated coil spring reduces sag when loaded up to 1,200 lbs. (capacity limited by suspension, tires and transmission; see owner's manual)
- EXCEPTIONAL HANDLING -- Tuned specifically for each application, full-displaced valving automatically adjusts to road extremes to provide ride consistency
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and PTFE-banded piston helps reduce friction between the piston and pressure tube to enhance responsiveness to changing road surfaces
- LONGER SERVICE LIFE -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while heavy-duty nitrocarburized rod delivers long life
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
MONROE 58568 Specifications
Product Attributes
| Compressed Length | 314.3 MM |
| Compressed Length | 12.375 IN |
| Extended Length | 19.9 in |
| Extended Length | 504.8 MM |
| Travel Length | 7.5 in |
| Travel Length | 190.5 MM |
| Lower Mount Type | Loop Bushing and Cantilever Pin Mount - 1/2" Stud Diameter X 1 5/16" Stud Length (Center of Loop to Frame) |
| Lower Mount Code | L1/CP3 |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Upper Mount Code | S4 |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Parts Pack(s) | P01136,P00576 |
| Part Description | Shock Absorber and Coil Spring Assembly |
| Damping Type | Oil |
| Grade Type | Premium |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598010025 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 58568 Cross References
| Brand | Part Number |
|---|---|
| 58568ST, FULTAD5712RDS | |
| FCS | SC00051 |
| Ford | 1W7Z18124DA, 3U2Z18124AA, E4AZ18125A, E5VY18125E, E5VY18125F, E7PZ18125A, E9AZ18124A, E9AZ18124B, E9AZ18124D, E9AZ18124E, E9AZ18124F, E9AZ18125A, E9AZ18125B, E9AZ18125E, E9AZ18125F, E9AZ18125G, E9AZ18125H, F2AZ18125A, F5AZ18124A, F5AZ18124B, F5AZ18124C, F5AZ18125A, F6AZ18124AA, F6AZ18124BA, F6AZ18125AA, F6AZ18125BA, F7AZ18124AA, F7AZ18124BA, F7AZ18124BB, F7AZ18124CA, F7AZ18124DB, F7AZ18125AA, F7AZ18125BA, F8AZ18124AA, F8AZ18124BA, F8AZ18124CA, F8AZ18124HA, F8AZ18125AA, F8AZ18125BA, F8MZ18125AA, FOAZ18125A, FOAZ18125B, XW3Z18125AA, XW7Z18124AB, XW7Z18124BB, XW7Z18125AA, XW7Z18125AB, XW7Z18125BA, XW7Z18125BB, XW7Z18125CA, XW7Z18125DA |
| GABRIEL | 43140, 43049 |
| Lincoln Automotive | E5VY18125B, E7LY18125A, E7LY18125B, E7VY18124A, E7VY18124B, E7VY18125B, E8VY18125A, E8VY18125B, E9AZ18125A |
| Mercury | 1W7Z18124DA, E5VY18125E, E5VY18125F, E9AZ18124A, E9AZ18124B, E9AZ18124D, E9AZ18124E, E9AZ18125A, E9AZ18125B, E9AZ18125E, E9AZ18125F, E9AZ18125G, F2AZ18125A, F5AZ18124A, F5AZ18124B, F5AZ18125A, F5MY18124A, F5MY18125A, F6AZ18124BA, F6AZ18125AA, F6AZ18125BA, F6MY18124AA, F6MY18125AA, F7AZ18124AA, F7AZ18124BA, F7AZ18125AA, F7AZ18125BA, F7AZ18125JA, F8AZ18124AA, F8AZ18124BA, F8AZ18124CA, F8AZ18125AA, F8AZ18125BA, F8MZ18125AA, FOAZ18125A, FOAZ18125B, XW3Z18125AA, XW7Z18124AB, XW7Z18124BB, XW7Z18125AB, XW7Z18125BA, XW7Z18125BB |
| NAPA Shocks | 58568 |
| OEM | XW7Z18125BA |
| SENSEN | 12130293 |
MONROE 58568 Fits Vehicles
- Ford F-250 (1956-1960)
- Ford F-100 (1956-1960)
- Nissan 411 (1964-1967)
- Nissan 410 (1964-1965)
- Ford Grand Marquis (2001-2002)
- Ford LTD Crown Victoria (1987-1991)
- Opel Kadett (1968-1972)
- Nissan 510 (1968-1973)
- Mercury Cyclone (1968-1971)
- Mercury Comet (1966-1967)
- Ford Falcon (1966-1970)
- Ford Fairlane (1966-1970)
- Chevrolet Corvette (1953-1962)
- Chevrolet Chevy II (1962-1967)
- Mercury Montego (1968-1976)
- Mercury Marquis (1979-1982)
- Mercury Cougar (1974-1979)
- Mercury Grand Marquis (1979-2002)
- Mercury Colony Park (1987-1991)
- Lincoln Town Car (1981-1989)
- Lincoln Mark VI (1980-1983)
- Lincoln Continental (1980)
- Ford Torino (1968-1976)
- Ford Ranchero (1966-1979)
- Ford LTD II (1977-1979)
- Ford Gran Torino (1972-1976)
- Ford Crown Victoria (1992-2002)
- Ford LTD (1979-1982)
- Ford Country Squire (1987-1991)
