MONROE part description

Product Description

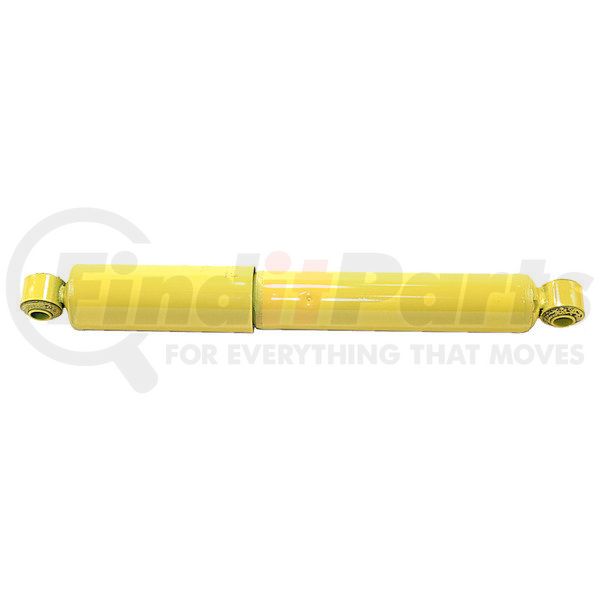

Magnum RV Shock Absorber

Application Summary

2002-2005 Freightliner XC (Rear) (Qualifier: To 22,000 (lb) GVW, Shocks are 1.75 (in) Bore, 23,000 (lb) GVW and Over, Replaces OE Part Number(s) 1614668000, with AD160 Suspension, with AD200 Suspension, For additional OE Part Number cross reference information, please refer to the product interchange, Replaces OE Part Number(s) 1616736000, with ADL200 Suspension); 1995-2015 Freightliner XB Line (Rear) (Qualifier: Replaces OE Part Number(s) 1616736000, with ARD200 Suspension, Shocks are 1.75 (in) Bore)

Features & Benefits

  • FOR RECREATIONAL VEHICLES -- Designed to handle the demands of recreational vehicles that go on cross country adventures and trips close to home
  • Robusto bloqueo hidráulico: Evita la extensión excesiva de la suspensión, el tope del pistón y evita daños en el conjunto del retén.
  • CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger reserve tube holds more fluid to improve performance (when required)
  • Cojinete recubierto de PTFE: Reduce la fricción durante el funcionamiento entre la barra y la guía de la barra, mejorando la durabilidad
  • EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the bore provides more efficient and consistent control (most applications)
  • Bujes con rebordes Tenneco: Bujes con rebordes y bujes adheridos con diseños de manguito que evitan la salida del buje para mejorar la calidad y la durabilidad, en la mayoría de las aplicaciones
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
  • Cargado con gas nitrógeno: Para una mejor conducción y manejo, ayuda a mantener el contacto de la llanta con el suelo al reducir la aireación - en la mayoría de las aplicaciones
  • BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (when required)
  • Técnica de soldadura en bucle: Soldadura por resistencia con soldadura adicional de 360 ??grados para proporcionar hasta 15,000 libras (6.804 kg)de resistencia a la tracción para una máxima durabilidad (cuando sea necesario)
  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
  • Tubo de reserva de 2 pulgadas (50,8 mm) o 2-3/8 pulgadas (60,3 mm): El tubo de reserva de 2" (Serie 555xx) o 2-3/8' (Serie 557xx) retiene más fluido o un rendimiento más consistente - cuando sea necesario
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
  • Tubo de presión de .05 pulgadas que soporta una presión de 9 KPSI
  • Fluido para todo clima: Contiene modificadores especiales para reducir la fricción y asegurar una reacción suave de la barra.

Product Attributes

Compressed Length 13.625 IN
Travel Length 6.875 in
Extended Length 20.5 in
Gas Charged Yes
Dust Shield Included Yes
Dust Shield Material Metal
9783 No
9789 LS54
9791 LS54
9792 Yes
9908 No
Lower Mount Type Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
Part Description Shock Absorber
Parts Pack(s) None
Upper Mount Type Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL

Additional Information

Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
MSDS Sheet Number 01164
UPC 00048598557124
VMRS Code 016008003
UNSPSC 25172011

Part Interchanges

Monroe products are built for the road ahead. Since its founding in 1916, Monroe® has been known for its world-class solutions that are precision-engineered and meticulously tested with the specific vehicle's ride and handling profile in mind. As the leading supplier of Original Equipment ride control products to global automotive manufacturers, Monroe helped establish the benchmarks of handling and ride excellence in every stage of a vehicle's life. Whether you're upgrading your truck, converting its suspension, or restoring its original state, Monroe has got you covered. It offers the best-in-class shocks, strut assemblies, steering stabilizers, conversion kits, lift support, and many other suspension components that will help enhance your safety and driving experience.

Fits Vehicles

  • Freightliner XB Line (1995-2005, 2009-2015)
  • Freightliner XC (2002-2005)
