MONROE 37046 Part Description
Manufacturer
Product Description

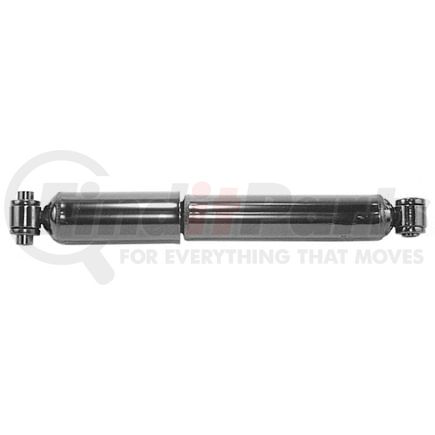

OESpectrum Suspension Shock Absorber
Features & Benefits
- EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
- CONTROL AND DURABILITY -- PTFE-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Twin Technology™ Active Control System delivers exceptional control under most driving conditions while isolating impact-related noise, vibration and harshness
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
- BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the DifferenceTM Guarantee
MONROE 37046 Specifications
Product Attributes
| Lower Mount Code | L2 |
| Upper Mount Code | LS39 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 15.75 IN |
| Dust Shield Material | Metal |
| Extended Length | 26.125 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing Mount - 11/16" Bushing ID X 1.9/16" Bushing OAL |
| Parts Pack(s) | None |
| Travel Length | 10.375 in |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 41.28MM Sleeve OAL |
| Compressed Length | 400 MM |
| Extended Length | 663.6 MM |
| Travel Length | 263.5 MM |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Lower Mount Type | Loop (Eyelet) Bushing |
| Lower Mount Code | L2 |
| Upper Mount Code | LS39 |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598155368 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 37046 Cross References
| Brand | Part Number |
|---|---|
| 37046ST | |
| AUTOZONE | TS34-32552B, MS34-32632B |
| AutoZone | MS3432632B, TS3432552B |
| Dodge | 3879297, 4026820, 4026821, 4039723, 4086415, 4086419, 4086420, 4086421, 4131320, 4186011, 4443468, 4443469, 4443471, 4443472, 4443473, 4443477, 4443480, 4443483, 52037503, 52037504, 52037505, 52037512, 52037513, 52037610 |
| GABRIEL | G63389 |
| KYB | 344086, KG5423 |
| KYB AMERICA LLC. | 344086 |
| MERITOR | MG60029 |
| Monroe Shocks & Struts | 210175 |
| NAPA Proformer | SH81342, SH81825 |
| NAPA Shocks | 37046 |
MONROE 37046 Fits Vehicles
- Dodge W200 Pickup (1972-1974)
- Dodge W100 Pickup (1972-1974)
- Plymouth Trailduster (1976-1981)
- Dodge W250 (1981-1993)
- Dodge W200 (1975-1980)
- Dodge W150 (1977-1993)
- Dodge W100 (1975-1989)
- Dodge Ramcharger (1976-1993)
