(888) 312-8812 Login SignupMONROE 32340 Monro-Matic Plus Suspension Shock Absorber
Tap to view 3 more
$6849
Limited availability at this price!
In Stock
Get it by Wednesday, Feb 4
MONROE 32340 Part Description
Manufacturer
Product Description

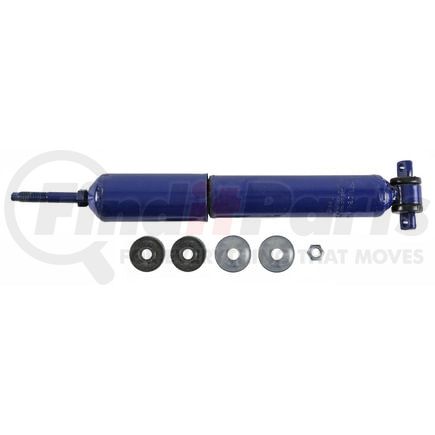

Monro-Matic Plus Suspension Shock Absorber
Features & Benefits
- CONSISTENT RIDE -- Velocity Proportional Valving (VPV) technology and all-weather fluid containing special additives to reduce friction and ensure smooth rod reaction and an overall smoother ride
- RELIABLE PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration
- RESTORES RIDE AND HANDLING -- Larger bore provides more efficient damping control to provide consistency and a smooth ride (where applicable)
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while banded piston and bronze reinforced guide provide durability
- GET MORE MILES FROM YOUR RIDE -- Designed and validated to meet OE spec and deliver consistent performance
MONROE 32340 Specifications
Product Attributes
| Lower Mount Code | XP7 |
| Upper Mount Code | S5 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 10.25 IN |
| Dust Shield Material | Metal |
| Extended Length | 15 in |
| Gas Charged | Yes |
| Lower Mount Type | Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center) |
| Parts Pack(s) | P01167 |
| Travel Length | 4.75 in |
| Upper Mount Type | Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch |
| Compressed Length | 260.3 MM |
| Extended Length | 381 MM |
| Travel Length | 120.6 MM |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Mounting Hole |
| Lower Mount Type | T-Bar |
| Lower Mount Code | XP7 |
| Upper Mount Code | S5 |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598021175 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 32340 Cross References
| Brand | Part Number |
|---|---|
| 32340MM, FT1Z5413046CA | |
| Chevrolet | 22064861, 22064862, 22064863, 22064864, 22064867, 22064868, 22400058, 22400365, 22400563, 88983817, 89038652, 89038653, 89038654 |
| FCS | 341599 |
| FCS AUTO PARTS | 341599 |
| GABRIEL | 58817, G63817, 61663, 81925, 81920 |
| GMC | 22064861, 22064862, 22064863, 22064864, 22064867, 22064868, 22400058, 22400365, 22400563, 88983817, 89038652, 89038653, 89038654 |
| KYB | KG54339, 344402, 565102, KG54340, 565101, 344383 |
| NAPA Response | 94235 |
| Sensen | 12140197 |
MONROE 32340 Fits Vehicles
- GMC Sierra 2500 (1999-2004)
- Chevrolet Silverado 2500 (1999-2004)
