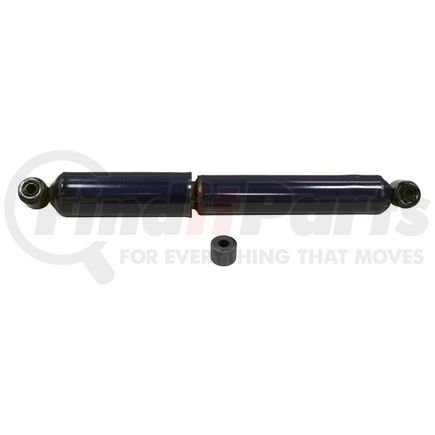

(888) 312-8812 Login SignupMONROE 32301 Monro-Matic Plus Suspension Shock Absorber
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MONROE 32301 Part Description
Manufacturer
Product Description
Monro-Matic Plus Suspension Shock Absorber
Features & Benefits
- CONSISTENT RIDE -- Velocity Proportional Valving (VPV) technology and all-weather fluid containing special additives to reduce friction and ensure smooth rod reaction and an overall smoother ride
- RELIABLE PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration
- RESTORES RIDE AND HANDLING -- Larger bore provides more efficient damping control to provide consistency and a smooth ride (where applicable)
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while banded piston and bronze reinforced guide provide durability
- GET MORE MILES FROM YOUR RIDE -- Designed and validated to meet OE spec and deliver consistent performance
MONROE 32301 Specifications
Product Attributes
| Lower Mount Code | LS24 |
| Upper Mount Code | LS24 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 11.875 IN |
| Dust Shield Material | Metal |
| Extended Length | 18.25 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.3/8" Sleeve OAL |
| Parts Pack(s) | P00816 |
| Travel Length | 6.375 in |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 34.93MM Sleeve OAL |
| Compressed Length | 301.6 MM |
| Extended Length | 463.5 MM |
| Travel Length | 161.9 MM |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598026736 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 32301 Cross References
| Brand | Part Number |
|---|---|
| 32301MM, FT1Z1761693FB | |
| AUTOZONE | TS33-33032B |
| AutoZone | TS3333032B |
| FCS | 342780 |
| FCS AUTO PARTS | 342780 |
| GABRIEL | G63906, 58908, G63371, G63355, 43093, 43062, G63306, G63908, 82006, 82003, 58355, G63347, 58347 |
| KYB | 565032, 344067, KG5416, KG5408, KG5420, 344072, KG5409, 565031, 565037, 344085, KG5419, KG5417 |
| MasterPro Shocks and Struts | GM133 |
| Monroe Shocks & Struts | 59571 |
| NAPA Proformer | SH82003 |
| NAPA Response | 94154 |
| Sensen | 12140668 |
MONROE 32301 Fits Vehicles
- GMC G1500 (1964-1966)
- Chevrolet C10 Panel (1967)
- Chevrolet C20 Panel (1967)
- GMC P15/P1500 Van (1968-1972)
- GMC Jimmy (1970-1972)
- GMC G1000 Series (1964-1966)
- GMC C25/C2500 Suburban (1968-1972)
- GMC C25/C2500 Pickup (1967-1972)
- GMC C15/C1500 Suburban (1968-1972)
- GMC C15/C1500 Pickup (1967-1972)
- Chevrolet P10 Van (1967-1972)
- Chevrolet P10 Series (1967)
- Chevrolet G10 Van (1964-1966)
- Chevrolet C20 Suburban (1967-1972)
- Chevrolet C20 Pickup (1967-1972)
- Chevrolet C10 Suburban (1967-1972)
- Chevrolet C10 Pickup (1967-1972)
- Chevrolet Blazer (1969-1972)
