MONROE 32293 Part Description
Manufacturer
Product Description

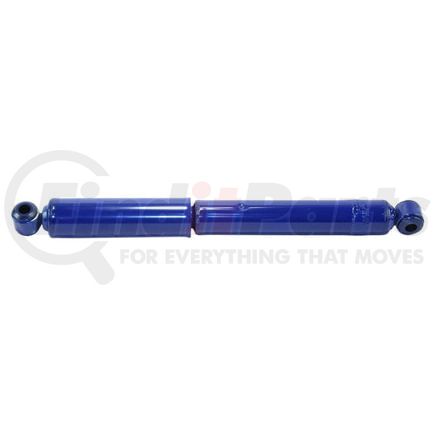

Monro-Matic Plus Suspension Shock Absorber
Features & Benefits
- CONSISTENT RIDE -- Velocity Proportional Valving (VPV) technology and all-weather fluid containing special additives to reduce friction and ensure smooth rod reaction and an overall smoother ride
- RELIABLE PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration
- RESTORES RIDE AND HANDLING -- Larger bore provides more efficient damping control to provide consistency and a smooth ride (where applicable)
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while banded piston and bronze reinforced guide provide durability
- GET MORE MILES FROM YOUR RIDE -- Designed and validated to meet OE spec and deliver consistent performance
MONROE 32293 Specifications
Product Attributes
| Lower Mount Code | L1 |
| Upper Mount Code | L1 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 11.97 IN |
| Dust Shield Material | Metal |
| Extended Length | 19.66 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Parts Pack(s) | None |
| Travel Length | 7.69 in |
| Upper Mount Type | Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Compressed Length | 304 MM |
| Extended Length | 499.4 MM |
| Travel Length | 195.3 MM |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598249258 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 32293 Cross References
| Brand | Part Number |
|---|---|
| 32293MM, FT1Z1761693AA | |
| ACDelco | 5201 |
| AUTOZONE | TS34-31902B |
| AutoZone | TS3431902B |
| Duralast | TS3431902B |
| FCS | 342129, 342484 |
| FCS AUTO PARTS | 342129, 342484 |
| GABRIEL | 61500, G63689 |
| KYB | KG5540, 344448, 344447, 553361, KG4161, 344055, 565085, 565065, 344428, 565052, KG5462, KG5538 |
| MasterPro Shocks and Struts | NS103 |
| Monroe Shocks & Struts | 59367 |
| NAPA Proformer | Sh81871 |
| NAPA Response | 94188 |
| Sensen | 12130155 |
| Toyota | 4851009100, 4851009101, 4851009103, 4851009110, 4851009111, 4851009113, 4851009270, 4851009280, 4851039665, 4851049080, 4851080012, 4851080025, 48510A9050, 48510A9080, 48510A9140, 48510A9160, 4851139905, 4851139906, 4851180030, 4851180046, 4851180083, 4853109030, 4853109031, 4853109032, 4853109040, 4853109041, 4853109043, 4853109050, 4853109051, 4853109053, 4853109090, 4853109100, 4853180694, 4853180695, 4853180696, 4853180697, 48531A9020, 48531A9030, 48531A9040, 4854109010, 4854109011, 4854109013, 4854109020, 4854109021, 4854109023, 4854109030, 4854139335, 4854139345, 48541A9010, 48541A9020 |
MONROE 32293 Fits Vehicles
- Toyota Tacoma (1995-2004)
