MONROE 32196 Part Description
Manufacturer
Product Description

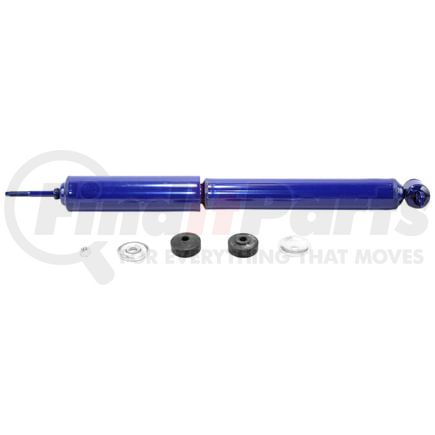

Monro-Matic Plus Suspension Shock Absorber
Features & Benefits
- CONSISTENT RIDE -- Velocity Proportional Valving (VPV) technology and all-weather fluid containing special additives to reduce friction and ensure smooth rod reaction and an overall smoother ride
- RELIABLE PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration
- RESTORES RIDE AND HANDLING -- Larger bore provides more efficient damping control to provide consistency and a smooth ride (where applicable)
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while banded piston and bronze reinforced guide provide durability
- GET MORE MILES FROM YOUR RIDE -- Designed and validated to meet OE spec and deliver consistent performance
MONROE 32196 Specifications
Product Attributes
| Lower Mount Code | XP7 |
| Upper Mount Code | S4 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 12.5 IN |
| Dust Shield Material | Metal |
| Extended Length | 19.875 in |
| Gas Charged | Yes |
| Lower Mount Type | Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center) |
| Parts Pack(s) | P01136 |
| Travel Length | 7.375 in |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Compressed Length | 317.5 MM |
| Extended Length | 504.8 MM |
| Travel Length | 187.3 MM |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Mounting Hole |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598024329 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 32196 Part Interchanges
| Brand | Part Number |
|---|---|
| Jeep | 4886533AB, 4886533AC, 4886533AE, 4886533AF, 4886533AG, 4886533AI, 4897567AA, 5015547AA, 5114318AA, 5114318AB, 5174153AA, 52060450AA, 52087835, 52087835AB, 52088651, 52088651AD, 52088651AH, 52088651AJ, 56052342AA, 56052342AB, 83500312, 83500313, 83500314, 83500315, 83500316, 83500317, 83500326, 83501159, 83501160, 83501161, 83501188, 83502509, 83502510, 83502511, 83502512, 83502513, 83502514, 83502515, 83502546, 83503448, 83503449, 83503450, 83504211, 83504212 |
| KYB | 344088, 565020, 344435, KG5465, 565053, 565096, KG5464, KG54323 |
| AutoZone | TS34-32031B, TS34-31861B, TS3431861B, TS3432031B |
| Gabriel | 81548, G63721, 61615, G63424, 61535 |
| FCS Auto Parts | 341627 |
| ACDelco | 52034, 530159 |
| NAPA Response | 94029 |
| FCS | 341627 |
| Sensen | 12130315 |
| Duralast | TS3431861B |
| MasterPro Shocks and Struts | JP106 |
| Monroe Shocks & Struts | 59014, 59322 |
| NAPA Proformer | SH81548 |
MONROE 32196 Fits Vehicles
- Jeep TJ (1997-2006)
- Jeep Wrangler (1997-2006)
- Jeep Wagoneer (1984-1990)
- Jeep Comanche (1986-1990)
- Jeep Cherokee (1984-1990)
MONROE 32196 Cross References
We have 14 alternatives for the 32196 by MONROE:
