MONROE 32022 Part Description
Manufacturer
Product Description

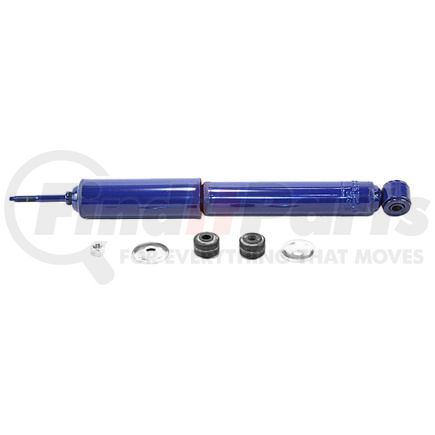

Monro-Matic Plus Suspension Shock Absorber
Features & Benefits
- CONSISTENT RIDE -- Velocity Proportional Valving (VPV) technology and all-weather fluid containing special additives to reduce friction and ensure smooth rod reaction and an overall smoother ride
- RELIABLE PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration
- RESTORES RIDE AND HANDLING -- Larger bore provides more efficient damping control to provide consistency and a smooth ride (where applicable)
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while banded piston and bronze reinforced guide provide durability
- GET MORE MILES FROM YOUR RIDE -- Designed and validated to meet OE spec and deliver consistent performance
MONROE 32022 Specifications
Product Attributes
| Lower Mount Code | LS12 |
| Upper Mount Code | S4 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 9.875 IN |
| Dust Shield Material | Metal |
| Extended Length | 15.75 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 7/16" Sleeve ID X 1.1/4" Sleeve OAL |
| Parts Pack(s) | P01134 |
| Travel Length | 5.875 in |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Compressed Length | 250.8 MM |
| Extended Length | 400 MM |
| Travel Length | 149.2 MM |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS12 |
| Upper Mount Code | S4 |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
Additional Information
| MSDS Sheet Number | 01168 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598024077 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 32022 Cross References
| Brand | Part Number |
|---|---|
| 32022MM, FS7Z5462901AB | |
| AUTOZONE | TS33-33981B |
| AutoZone | TS3333981B |
| Duralast | TS3333981B |
| FCS | 346052 |
| FCS AUTO PARTS | 346052 |
| GABRIEL | 82090 |
| KYB | KG4511, KG4509, KG4510 |
| KYB AMERICA LLC. | KG4509, KG4510 |
| MasterPro Shocks and Struts | DG116 |
| Monroe Shocks & Struts | 56002 |
| NAPA | SH82090 |
| NAPA Proformer | SH82090 |
| NAPA Response | 94102 |
| Sensen | 12130730 |
MONROE 32022 Fits Vehicles
- Plymouth Belvedere II (1965-1967)
- Plymouth Superbird (1970)
- Plymouth Savoy (1962-1964)
- Plymouth Satellite (1965-1972)
- Plymouth Road Runner (1968-1972)
- Plymouth Fury (1962-1964)
- Plymouth Cuda (1970-1974)
- Plymouth Belvedere (1962-1970)
- Plymouth Barracuda (1964-1974)
- Dodge Polara (1962-1964)
- Dodge Lancer (1961-1962)
- Dodge Coronet (1965-1972)
- Dodge Charger (1966-1972)
- Dodge Challenger (1970-1974)
- Dodge 440 (1963-1964)
- Dodge 330 (1963-1964)
- Plymouth Duster (1970-1976)
- Dodge Dart (1962-1976)
