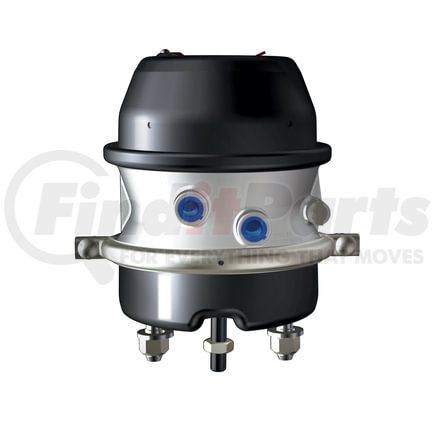

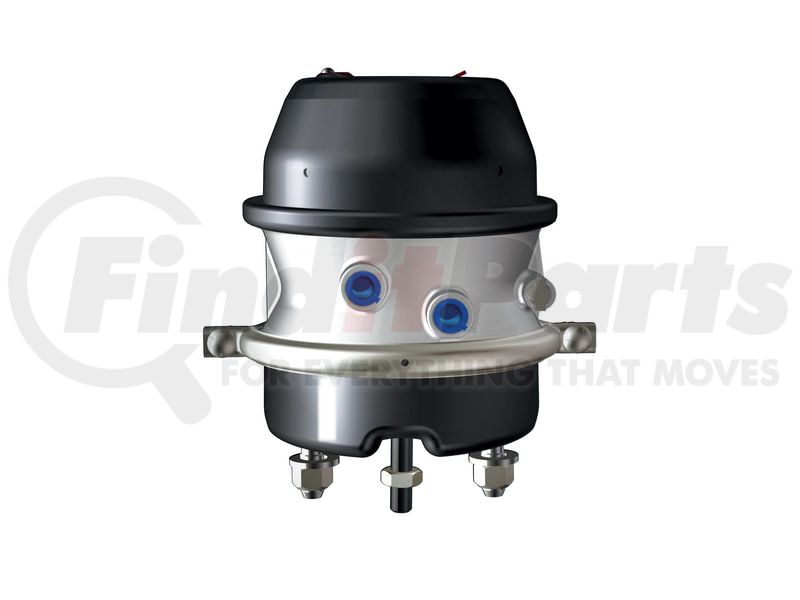

MGM Brakes 3443053 - Air Brake Chamber - Combination, with Welded NPC
- Part Number
- 3443053
- Manufacturer
- MGM BRAKES
- Description
-
Air Brake Chamber - Combination, with Welded NPC
details
$23799
15 day lead time
Pay over 3-12 months with
. Learn more
. Learn more
MGM BRAKES part description
Combination
Product Description
Double Diaphragm Brake Chamber
Features & Benefits
- Tamper Resistant
- Externally Stored Release Bolt
- Epoxy-Coated Head
- 360 Aluminum Center Case
- Long Life Power Spring
- Weatherseal Plug
- Heavy-Duty Nylon Reinforced Diaphragm (Neoprene Optional)
- Breather Tube
- Composite Guide
Product Attributes
| Chamber Type | Double Diaphragm Brake |
| Diaphragm Diameter | Rubber IN |
| Heavy Duty | Heavy Duty |
| Mounting Bolt Length | 1.540 IN |
| Mounting Bolt Thread | 5/8-11 |
| Port Size | 3/8-18 NPTF |
| Spring Size | 30 |
| Service Size | 30 |
| Stroke | 2.50 IN |
| Welded Mounting Bolts | Welded Mounting Bolts |
| UNIT | Production |
Additional Information
| Country of Origin (Primary) | US |
| 21 | |
| VMRS Code | 013004000 |
