MSRP: $198.82
$16399
Limited availability at this price!
In Stock

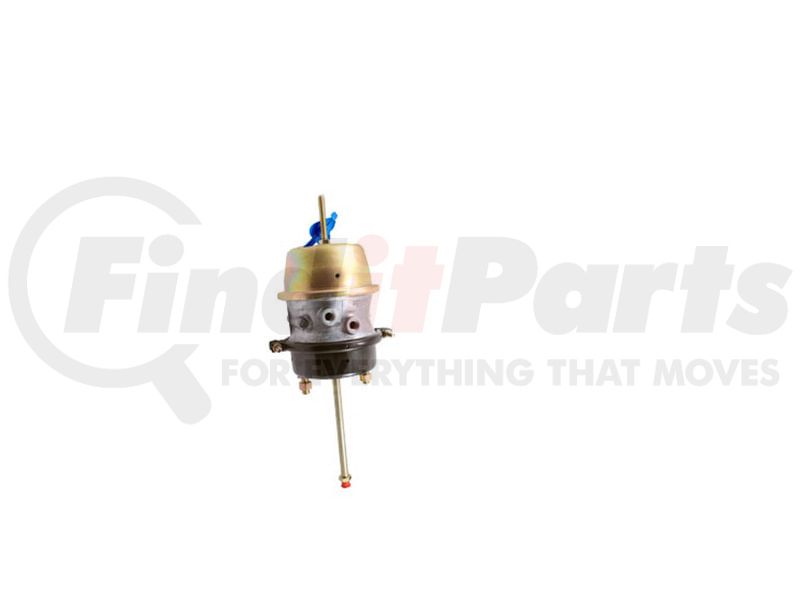

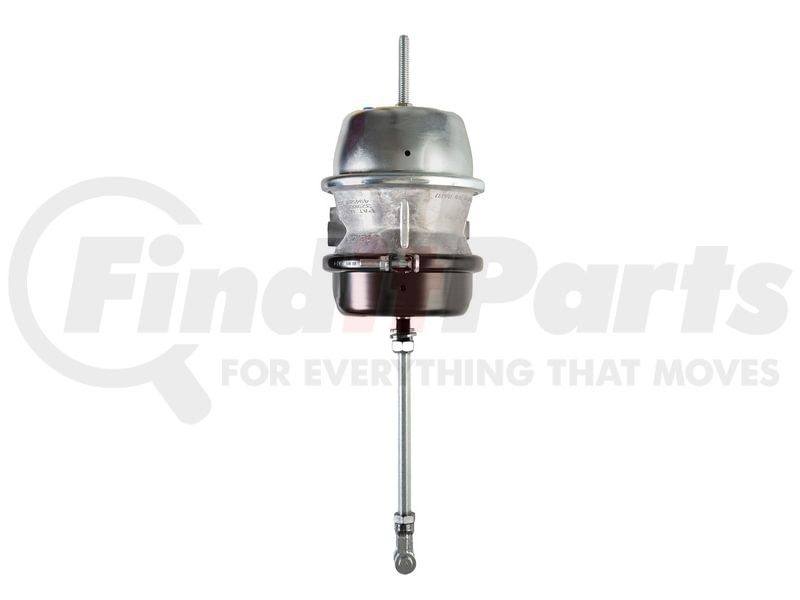

Brake Chamber GoldSeal 2424 Long Stroke
Combination - Long Stroke - Size 2424
Equip your vehicle with a high-quality Haldex GoldSeal air brake spring brake. This product is the only truly sealed double diaphragm spring brake specifically designed for heavy duty applications.
| Air Port Position | 90° |
| Air Port Thread Diameter | 3/8-18 NPTF |
| Bracket to End of Spring Housing Length | 9.3 in. |
| Finish | Powder Coated |
| Freight Class | 70 |
| Grade | 5 |
| Housing Material | 9 Gauge Steel |
| Maximum Pressure | 150 PSI |
| Piggyback Length | 6.8 in. |
| Push Rod Diameter | 5/8-18 UNF |
| Push Rod Length | 10 in. |
| Series | GoldSeal |
| Service Chamber Size | 24/24 |
| Service Clampband Position | 0° |
| Service Clampband Size | 9.4 in. |
| Spring Housing Flange Size | 7.5 in. |
| Stroke Length | 2.5 in. |
| Stroke Type | Long |
| Stud Distance | 4.75 in. |
| Stud Length | 1.5 in. |
| Stud Type | 5/8-11 UNC |
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8412310080 |
| Harmonized Tariff Code (HTS) | 8412310080 |
| Remanufactured Part | N |
| Warranty Distance | 100000 |
| Warranty Distance UOM | MI |
| Warranty Special | See Haldex Aftermarket Product warranty Policy (L20221W).pdf |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00767653297934 |
| VMRS Code | 013004027 |
| Brand | Part Number |
|---|---|
| N/A | E-GC-2424-LS, B6080, 15440, 2424T, 5007130, 810336, 1392424002, M10WR242-523, 3199758, 004202, 24ES24SB-LS, 61170126, 19QE242P1, 6814201718, 12369, RBPBTS-2424, 3128057, 67634, 926066, BTS-2424LS |
| Euclid | E-GC-2424-LS, E-GC2424-LS |
| Haldex | B6080 |
| Midland | 15440, KSD2424EC-800NN, KSD2424EP, MA15440, N42424A |
| Prior | 2424T |
| Bendix | 5007130, 800829, K026559 |
| Eaton | 810336 |
| Anchorloc | 1392424002, 1392424003, 1392424004, 1392424005, 1392424006, 1392424008, 1392424009, 1392424012, 1392424014, 1392424016, 1392424017, 1392424018, 1392424019, 1392424020, 1392424030, 1392424040, 161098, 162724, 163106-2, 163107, 163230, 163260V1, 163310, 163515-1, 163515-2, 163515-3, 163515-4, 163515-5, 163515-6, 163804, 163839, 164123, 164124, 164126, 164159, 164306, 164319, 164321, 164323, 164424, 164428, 164501, 164663, 164811, 164814, 164865, 164866, 164867, 164868, 164869, 164905, 164906, 164910, 164911, 164933, 164939, 164942, 164944, 165021, 165039, 165040, 165041, 165042, 165065, 165071, 165075, 165077, 165081, 165108, 165112, 165120, 165121, 165122, 165157, 165186, 165186-2, 165186-L, 165310, 165327, 165328, 165329, 165330, 165434, 165435, 165436, 165449, 165612, 165732, 165784, 165919, 165920, 166404, 2424008, 2424009, 2424GC-LS, 52424008, B2424GC-LS, GC2424L |
| Dana Commercial Vehicle Service Parts | M10WR242-523, P-67634 |
| Oshkosh | 3199758 |
| Hendrickson | 004202, C-30680, C-30680-1, S-26844-1, S-26844-2, S-26845-1, S-26845-2 |
| Navistar | 24ES24SB-LS |
| Thomas Built Buses | 61170126, 61170127 |
| Mack | 19QE242P1, 19QE242P2, 19QE242P3, 19QE242P4, 19QE242P5, 19QE242P6, 19QE3141P1, 19QE3141P2, 19QE4103M10, 19QE4103M11, 19QE4103M12, 19QE4103M13, 19QE4103M2, 19QE4103M3, 19QE4103M4, 19QE4103M5, 19QE4103M6, 19QE4103M9, 19QE483P1, 19QE483P10, 19QE483P11, 19QE483P12, 19QE483P13, 19QE483P14, 19QE483P15, 19QE483P16, 19QE483P2, 19QE483P3, 19QE483P4, 19QE483P5, 19QE483P6, 19QE483P7, 19QE483P8, 19QE483P9 |
| Freightliner | 6814201718, GC165436, HDX1392424016, HDX161098, HDX164501, HDX164811, HDX164866, HDX164867, HDX164868, HDX164869, HDX164910, HDX164911, HDX164939, HDX164942, HDX165021, HDX165120, HDX165157, HDX165186, HDX165310, HDX165327, HDX165328, HDX165329, HDX165330, HDX165434, HDX165449, HDX165663, HDX165784, HDX1658867, HDX165910, HDX165933, HDX165939, HDX165942, HDX165944 |
| Di-Pro Inc. | 12369 |
| Great Dane Trailers | RBPBTS-2424 |
| MGM Brakes | 3128057, 3426051, 3427051, 3538051 |
| NAPA | 67634 |
| Wagner | 926066 |
| RANGER BRAKE | BTS-2424LS |
| EUCLID | E-GC-2424-LS, E-GC2424-LS |
| MIDLAND | 15440, KSD2424EC-800NN, KSD2424EP, MA15440, N42424A |
| PRIOR | 2424T |
| BENDIX | 5007130, 800829, K026559 |
| ANCHORLOK | 1392424002, 1392424003, 1392424004, 1392424005, 1392424006, 1392424008, 1392424009, 1392424012, 1392424014, 1392424016, 1392424017, 1392424018, 1392424019, 1392424020, 1392424030, 1392424040, 161098, 162724, 163106-2, 163107, 163230, 163260V1, 163310, 163515-1, 163515-2, 163515-3, 163515-4, 163515-5, 163515-6, 163804, 163839, 164123, 164124, 164126, 164159, 164306, 164319, 164321, 164323, 164424, 164428, 164501, 164663, 164811, 164814, 164865, 164866, 164867, 164868, 164869, 164905, 164906, 164910, 164911, 164933, 164939, 164942, 164944, 165021, 165039, 165040, 165041, 165042, 165065, 165071, 165075, 165077, 165081, 165108, 165112, 165120, 165121, 165122, 165157, 165186, 165186-2, 165186-L, 165310, 165327, 165328, 165329, 165330, 165434, 165435, 165436, 165449, 165612, 165732, 165784, 165919, 165920, 166404, 2424008, 2424009, 2424GC-LS, 52424008, B2424GC-LS, GC2424L |
| DANA | M10WR242-523, P-67634 |
| HENDRICKSON | 004202, C-30680, C-30680-1, S-26844-1, S-26844-2, S-26845-1, S-26845-2 |
| NAVISTAR | 24ES24SB-LS |
| FREIGHTLINER | 6814201718, HDX164865, HDX165435, HDX165865, HDX165866, GC165436, HDX1392424016, HDX161098, HDX164501, HDX164811, HDX164866, HDX164867, HDX164868, HDX164869, HDX164910, HDX164911, HDX164939, HDX164942, HDX165021, HDX165120, HDX165157, HDX165186, HDX165310, HDX165327, HDX165328, HDX165329, HDX165330, HDX165434, HDX165449, HDX165663, HDX165784, HDX1658867, HDX165910, HDX165933, HDX165939, HDX165942, HDX165944 |
| DI-PRO | 12369 |
| WAGNER | 926066 |
| MACK | 19QE242P2, 19QE242P3, 19QE242P5, 19QE3141P1, 19QE4103M11, 19QE4103M12, 19QE4103M4, 19QE4103M5, 19QE483P1, 19QE483P12, 19QE483P13, 19QE483P14, 19QE483P16, 19QE483P4, 19QE483P6, 19QE483P7 |
We have 5 alternatives for the GC2424L by HALDEX:
