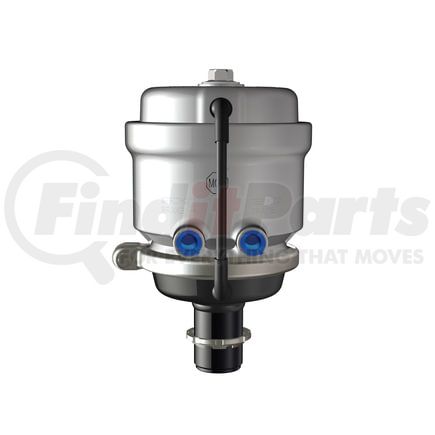

MGM Brakes MJW1216AT052 - Air Brake Chamber - Combination, 2.25" Meritor
- Part Number
- MJW1216AT052
- Manufacturer
- MGM BRAKES
- Description
-
Air Brake Chamber - Combination, 2.25" Meritor
details
$74849
MSRP: $770.10
Save: $21.61
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MGM BRAKES part description
Specifications
Aftermarket Unit
Port Size: 3/8-18 NPTF
Tube Length (in.): 2.250 (MERITOR)
Stroke (in.): 1.75
Service Size: 12
Spring Size: 16
Features & Benefits
- Wide Choice Tube Lengths
- Lightweight, Rugged Aluminum Hosing
- Epoxy-Coated Power Spring
- External Breather Tube
- Integral Release Bolt
- Polymer Push-Rod Guides
- Molded Nitrile Rubber Push-Rod Air Seal
- Low Friction Piston and Guide
- Heavy Duty Nylon Reinforced Diaphragms
Model: MJW1216AT
Technical Data
| Stroke | 1.75" (44.5 mm) |
| Weight lb (kg)* | 12.50 lb (5.7 kg) |
| A | 7.89" (200.4 mm) |
| B | 5.83" (148.1 mm) |
| C | 5.70" (144.8 mm) |
| D | 6.44" (163.6 mm) |
| E | 1 3/4" - 12 UNC |
| Inlets | 3/8" - 18 NPTF |
| *NOTE: | Weight will vary |
Replacement Parts
| 1 | Kit -Breather Tube | 9081001 |
| 2 | Kit -Nuts & Bolts | 9003002 |
| 3 | Clamp Band Assembly | 8216012 |
| 4 | Kit -Diaphragm/Push Rod | See Item 10 Kit |
| 5 | Diagphragm | See Item 10 Kit |
| 6 | Rush Rod | See Item 10 Kit |
| 7 | Kit -Wedge Boot | 9004005 |
| 8 | Spanner Nut | 8034001 |
| 9 | Wedge Guide (Meritor) | 8024006 |
| 10 | Kit -NP Chamber - 2.25" Meritor | 9015247 |
| 10 | Kit -NP Chamber - 2.25" Bendix | 9015254 |
| 10 | Kit -NP Chamber - 2.85" Meritor | 9015248 |
| 10 | Kit -NP Chamber - 2.85" Bendix | 9015255 |
| 10 | Kit -NP Chamber - 4.10" Meritor | 9015249 |
| 10 | Kit -NP Chamber - 4.10" Bendix | 9015256 |
| 10 | Kit -NP Chamber - 6.10" Meritor | 9015250 |
| 10 | Kit -NP Chamber - 6.10" Bendix | 9015257 |
Product Description
Wedge Brake Chamber
Features & Benefits
- Multiple Tube Lengths
- Rugged Aluminum Hosing
- Epoxy-Coated Power Spring
- Breather Tube
- Integral Release Bolt
- Polymer Push-Rod Guide
- Molded Nitrile Rubber Push-Rod Air Seal
- Low Friction Piston/Guide
- Heavy Duty Nylon Reinforced Diaphragm
Product Attributes
| Breather Tube | Breather Tube |
| Chamber Type | Wedge Brake |
| Diaphragm Diameter | Rubber IN |
| Mounting Bolt Length | 1.519 IN |
| Mounting Bolt Thread | 1 3/4-12 UN-2A |
| Port Size | 3/8-18 NPTF |
| Spring Size | 16 |
| Service Size | 12 |
| Stroke | 1.75 IN |
| Tube Length (MERITOR) | 2.250 IN |
| UNIT | Aftermarket |
Additional Information
| Country of Origin (Primary) | US |
| 2 | |
| VMRS Code | 013010034 |
