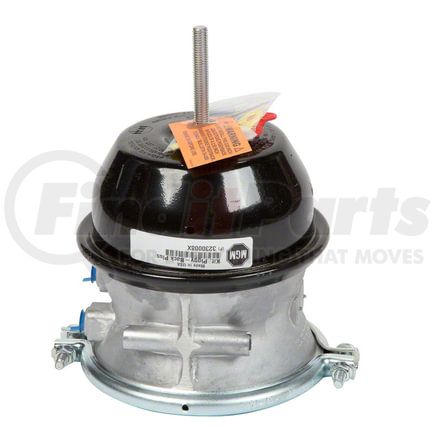

MGM Brakes 3230008 - Air Brake Spring Brake - 3230 Series, Piggyback Plus Kit, Model TR3030LP3
- Part Number
- 3230008
- Manufacturer
- MGM BRAKES
- Description
-
Air Brake Spring Brake - 3230 Series, Piggyback Plus Kit, Model TR3030LP3
details
$15949
MSRP: $224.12
Save: $64.63
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MGM BRAKES part description
Specifications
Aftermarket Unit
Port Size: 3/8-18 NPTF
Stroke (in.): 3.00
Service Size: 30
Spring Size: 30
Features & Benefits
- Tamper Resistant Design
- "Long Life" Power Spring
- Center Hole Diaphragm
- Epoxy-Coated Head
- Square Port Bosses (Long Stroke Identification)
- Weatherseal Plug
- Heavy-Duty Nylon Reinforced Diaphragm
- Heavy-Duty Nylon Reinforced Neoprene Diaphragm (Optional)
- Externally Stored Release Bolt
- 3" (76.2 mm) Long Stroke
- Composite Guide -Corrosion Fighter Technology
Technical Data
| Stroke | 3.00" (76.2 mm) |
| Weight lb (kg) Single | 11.5 lb (5.2 kg) |
| B | 7.61" (193.3 mm) |
| C | 8.32" (211.3 mm) |
| D | 8.21" (208.5 mm) |
| Inlets | 3/8" - 18 NPTF |
Replacement Parts
| 1 | Kit -NP Chamber | N/A |
| 2 | Kit -Nuts & Bolts | 9003001 |
| 3 | Clamp Band Assembly | 8216045 |
| 4 | Diaphragm | 8017830 |
| 5 | Kit -Push-Rod Assembly SAE | N/A |
| 5a | Kit -Push-Rod Assembly METRIC | N/A |
| 6 | Return Spring | N/A |
| 7 | Kit -Center Hole Shield | N/A |
| 8 | NP Chamber Assembly | N/A |
| 9 | Kit -Nuts & Washers SAE | N/A |
| 9a | Kit -Nuts & Washers METRIC | N/A |
| 10 | Hex Nut -Yoke SAE | N/A |
| 10a | Hex Nut -Yoke METRIC | N/A |
| 11 | Kit -Weatherseal Plug | 9019005 |
| 12 | Kit -Release Bolt | 9007003 |
Product Description
Piggyback Plus Kit
Features & Benefits
- Tamper Resistant
- Long Life Power Spring
- Center Hole Diaphragm & Shield
- Epoxy-Coated Head, NPC/Lower Push-Rod, Return Spring
- HD NPC
- Polymer Guide
- HD Reinforced Diaphragm (or Neoprene)
- Stroke Alert
- Molded Rubber Seal
- Composite Guide
Product Attributes
| Chamber Type | Piggyback Plus Kit |
| Diaphragm Diameter | Rubber IN |
| Mounting Bolt Length | N/A IN |
| Mounting Bolt Thread | N/A |
| Port Size | 3/8-18 NPTF |
| Spring Size | 30 |
| Service Size | 30 |
| Stroke | 3.00 IN |
| UNIT | Aftermarket |
Additional Information
| Country of Origin (Primary) | US |
| 2 | |
| VMRS Code | 013004001 |
MGM BRAKES 3230008 Cross Reference
We have 4 alternatives for the 3230008 by MGM BRAKES:
