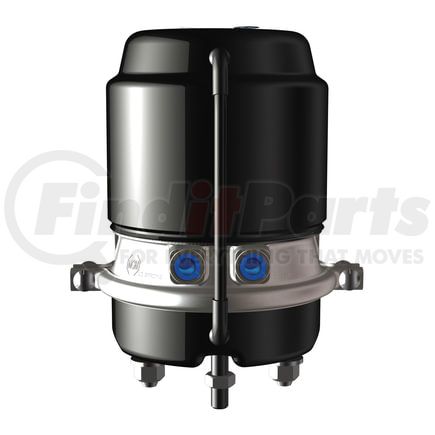

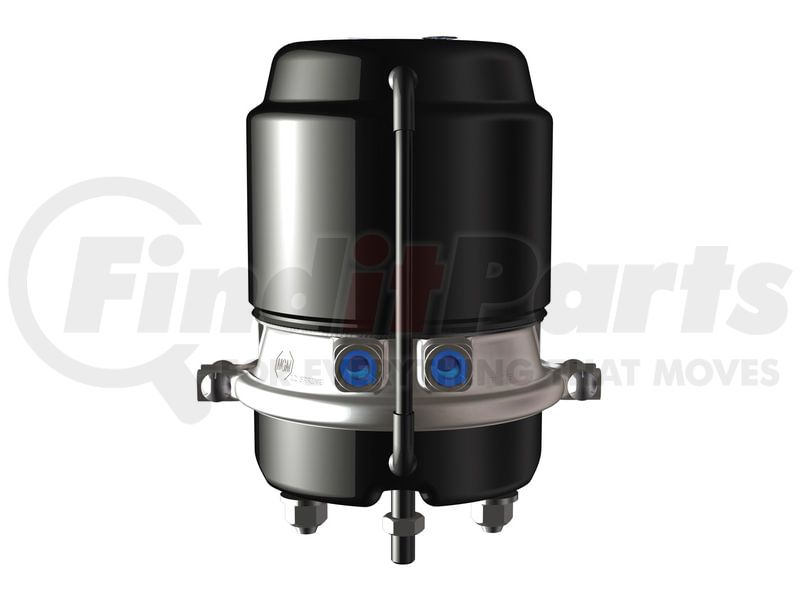

(888) 312-8812 Login SignupMGM BRAKES MJS3628ET060 Air Brake Chamber - Combination
$56049
2 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.
MGM BRAKES MJS3628ET060 Part Description
Manufacturer
Product Description
Piston Brake Chamber
Features & Benefits
- Dual-chamber design supports both service brake and spring brake functions
- Diaphragm movement converts air pressure into pushrod force
- Housing construction contains pressurized air during brake application cycles
- Pushrod output connects directly to the slack adjuster for brake actuation
MGM Brakes Air Brake Chamber
Brake application at the wheel end begins with air pressure, and the MGM Brakes Air Brake Chamber converts that pressure into mechanical force. Inside the chamber, compressed air pushes against a diaphragm, which moves the pushrod to apply braking force. Combination chambers handle both service and spring brake functions within one unit. This setup allows braking to occur during normal operation and also provides parking or emergency braking capability. Force transfer remains consistent with the MGM Brakes MJS3628ET060 managing air-to-mechanical conversion.
MGM BRAKES MJS3628ET060 Specifications
Product Attributes
| Artic Assembly | Artic Assembly |
| Breather Tube | Breather Tube |
| Chamber Type | Piston Brake |
| Diaphragm Diameter | Rubber IN |
| Mounting Bolt Length | 1.660 IN |
| Mounting Bolt Thread | 5/8-11 |
| Port Size | 3/8-18 NPTF |
| Spring Size | 28 |
| Service Size | 36 |
| Stroke | 3.00 IN |
| Welded Yoke | Threaded Yoke |
| UNIT | Production |
| Diaphragm | Rubber |
| Push Rod Length - with yoke | 10.87 |
| Rod Diameter | M16 |
Additional Information
| Country of Origin (Primary) | US |
| 2 | |
| VMRS Code | 013004000 |
