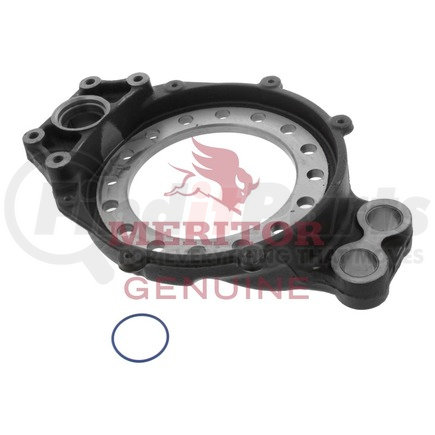

(888) 312-8812 Login SignupMERITOR A3211P3448 Air Brake Spider, 8.25 in. Bolt Circle Diameter, 2.03 in. Holes Diameter, 6.75 in. Pilot Diameter
Tap to view 5 more
SHIPS TODAY
MSRP: $1,107.40
$63599
Save $471.41
Limited availability at this price!
In Stock
Get it by Monday, Aug 24
MERITOR A3211P3448 Part Description
Manufacturer
Product Description
Air Brake, Spider Assembly
Features & Benefits
- Mounting holes measure 2.03 in. in diameter for axle attachment
- Heavy cast metal structure forms the base of the drum brake assembly
- Spider frame holds brake components around the axle housing
- Machined mounting surfaces align with drum brake backing hardware
- Structural metal casting surrounds the camshaft and brake shoe mounts
Meritor Air Brake Spider
The Meritor Air Brake Spider forms the structural mounting point that holds drum brake components in position along the axle. Brake shoes, camshafts, and return springs attach to this component so the drum brake assembly stays aligned during operation. It anchors these braking elements to the axle housing while allowing the camshaft to spread the brake shoes against the drum surface. This structure supports the mechanical relationship between moving brake components and the fixed axle housing. The Meritor A3211P3448 provides the mounting framework that keeps drum brake components arranged around the axle.
| VMRS Code | 013-002-105 |
MERITOR A3211P3448 Specifications
Product Attributes
| Bolt Circles Diameter | 8.25 in. |
| Brake Type | Q |
| Brand | Meritor |
| Casting Number | 4211-Z-3406 |
| Clocking Sequence Of Mounting Holes (degrees) | 0, 22.5, 45, 67.5, 90, 112.5, 135, 157.5, 180, 202.5, 225, 247, 270, 292.5, 315, 337.5 |
| Holes Diameter | 2.03 in. |
| Mounting Holes | 16 |
| Offset | 1.75 in. |
| Pallet Quantity | 48 |
| Pilot Diameter | 6.75 in. |
| Weight | 18.10 |
| Bolt Circle Diameter | 8.25 in. |
MERITOR A3211P3448 Cross References
| Brand | Part Number |
|---|---|
| TDAA3211P3448, KM5240, 1114370, 12545115, 12546115, 2030, 4009231, 761305033, 8235A3211P3448, A3211P3448RI, ATIA3211P3448, HRA3211P3448, L1664, MERA3211P3448, RIA3211P3448, TDAA23211P3448, TDAA53211P3448 | |
| Transit Parts | TP8603 |
