(888) 312-8812 Login SignupMSRP: $161.14
$8299
Limited availability at this price!
In Stock

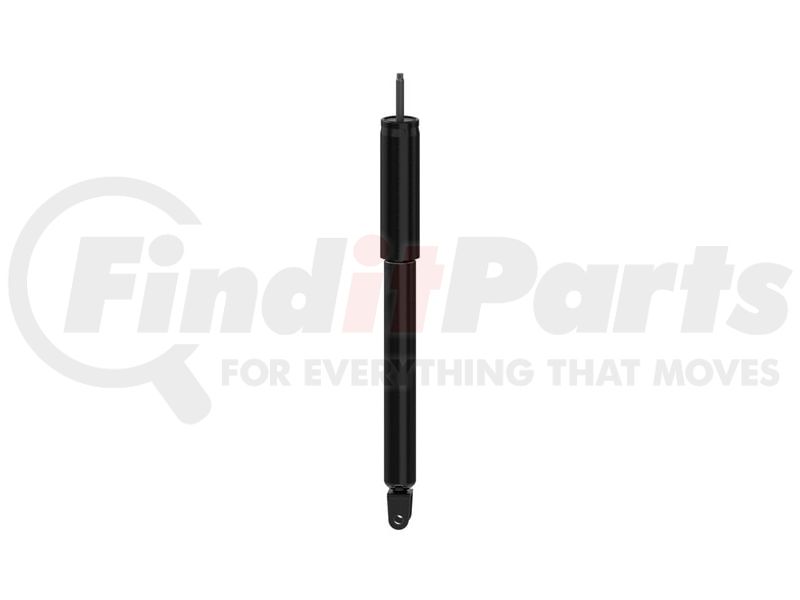

Reflex Suspension Shock Absorber
| Lower Mount Code | S5 |
| Upper Mount Code | CLEV |
| Dust Shield Included | Yes |
| Includes Bump Stop | Yes |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 18.64 IN |
| Extended Length | 24.8 in |
| Gas Charged | Yes |
| Lower Mount Type | Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch |
| Parts Pack(s) | P00590,P01637 |
| Travel Length | 6.16 in |
| Upper Mount Type | Clevis Bracket Mount |
| Compressed Length | 473.5 MM |
| Extended Length | 629.9 MM |
| Travel Length | 156.5 MM |
| Shock Absorber Rod End Measuring Point | Center of Mounting Hole |
| Shock Absorber Body End Measuring Point | Base of Stem |
| Lower Mount Type | Stem |
| Lower Mount Code | S5 |
| Upper Mount Type | Clevis Bracket Mount |
| Upper Mount Code | CLEV |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| MSDS Sheet Number | 01168 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598140173 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
