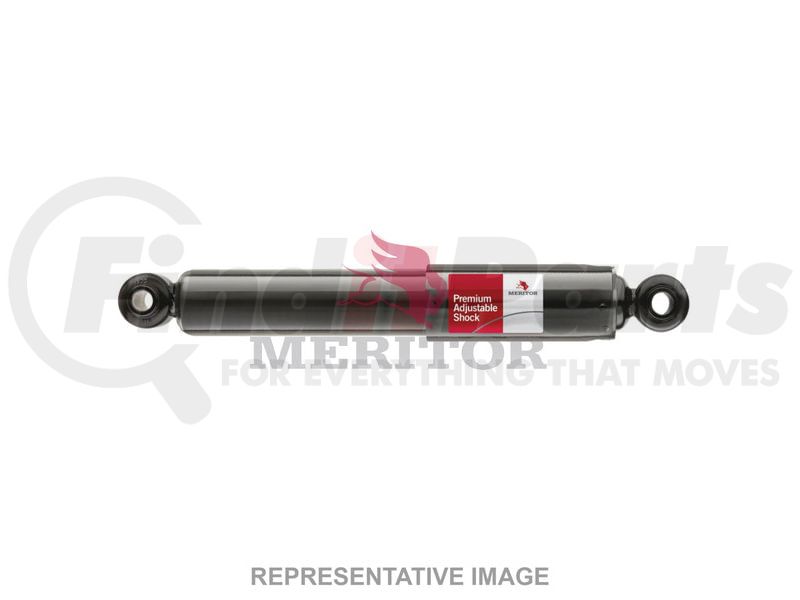

(888) 312-8812 Login SignupMERITOR M89436 Suspension Shock Absorber, Premium Heavy Duty Adjustable, 2.38 in. Body Diameter, 135.4 mm Shock Stroke
Tap to view 1 more
MSRP: $155.40
$10349
Save $51.91
Limited availability at this price!
In Stock
Get it by Friday, Aug 7
MERITOR M89436 Part Description
Manufacturer
Product Description
Shock Absorber
Features & Benefits
- Shock action calms chassis movement after bumps, dips, and road transitions
- Stroke range provides 5.33 inches of travel for selected suspension positions
- Measures 17.23 inches extended for defined shock placement
- Allows ride control adjustment through a heavy-duty shock design
- Enhances tire contact by limiting excess suspension rebound
Meritor Suspension Shock Absorber
Because every route has its share of seams, dips, and yard approaches, the Meritor Suspension Shock Absorber helps control how the chassis settles after movement enters the suspension. Its heavy-duty adjustable build includes a 17.23-inch extended length and 5.33-inch stroke for selected suspension positions. Adjustable damping gives the vehicle another way to manage ride feel without changing the full suspension setup. The Meritor M89436 is suited for trucks that need smoother motion control across daily commercial use.
| Body Diameter (in.) | 2.38 in. |
| Body Diameter (mm) | 60.5 mm |
| Bore (in.) | 1.63 in. |
| Bore (mm) | 41 mm |
| Collapsed Length (in.) | 11.9 in. |
| Collapsed Length (mm) | 302.2 mm |
| Extended Length (in.) | 17.23 in. |
| Extended Length (mm) | 437.6 mm |
| Family Code | 41FCMD-PA |
| Hydraulic Stop | Yes |
| Stroke | 135.4 mm |
| Stroke Inch | 5.33 in. |
| Type | Premium Heavy Duty Adjustable |
| VMRS Code | 016-008-003 |
Meritor Shock Absorber
Meritor shock absorber is designed for exceptional day-in and day-out performance for trucks, trailers, and other types of heavy duty commercial vehicles. This shock provides better ride comfort, operational control, and cargo protection than what the competition has to offer.
Features & Benefits
- Advanced gas cell system reduces oil cavitation from heavy use, maximizing damping efficiency and extending shock life
- Hardened piston rod with polished chrome coating for superior corrosion resistance
- Made of premium materials to ensure reliable performance even under extreme conditions
- Shock action calms chassis movement after bumps, dips, and road transitions
- Enhances tire contact by limiting excess suspension rebound
MERITOR M89436 Specifications
Product Attributes
| Body Diameter (in.) | 2.38 in. |
| Body Diameter (mm) | 60.5 mm |
| Bore (in.) | 1.63 in. |
| Bore (MM) | 41 mm |
| Brand | Meritor |
| Collapsed Length (in.) | 11.9 in. |
| Collapsed Length (mm) | 302.2 mm |
| Extended Length (in.) | 17.23 in. |
| Extended Length (mm) | 437.6 mm |
| Family Code | 41FCMD-PA |
| Hydraulic Stop | Yes |
| Pallet Quantity | 105 |
| Stroke | 135.4 mm |
| Stroke Inch | 5.33 in. |
| Type | Premium Heavy Duty Adjustable |
| Weight | 6.35 |
| Body Diameter | 2.38 in. |
| Compressed Length | 11.9 in. |
| Extended Length | 17.23 in. |
| Shock Absorber Bore Size | 1.63 in. |
| Shock Stroke | 135.4 mm |
| Type | Premium Heavy Duty Adjustable |
MERITOR M89436 Cross References
| Brand | Part Number |
|---|---|
| TDAM89436, A16135, A1667, A20002, AR718CHD, HTA20001, HTA20002, NEW90045299, S20126, SAF90044162, UCD006216001, UCD62161 | |
| AUTOMANN | A89436 |
| DELCO | 508-26, 508-9 |
| FLEETRITE | AMS600104, AMS650416, AMS650419, AMS660104 |
| GABRIEL | 89436 |
| HENDRICKSON | S1667, S20002 |
| KONI | 88-1644 |
| KYB | 345617, 341625, 341626 |
| MERITOR | M85000, M83203, M85323 |
| MONROE | 6893, 66634, 65416, 66893, 65419, 66608 |
| MOTORCRAFT | CAX-893 |
| THOMAS SCHOOL | 61310232 |
