HALDEX part description

Product Description

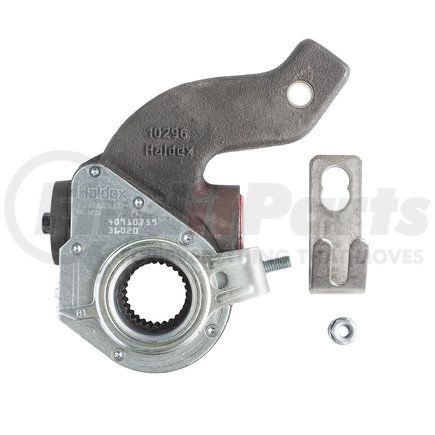

Auto Brake Adjuster (ABA), Steer & Std App Arm Length 5-1/2" Offset 0

Application Summary

Steer Axle Applications, Standard Applications, Compatible with all major brand clevises

Features & Benefits

  • Covers more applications than competing adjusters in the market
  • Compatible with clevises from major OE and aftermarket brands
  • Easily accessible hex nut for easy adjustment and maintenance
  • Specially-crafted wormshaft provides added resistance against fatigue
  • Heavy duty gaskets and O-rings seal out moisture and contaminants
  • Fully-sealed design protects linkages against the elements for added durability
  • Helps prevent uneven tire and brake wear for added savings on maintenance and operating expenses
  • Heat-treated steel alloy internal gears provide increased strength and wear resistance

Haldex Automatic Brake Adjuster (ABA) Service Kit

Improve your ride’s stopping performance with the Haldex automatic brake adjuster (ABA) service kit. This kit already includes the air brake automatic slack adjuster and other components you need to service your truck’s air braking system.

Product Attributes

Anchor Bracket Style Strap
Arm Hole Diameter 1/2 in.
Arm Length 5-1/2 in.
Body Angle 35 DD
Freight Class 70
Grease Fitting Location 180 DD
Grease Fitting Type Straight
Location Rear
Offset 0 in.
Pin Diameter 1/2 in.
Recommended Bracket Number 42710576
Spline Diameter 1-1/2 in.
Spline Quantity 28

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 8708305090
Harmonized Tariff Code (HTS) 8708305090
Remanufactured Part N
Warranty Distance 100000
Warranty Distance UOM MI
Warranty Special 72 MO, 1 MIL MI=Haldex ABA/SABA (409 Part Number Prefix)(1), 36 MO, Unlimited MI=Haldex ABA (NL/429 Part Number Prefix)(1). 24 MO, 200K MI=Haldex ABA(8). 24 MO, 100K MI=Haldex ABA/S-ABA(3) & Non-Haldex ABA. 12 MO, 100K MI=Haldex ABA(9). See L20221W.pdf
Warranty Time 12
Warranty Time UOM MO
UPC 00767653143224
VMRS Code 013002035

Part Interchanges

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
