HALDEX part description

Product Description

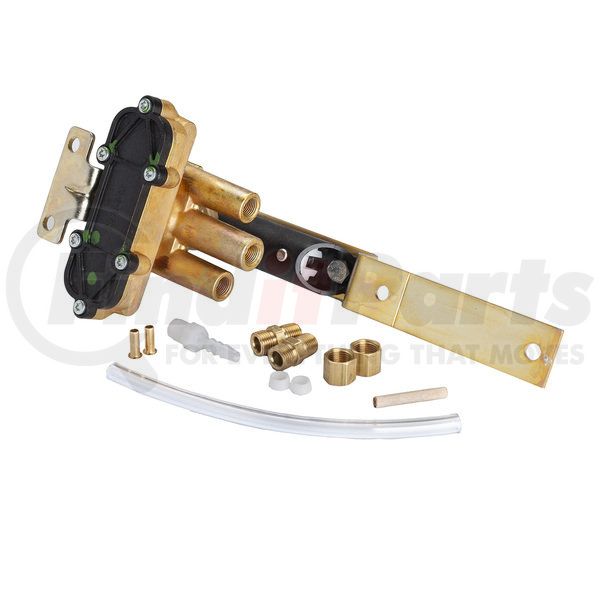

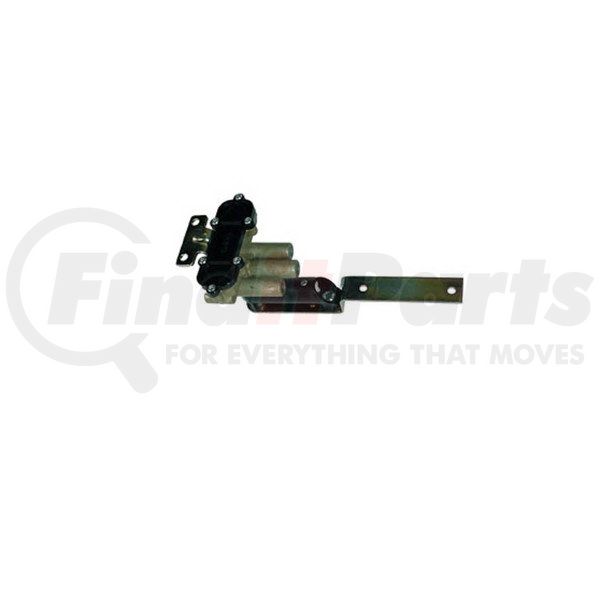

Type CR - Controlled Response Height Control Valve

Application Summary

Replaces 90054007

Features & Benefits

  • A high-quality Controlled Response height control valve
  • With top exhaust port, middle air spring port, and bottom supply port
  • A highly reliable valve with 1/8-inch NPT ports
  • Built to extend compressor life since it does not respond to short-duration dynamic changes in axle position, resulting in reduced air consumption

Haldex CR Height Control Valve

Save on fuel and maintenance costs and reduce fleet downtime by outfitting your trucks with the Haldex CR height control valve. This component adds air to or releases air from the suspension to maintain constant static design height.

Product Attributes

Port Quantity 3
Air Port Thread Diameter 1/8 in. NPT
Exhaust Port Diameter 1/8 in. NPT
Fitting Quantity 1
Fitting Size 1/4 in.
Freight Class 70
Series Controlled Response (CR)
Supply Port Diameter 1/8 in. NPT

Additional Information

Country of Origin (Primary) MX
Harmonized Tariff Code (Schedule B) 8481200070
Harmonized Tariff Code (HTS) 8481200070
Remanufactured Part N
Warranty Distance 100000
Warranty Distance UOM MI
Warranty Special 24 MO, 200,000 MI=Air Compressors EL850(4), EL1300(5), EL1600(5), Tu-Flo 501/550(4), Tu-Flo 700/750(4), 12 MO, 100,000 MI=All Other REMAN Products Not Listed(13). See L20221W.pdf for warranty details
Warranty Time 12
Warranty Time UOM MO
UPC 00767653248691
VMRS Code 016008023

Part Interchanges

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
