GROTE part description
Product Description

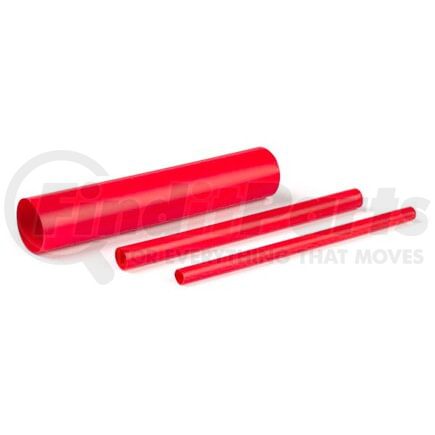

Shrink Tube, 3:1, Dual Wall, Red, 3/4" X 6", Pk 6
Features & Benefits
- Corrosion and abrasion resistance to protect your electrical connection
- Industry leading dual wall, adhesive lined heat shrinkable tubing with encapsulate lining
- Minimum shrink temperature 125°C (257°F)
- Operating temperature range -55°C (-67°F) to 110°C (230°F)
- Shrinks outer jacket and melts the inner "encapsulant" wall to flow and fill surface irregularities
Product Attributes
| Color | Red |
| Inner Wall Construction | Encapsulant Lined |
| Length | 6" |
| Material | Cross linked Polyolefin |
| Moisture Resistancy | Medium |
| Outer Wall Construction | Semi-Rigid |
| Prop 65 Label Required | N |
| Rohs | Yes |
| Size | 3/4" |
| Standards | Military AMS-DTL-23053/4 Class 1,UL E85381 |
| Type | Dual Wall |
| Voltage | 600V |
| Gauge | 4-2/0 GA |
Additional Information
| Country of Origin (Primary) | JP |
| Harmonized Tariff Code (Schedule B) | 3917320050 |
| UPC | 00621935028282 |
| VMRS Code | 034004045 |
GROTE 846103 Cross Reference
We have 3 alternatives for the 846103 by GROTE:
