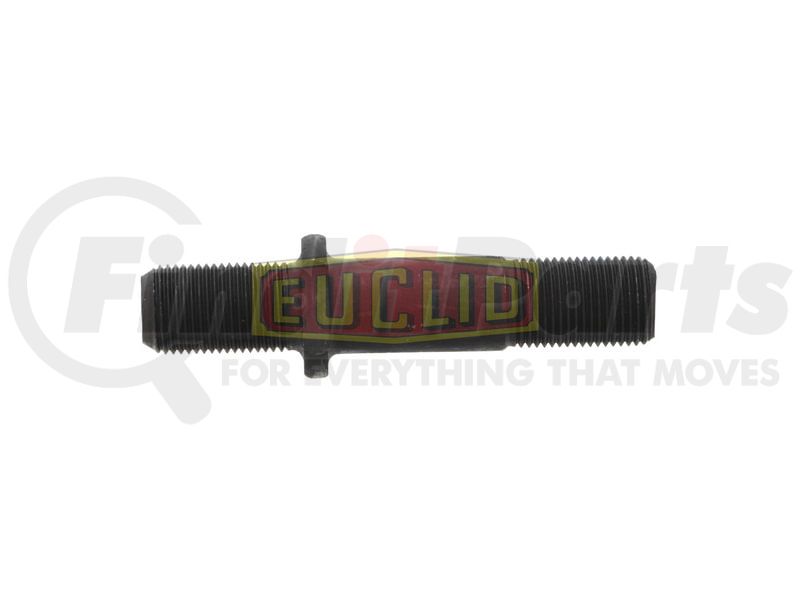

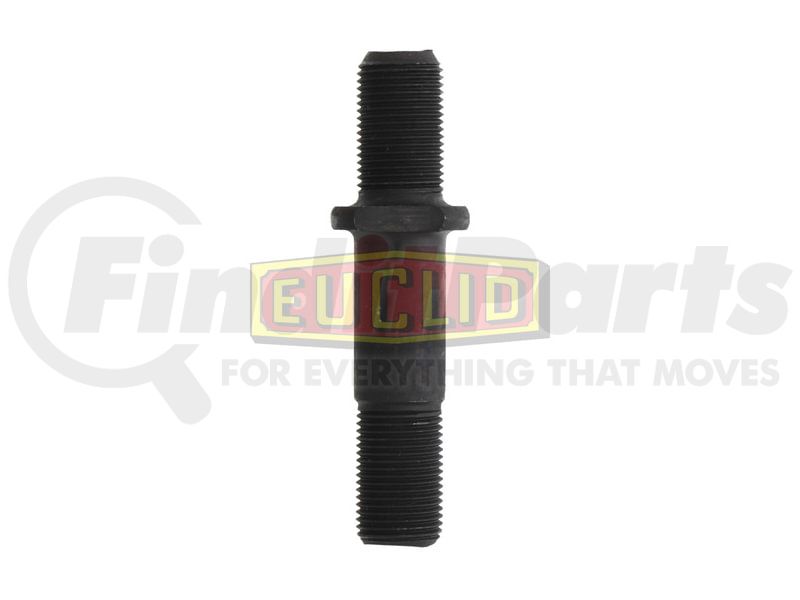

(888) 312-8812 Login SignupEUCLID E-5551-R Wheel Lug Stud, 0.784 in. Drum Shoulder Diameter, 1.44 in. Drum Shoulder Length, Right Hand Thread Direction
Tap to view 6 more
MSRP: $7.08
$649
Save $0.59
Limited availability at this price!
In Stock
Get as soon as Thursday, Oct 15
EUCLID E-5551-R Part Description
Manufacturer
Product Description
Wheel End Hardware, Right Hand Wheel Stud
Features & Benefits
- Fits the wheel position's correct thread rotation direction
- Drum shoulder dimensions match the hub assembly precisely
- Preserves correct clamping direction through normal wheel rotation
- Proper stud condition helps retain consistent wheel clamping force
Euclid Wheel Lug Stud
A wheel that loosens again after proper torque may have lost clamping force at the Euclid Wheel Lug Stud, where stretched or stripped threads compromise the connection. The Euclid E-5551-R uses a right-hand thread matched to that position, since the wrong direction can loosen under normal rotation. Drum shoulder dimensions on this stud match the 0.784 inch diameter and 1.44 inch length this hub assembly requires for a proper seated fit. A stud that's stretched from repeated over-torquing loses clamping force gradually, letting the wheel work looser with every mile even though the nut itself seems tight.
| Collar Across Clip | 0.94 in. |
| Collar Diameter | 1.12 in. |
| Collar Length | 0.19 in. |
| Collar Style | Clipped |
| Drum Shoulder Diameter | 0.784 in. |
| Drum Shoulder Length | 1.44 in. |
| Grade | 8 |
| Hub End Body Diameter | 0.786 in. |
| Hub End Length | 2.69 in. |
| Hub End Thread | 3/4/2016 |
| Hub End Thread Length | 0.91 in. |
| Length | 4 7/32 in. |
| Metric Thread Size | 3/4 - 16 UNF - 2A |
| Serration | Plain |
| Thread Diameter | 0.750 in. |
| Thread Length | 0.98 in. |
| Type | Shoulder |
| VMRS Code | 018-003-009 |
| Wheel End Body Diameter | Thread |
| Wheel End Length | 1.37 in. |
| Wheel End Length to First Thread | 0.39 in. |
| Wheel End Thread | 3/4/2016 |
| Wheel End Thread Direction | RH |
| Wheel End Thread Length | 0.98 in. |
| Wheel End Threads per Inch | 16 |
| Product Type | Wheel Stud |
| Stud Type | Clipped Collar Shoulder |
| Thread Size | 0.75" - 16 |
| Grade | 8 |
| A Measurement | 4.22" |
| B Measurement | 2.69" |
| Body Diameter | 0.784" |
EUCLID E-5551-R Specifications
Product Attributes
| Brand | Euclid |
| Drum Shoulder Diameter | 0.784 in. |
| Drum Shoulder Length | 1.44 in. |
| Grade Type | 8 |
| Hub End Body Diameter | 0.786 in. |
| Hub End Length | 2.69 in. |
| Hub End Thread Length | 15/16 in. |
| Hub End Thread | 3/4"-16 |
| Serration | Plain |
| Thread Diameter | 0.750 in. |
| Overall Length | 4 1/4 in. |
| Thread Length | 0.98 in. |
| Type | Shoulder |
| Wheel End Body Diameter | Thread |
| Wheel End Length | 1 3/8 in. |
| Wheel End Length To First Thread | 0.39 in. |
| Wheel End Thread | 42433 |
| Wheel End Thread Direction | Right Hand |
| Wheel End Thread Length | 0.98 in. |
| Wheel End Threads Per Inch | 16 |
EUCLID E-5551-R Cross References
| Brand | Part Number |
|---|---|
| E-5551R, E-5551-R, 48796H, 48797H1, 823520X58, R005551R | |
| AUTOMANN | 2017006R |
| BUDD | 17123 |
| BWP | M56, M5657 |
| BWP-NSI | M-56 |
| DAYTON PARTS BATCO | 131006R |
| DORMAN | 610-0427.10 |
| Dorman - Champ | 610046 |
| FLAGG | W46 |
| Fruehauf | 502787 |
| HALDEX | 67233 |
| International | 44668H, 48797H |
| LELAND | W46 |
| Mack | 18AX423 |
| Macpek | X1574 |
| NAPA | 6411240 |
| NEW LIFE/FLEETCRAFT | NL5210 |
| NUTURN - CAN | W46, W4647 |
| NWRA | X1574 |
| Okabe | OK7123 |
| PROVINCIAL WHSE -CAN | M56 |
| SIRCO BRAKE | 124 |
| SPICER | 501008R |
| Trailmobile | 385551R |
| WORLD AMERICAN | WA07-6004, WA07-6044 |
| WORLD TRUCK | 1541006R |
EUCLID E-5551-R Customer Reviews
No reviews yet
Be the first to review this product!
EUCLID E-5551-R Manufacturer Information
Euclid® is a world leader in the production of precision-engineered replacement parts for buses, trailers, as well as light-, medium- and heavy-duty trucks. This brand takes great pride in its products that meet and even exceed O.E.M. quality standards. Officially a part of Meritor since January 1999, Euclid remains the same despite all the changes the company has been through. When customers receive Euclid products, they know they are getting far more than ordinary replacement parts. Instead, they are getting the best replacement parts made today from a company they can trust. Euclid is a company that's continuously improving with technology to do a job the right way because it is the only way it knows how.
