Gates TR30543 - Green Stripe Truck & Bus Series V-Belt
$2049
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description

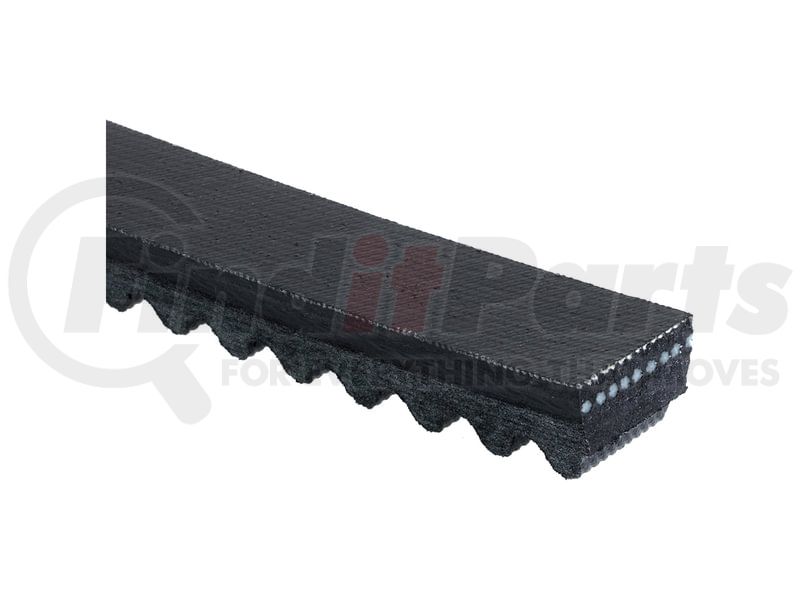

Green Stripe Truck & Bus Series V-Belt
Application Summary
Allis-Chalmers, 16000, , Compr.
Features & Benefits
- Molded notches reduce bending stress, especially on small diameter pulleys, while dissipating heat
- High modulus, high strength tensile cord
- Oil and heat-resistant construction throughout
- Meets SAE J636b and SAE J637 specifications
- Meets RMA oil and heat resistant standards and static conductivity requirements
- NOTE: Some sizes available as Gates PowerBand joined V-belts
Product Attributes
| Type | Truck & Bus V-Belt |
| Cross Section Designation | W |
| Angle | 36 |
| Strand Quantity | 1 |
| Top Width | .875 in |
| Outside Circumference | 54.83 in |
| Effective Length | 54.25 in |
| Construction | Notched |
| Notched | Yes |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 22 mm |
| Outside Circumference | 1393 mm |
| Effective Length | 1378 mm |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| UPC | 00072053277180 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
Part Interchanges
- Mopar BH-188
- Euclid 20441
- White 1708884
- White 1708885
- White 363876
- White 464218
- White 464219
- White 627238
- White 644452
- White 80294A
- White 80294B
- ACDelco T30543
- Dayco 250M
- Dayco 316M
- BF Goodrich 29547
- Leece-Neville 53212
- Carquest TR30543
- WABCO HD8004
- Allis Chalmers 1117620
- Allis Chalmers 4347818
- Allis Chalmers 4388181
- Allis Chalmers DE55927
- Bendix-Westinghouse 213179
- British Leyland 1B9003
- Caterpillar 6B7372
- Caterpillar 7E5097
- Caterpillar 9Y8864
- Chrysler 117620
- Clark Equipment HCF2561
- Clark Equipment PGF3072A
- Climax Engr 41100
- Cummins 134822
- Cummins 69978
- Cummins S1380
- Cummins S3180
- Diamond Reo DF2401V1
- Epton 29547
- Fiat 648807
- Fiat 757877
- Fleetrite ZAH28540
- General Motors 2190646
- General Motors 2193868
- General Motors 2193869
- General Motors 2193870
- General Motors 3224368
- General Motors 3231393
- Toyota R16372
- Alfa Romeo 160691055
- International Harvester (IHC) 30748H
- International Harvester (IHC) 38676H
- Massey Ferguson 35149A
- Reo Trucks 193A7
- Reo Trucks 200A7
- Koehring 11661
- Koehring 12366
- Koehring 13133
- Waukesha 265197
- Waukesha 43003
- Waukesha A41100
- Mack 88GB330P109
- Mack 88GB330P126
- Mack 88GB353P109
- Goodyear 32544
- Goodyear 32547
- Goodyear 32550
- Alliance Truck Parts GT30546
- Alliance Truck Parts GTFL680
- Grumman Flxible 1233545
- MBL Three Stars 30540
- NAPA 25-13750
- Sterling Stamco 8EB6
- Superior Coach 54181R1
- Teledyne Continental M330K314
- U.S. Government 507274
- Wagner Electric AE1629
- <Unknown> 1615521
- <Unknown> 1724011001
- <Unknown> YD303634X
- Metric 22A1375
- Metric 22A1380
