GATES part description

Product Description

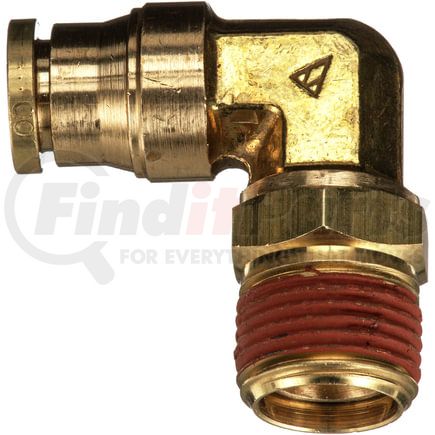

Air Brake to Male Pipe Swivel - 90 (SureLok)

Features & Benefits

  • Internal and external machined thread for connection to ports. Machining retains collet, tube support and O-Ring
  • Tube support prevents tube collapse during severe loading conditions
  • Collet teeth grip the tube, holding it firmly in the fitting
  • Internal O-Ring provides a seal and necessary interference between tube and fitting body

Product Attributes

Coupling Description SureLok Air Brake to Male Pipe Swivel - 90
Industrial Description 8AB-6MPX90
Thread Size 3/8-18
Outside Diameter .5 IN
9924 22 MM
9923 22 MM
Drop Length 1.42 IN
Length 1.27 IN
Maximum Working Pressure 150 PS
Temperature Rating -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C)
Material 360 Brass
Seal Material Ethylene Propylene

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 7412200015
UPC 00029769156629
VMRS Code 059032033
UNSPSC 27121700

Part Interchanges

GATES G31124-0806 Cross Reference

We have 1 alternatives for the G31124-0806 by GATES:
