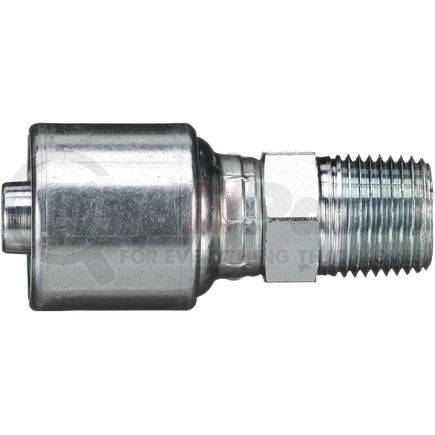

(888) 312-8812 Login SignupGATES G25100-2020 20G-20MP
Tap to view 3 more
$9749
Limited availability at this price!
In Stock
Get as soon as Tuesday, Oct 6
GATES G25100-2020 Part Description
Manufacturer
Product Description
Male Pipe (NPTF - 30 Cone Seat) (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25100-2020 Specifications
Product Attributes
| Coupling Description | MegaCrimp Male Pipe (NPTF - 30 Cone Seat) |
| Industrial Description | 20G-20MP |
| Thread Size | 1 1/4-11 1/2 |
| Inside Diameter | 1.25 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 1.75 IN |
| Cut-Off Length | 2.13 IN |
| Length | 4.44 IN |
| Seal Type | Thread Interference/Mated Angle |
| Nose Seat Type | Inverted |
| Thread Angle | 60 |
| Mating Angle | 30 |
| Gender | Male |
| Bent Tube Angle | Straight |
| Swivel | No |
| Inside Diameter | 31.8 MM |
| Cut-Off Length | 54 MM |
| Length | 112.8 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053171693 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25100-2020 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1AR20MP20, 1AV20MP20, 1GA20MP20, FJ9121-2020S |
| Caterpillar | 124-1910 |
| Continental Belt | B2-NPM-2020, BT-NPM-2020 |
| Dayco | 100905, 108268, HY20-20MP |
| Eaton | 1AA20MP20, 20Z-120 |
| Kurt Hydraulics | MP-20-20 |
| N/A | 04031635, 1220-2020, M12810-20-20 |
| NAPA | G25100-2020 |
| Parker | 10143-20-20, 101HY-20-20 |
| Weatherhead | 20S120, 20U120, 20Z120, 20U-116, 20U-120, 20S-120 |
