GATES G20910-0808 Part Description
Manufacturer
Product Description

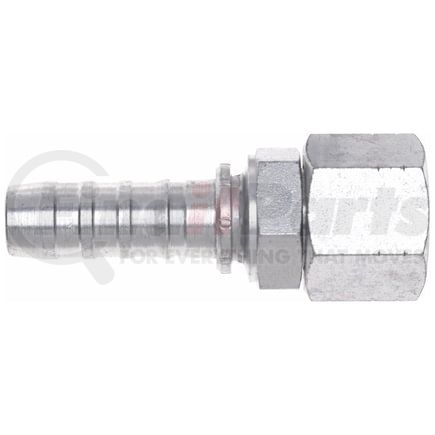

Female Komatsu Style Japanese Metric Swivel (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20910-0808 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female Komatsu Style Japanese Metric Swivel |
| Industrial Description | 8GS-8FKX |
| Thread Size | M22X1.5 |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Stem Hex Size | 27 MM |
| Nut Hex Size | 27 MM |
| Cut-Off Length | 1.46 IN |
| Length | 2.93 IN |
| Inside Diameter | 12.7 MM |
| Cut-Off Length | 37 MM |
| Length | 74.4 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053415407 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20910-0808 Cross References
| Brand | Part Number |
|---|---|
| Goodyear | 28545-0822, 29545-0822, S4-KMFX-0822 |
| Kurt Hydraulics | F-KOMX-08-22-W, F-KOMX-08-24-W |
| N/A | 04031324, N08-22FK |
| NAPA | G20910-0808 |
| Parker | 1MU71-08-08, 1MU71-8-8 |
| Weatherhead | 43008E22K, 43008U22K, 43008U-22K, 43008E-22K |
