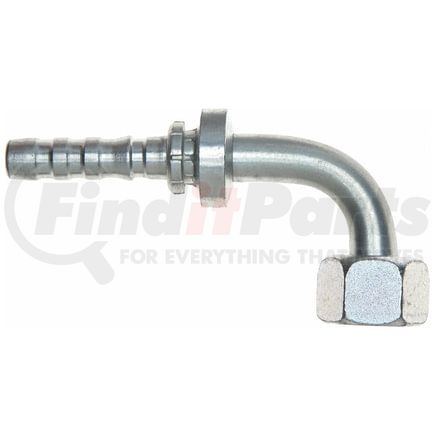

(888) 312-8812 Login SignupGATES G20832-2020 Female British Std Parallel Pipe O-Ring Swivel-90 Bent Tube (GlobalSpiral)
Tap to view 2 more
$25199
Limited availability at this price!
In Stock
Get it by Friday, Aug 7
GATES G20832-2020 Part Description
Manufacturer
Product Description
Female British Std Parallel Pipe O-Ring Swivel-90 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20832-2020 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female British Standard Parallel Pipe O-Ring Swivel - 90 Bent Tube |
| Industrial Description | 20GS-20FBSPORX90 |
| Thread Size | 1 1/4-11 |
| Inside Diameter | 1.25 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex Size | 50 MM |
| Drop Length | 3.15 IN |
| Cut-Off Length | 4.31 IN |
| Length | 7.11 IN |
| Inside Diameter | 31.8 MM |
| Drop Length | 80 MM |
| Cut-Off Length | 109.4 MM |
| Length | 180.6 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053510522 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20832-2020 Cross References
| Brand | Part Number |
|---|---|
| Dayco | 101692, 102294 |
| Goodyear | 28120-2020, S4-BPFX90-2020 |
| NAPA | G20832-2020 |
| Weatherhead | 4SP20W90P |
