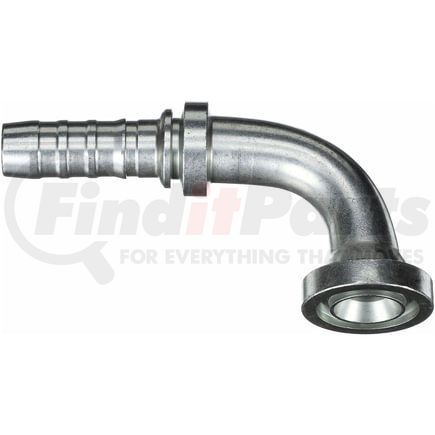

(888) 312-8812 Login SignupGATES G20365-1012 Code 62 O-Ring Flange Heavy - 90 Bent Tube (GlobalSpiral)
Tap to view 3 more
$9699
Limited availability at this price!
In Stock
Get it by Friday, Jul 31
GATES G20365-1012 Part Description
Manufacturer
Product Description
Code 62 O-Ring Flange Heavy - 90 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20365-1012 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Code 62 O-Ring Flange Heavy - 90 Bent Tube |
| Industrial Description | 10GS-12FLH90M |
| Inside Diameter | .625 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Maximum Working Pressure | 6000 PS |
| Flange Thickness | .35 in |
| Flange Diameter | 1.63 IN |
| Drop Length | 2.28 IN |
| Cut-Off Length | 2.37 IN |
| Length | 4.33 IN |
| Inside Diameter | 15.9 MM |
| Flange Thickness | 8.9 MM |
| Flange Diameter | 41.4 MM |
| Drop Length | 57.9 MM |
| Cut-Off Length | 60.2 MM |
| Length | 110 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053449907 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20365-1012 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 4S12FHB10 |
| Dayco | 100613 |
| Eaton | 1B12FHB10@P |
| Goodyear | 28315-1012, 29315-1012 |
| N/A | 04031105, M23691-10-12 |
| NAPA | G20365-1012 |
| Parker | 16N78-12-10 |
