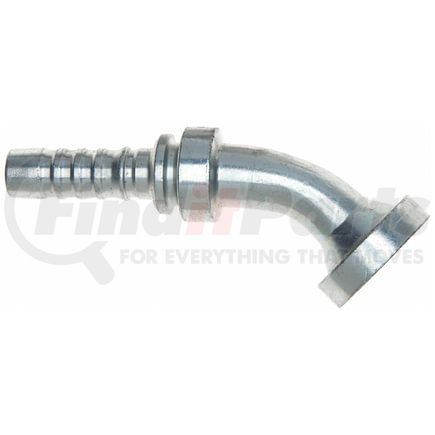

(888) 312-8812 Login SignupGATES G20357-2024 Code 62 O-Ring Flange Heavy - 45 Bent Tube (GlobalSpiral)
Tap to view 2 more
$21899
Limited availability at this price!
5 Day Lead Time
Get it by Friday, Feb 13
GATES G20357-2024 Part Description
Manufacturer
Product Description
Code 62 O-Ring Flange Heavy - 45 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20357-2024 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Code 62 O-Ring Flange Heavy - 45 Bent Tube |
| Industrial Description | 20GS-24FLH45M |
| Inside Diameter | 1.25 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Maximum Working Pressure | 6000 PS |
| Flange Thickness | .5 in |
| Flange Diameter | 2.5 IN |
| Drop Length | 1.73 IN |
| Cut-Off Length | 4.13 IN |
| Length | 6.93 IN |
| Inside Diameter | 31.8 MM |
| Flange Thickness | 12.7 MM |
| Flange Diameter | 63.5 MM |
| Drop Length | 43.9 MM |
| Cut-Off Length | 104.9 MM |
| Length | 176 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053437805 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20357-2024 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1E24FHA20, 1Z24FHA20, 1E20FHA20 |
| Dayco | 100510, 102228 |
| Goodyear | 28310-2024, S4-FH45-2024 |
| N/A | 04031078, N20-24FLH45, M83641-20-24 |
| NAPA | G20357-2024 |
| Parker | 16F78-24-20, 16F79-24-20 |
| Weatherhead | 43020ED54, 43020UD54, 47020ED80, 47020EED80, 4SP20WD80, 57020SD54, 6SP20WD54 |
