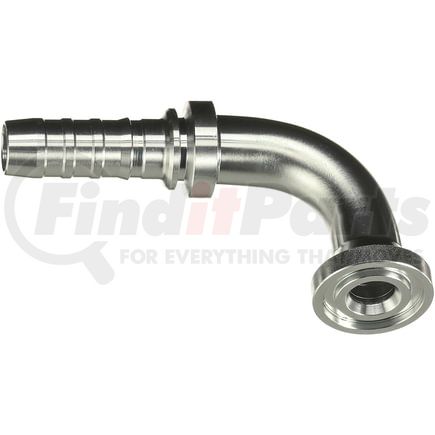

Gates G20315-1616 - 16GS 16FL90M
$8099
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Code 61 O-Ring Flange - 90 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
Product Attributes
| Coupling Description | GlobalSpiral Code 61 O-Ring Flange - 90 Bent Tube |
| Industrial Description | 16GS-16FL90M |
| Inside Diameter | 1 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Maximum Working Pressure | 5000 PS |
| Flange Thickness | .32 in |
| Flange Diameter | 1.75 IN |
| Drop Length | 2.76 IN |
| Cut-Off Length | 3.09 IN |
| Length | 5.31 IN |
| Inside Diameter | 25.4 MM |
| Flange Thickness | 8.1 MM |
| Flange Diameter | 44.5 MM |
| Drop Length | 70.1 MM |
| Cut-Off Length | 78.6 MM |
| Length | 134.9 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053296990 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
- Aeroquip 1B16FLB16
- Parker 11973-16-16
- Parker 11978-16-16
- Dayco 100339
- Dayco 102168
- Dayco 1B16FLB16
- Dayco FJ9795-1616S
- Weatherhead 43016EG76
- Weatherhead 43016UG76
- Weatherhead 47016EEG76
- Weatherhead 47016EG76
- Weatherhead 4SP16WG76
- Goodyear 28350-1616
- Goodyear 29350-1616
- Goodyear 29354-1616
- Goodyear S4-FL90-1616
- NAPA G20182-1616
- NAPA G20315-1616
- Parker 11971-16-16
