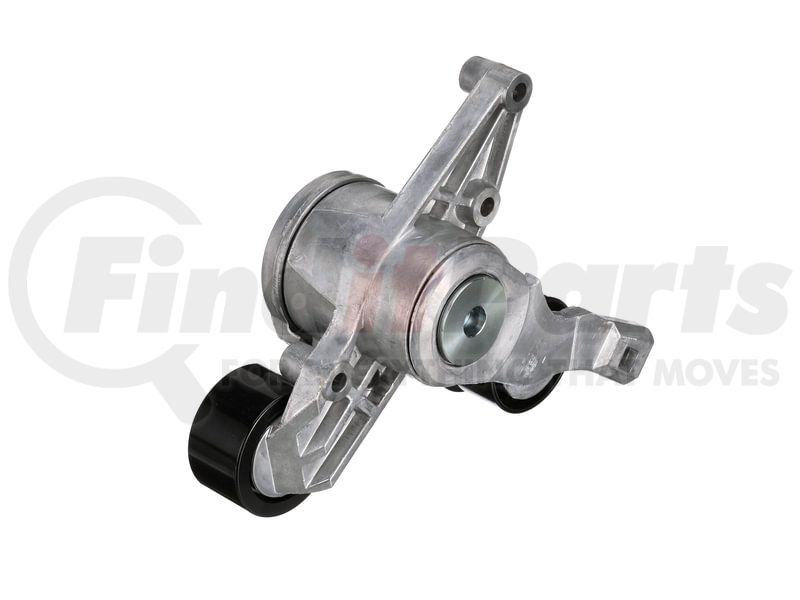

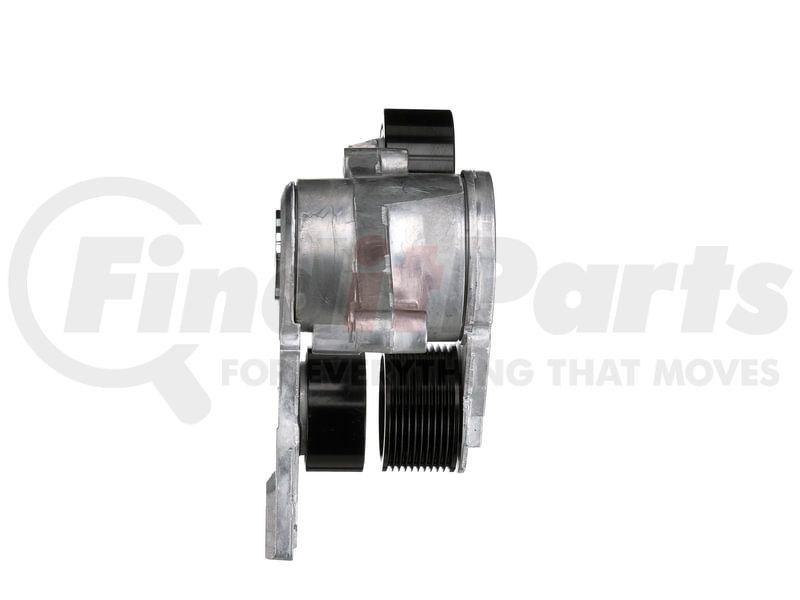

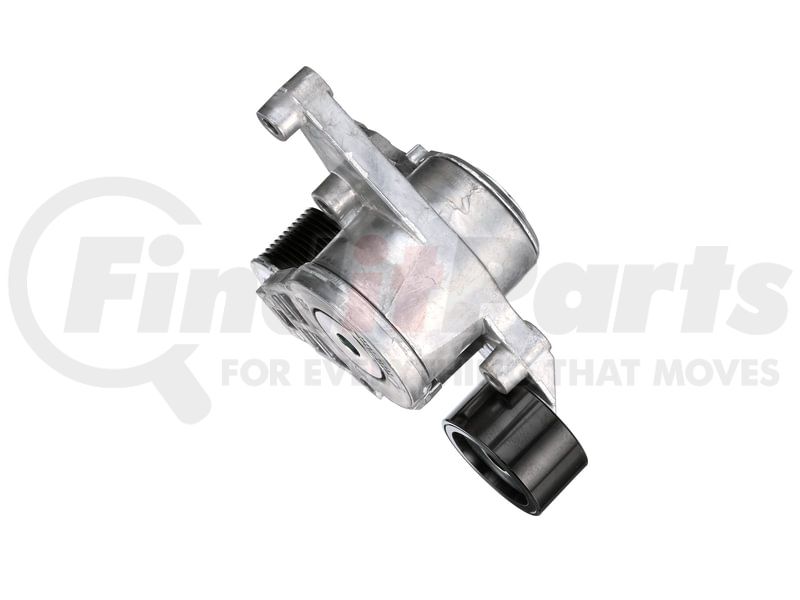

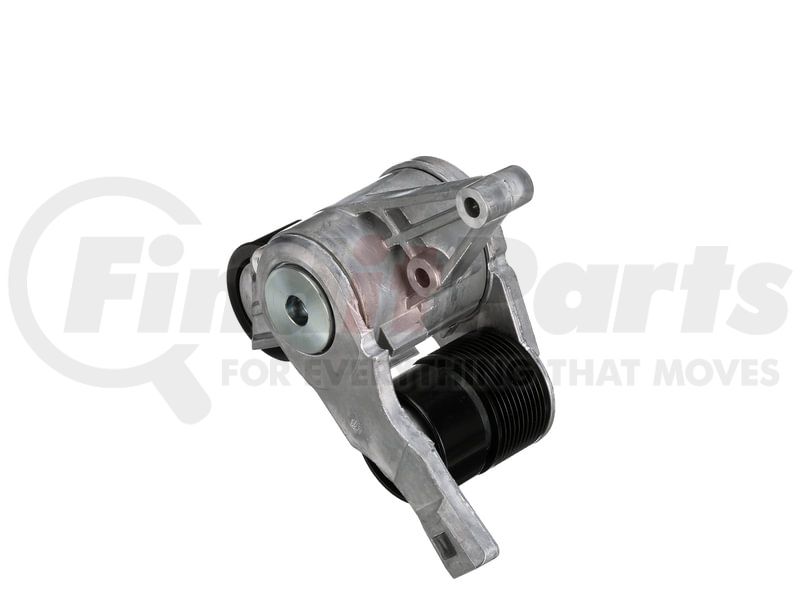

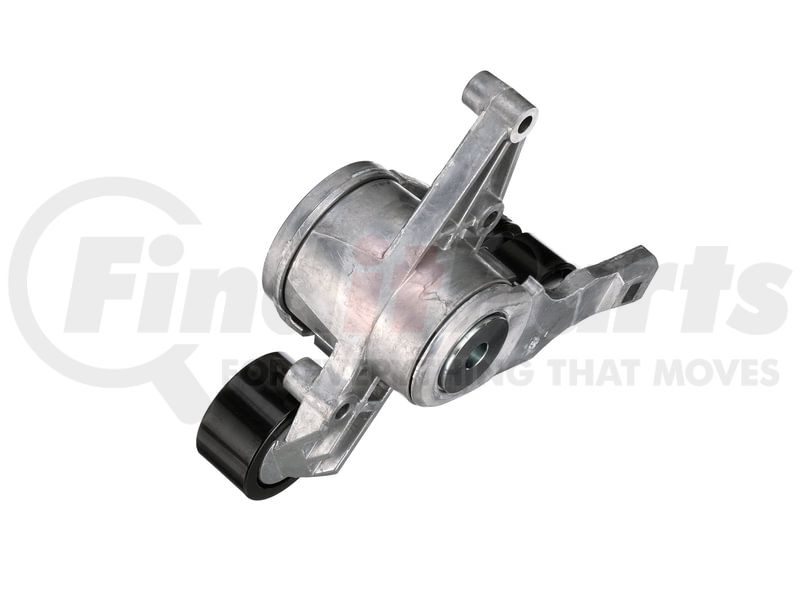

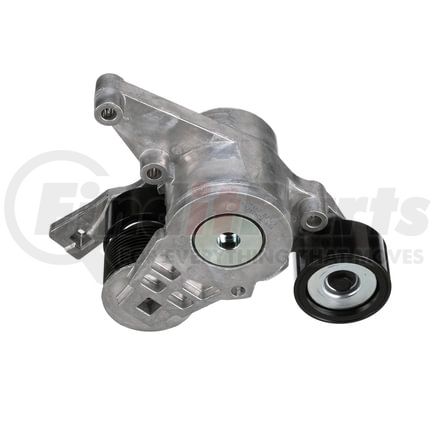

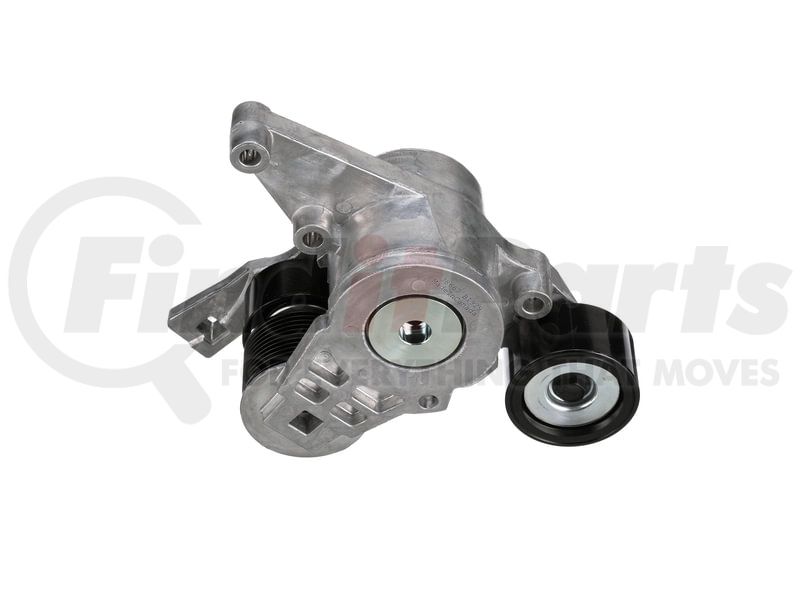

(888) 312-8812 Login SignupGATES 38667 FleetRunner Heavy-Duty Automatic Belt Drive Tensioner
Tap to view 6 more
$26599
Limited availability at this price!
In Stock
Get it by Thursday, Feb 19
GATES 38667 Part Description
Manufacturer
Product Description
FleetRunner Heavy-Duty Automatic Belt Drive Tensioner
Application Summary
2022-08 Freightliner, Cascadia, Detroit Diesel DD15 Diesel, Tensioner Assy.
Features & Benefits
- Optimized components engineered for maximum strength and durability
- Patented design provides superior belt alignment and tension for improved drive efficiency and life
- Patented labyrinth seal prevents contamination of internal parts for maximum durability and service life
- Long-lasting steel pulleys with dust shields to protect internal bearings from contamination
- Double row bearings carry more load and last up to 3X longer than two individual bearings
- Chrome-silicone round torsion spring for less ?ex-fatigue than ?at-spring designs
- Chrome-silicone round torsion spring for less flex-fatigue than flat-spring designs
- Patented damping mechanism provides maximum stability, reducing vibration and increasing the life of the belt, tensioner and other accessory drive components
GATES 38667 Specifications
Product Attributes
| Grade Type | OE Improved |
| Pulley Quantity | 3 |
| Groove Quantity | 0, 10, 0 |
| Material | Steel, Steel, Steel |
| Contact Surface | Smooth/Backside, V-Ribbed Grooved, Smooth/Backside |
| Pulley 1 Flanged | No |
| Pulley 2 Flanged | Yes |
| Pulley 3 Flanged | No |
| Outside Diameter | 2.95, 2.91, 2.76 IN |
| Bearing Bore Inside Diameter | 1.18 IN |
| Width | 1.57, 1.59, 1.26 IN |
| Belt Type | V-Ribbed |
| Mounting Hole Quantity | 3 |
| Contents | Tensioner Assy. |
| Outside Diameter 1 (in) | 2.95 |
| Outside Diameter 1 (mm) | 75 |
| Outside Diameter 2 (in) | 2.91 |
| Outside Diameter 2 (mm) | 74 |
| Outside Diameter 3 (in) | 2.76 |
| Outside Diameter 3 (mm) | 70 |
| Bearing Bore Inside Diameter 3 (in) | .67 |
| Bearing Bore Inside Diameter 3 (mm) | 17 |
| Width 1 (in) | 1.57 |
| Width 1 (mm) | 40 |
| Width 2 (in) | 1.59 |
| Width 2 (mm) | 40.5 |
| Width 3 (in) | 1.26 |
| Width 3 (mm) | 32 |
| Pulley 1 Groove Quantity | 0 |
| Pulley 2 Groove Quantity | 10 |
| Pulley 3 Groove Quantity | 0 |
| Bearing Bore Inside Diameter | 30 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998180 |
| Country of Origin (Primary) | CA |
| Stock Status | S |
| UPC | 00770075527077 |
| VMRS Code | 042003076 |
| UNSPSC | 26111805 |
GATES 38667 Cross References
| Brand | Part Number |
|---|---|
| GT38667, HL3Z1813000CA | |
| ACDelco | 38667 |
| BANDO | 680030 |
| BWP-NSI | CT49603 |
| CARQUEST | 38667 |
| CONTINENTAL AG | 49603 |
| Continental Belt | 4031 |
| Dayco | 89498, 89947 |
| Detroit Diesel | A4722000470, A4722000570, A4722000870, A4722000970, A4722001070, A4722001370, A4722001470, A4722001570, AE4722000270, EA4722000270, EA4722000570, EA4722001070 |
| Freightliner Trucks | 4722000970, A4722000170, A4722000270, A4722000570, A4722000970, A4722001370, EA4722000470, EA4722000970 |
| GOODYEAR BELTS | 55820 |
| Goodyear | 49603 |
| KIT MASTERS | 638667 |
| Litens | 910585A |
| NAPA Belts/Hose | 38667 |
| NAVISTAR | FLT638667 |
| Tendeco | 910585 |
GATES 38667 Fits Vehicles
- Western Star 57X (2025)
- Western Star 49X (2025)
- Western Star 47X (2025)
- Freightliner Sport Chassis (2011, 2013-2022)
- Western Star 4800SF (2013-2015)
- Western Star 4700SF (2013-2021)
- Western Star 4700SB (2013-2021)
- Western Star 4800SB (2012-2021)
- Freightliner 122SD (2014-2023)
- Western Star 5700XE (2016-2021)
- Western Star 6900XD (2011-2012)
- Western Star 4900FA (2010-2018)
- Western Star 4900EX (2010-2021)
- Western Star 4900SA (2009-2018)
- Freightliner Century Class (2008-2010)
- Freightliner 114SD (2012-2025)
- Freightliner Coronado (2010-2016)
- Freightliner Cascadia (2008-2025)
- Freightliner Columbia (2008-2011)
- Freightliner M2 112 (2011-2022, 2024-2025)
- Sterling Truck L9500 (2009)
- Sterling Truck A9500 (2008-2009)
