GATES G20306-2020 Part Description
Manufacturer
Product Description

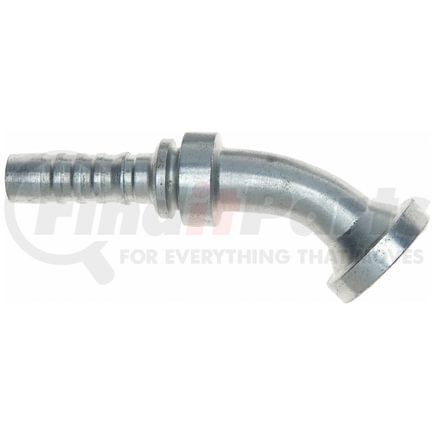

Code 61 O-Ring Flange - 45 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20306-2020 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Code 61 O-Ring Flange - 45 Bent Tube |
| Industrial Description | 20GS-20FL45S |
| Inside Diameter | 1.25 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Maximum Working Pressure | 4000 PS |
| Flange Thickness | .32 in |
| Flange Diameter | 2 IN |
| Drop Length | 1.26 IN |
| Cut-Off Length | 3.89 IN |
| Length | 6.69 IN |
| Inside Diameter | 31.8 MM |
| Flange Thickness | 8.1 MM |
| Flange Diameter | 50.8 MM |
| Drop Length | 32 MM |
| Cut-Off Length | 98.9 MM |
| Length | 169.9 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053437706 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20306-2020 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1B20FLA20, 1E20FLA20, 4S20FLA20, 6S20FLA20 |
| Continental Belt | SG-FL45-2020 |
| Dayco | 100224, 102138, 1B20FLA20 |
| Goodyear | 28340-2020, DG-FL45-2020, S4-FL45-2020 |
| N/A | 04030959, C12443340-2020, 620-1W-G50, M83341-20-20 |
| NAPA | G20306-2020 |
| Parker | 11771-20-20, 14F78-20-20, 14F73-20-20 |
| Weatherhead | 43020EG50, 43020UG50, 47020EEG50, 47020EG50, 4SP20WG50, 6SP20WG50, 43020E-G50, 43020U-G50, 47020E-G50 |
