GATES G20234-1616 Part Description
Manufacturer
Product Description

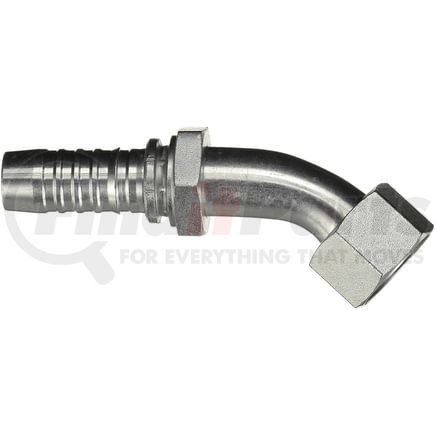

Female Flat-Face O-Ring Swivel - 45 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20234-1616 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female Flat-Face O-Ring Swivel - 45 Bent Tube |
| Industrial Description | 16GS-16FFORX45S |
| Thread Size | 1 7/16-12 |
| Inside Diameter | 1 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex Size | 24 MM |
| Drop Length | .94 IN |
| Cut-Off Length | 3.47 IN |
| Length | 5.67 IN |
| Inside Diameter | 25.4 MM |
| Drop Length | 23.9 MM |
| Cut-Off Length | 88.1 MM |
| Length | 144 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053437614 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20234-1616 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1BA16FRA16, 1EA16FRA16, 1ZA16FRA16, 4SA16FRA16, 6SA16FRA16 |
| Continental Belt | SG-OFFX45-1616 |
| Dayco | 102067, 1BA16FRA16, FJ9901-1616S |
| Goodyear | 28710-1616, 29710-1616, DG-OFFX45-1616, S4-OFFX45-1616, S6-OFFX45-1616 |
| N/A | 04030852, N16-16FF45, C12422443-1616M, 4007-1616, 516-1WFSX-L76, M82441-16-16, 616-1WFSX-L76, 6007-1616, M82442-16-16 |
| NAPA | G20234-1616 |
| Parker | 1J771-16-16, 1J773-16-16, 1J778-16-16, 1J779-16-16 |
| Weatherhead | 43016EL76, 43016UL76, 4SP16WL76, 43016U-L76, 43016E-L76 |
