GATES G20180-0608 Part Description
Manufacturer
Product Description

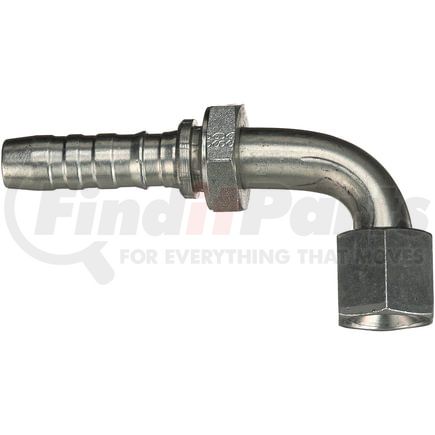

Female JIC 37 Flare Swivel - 90 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20180-0608 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female JIC 37 Flare Swivel - 90 Bent Tube |
| Industrial Description | 6GS-8FJX90M |
| Thread Size | 3/4-16 |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex Size | .875 IN |
| Drop Length | 1.61 IN |
| Cut-Off Length | 2.17 IN |
| Length | 3.58 IN |
| Inside Diameter | 9.5 MM |
| Drop Length | 40.9 MM |
| Cut-Off Length | 55.2 MM |
| Length | 90.9 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053437492 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20180-0608 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1BA8FJB6, 4SA8FJB6 |
| Caterpillar | 221-0467 |
| Dayco | 101216 |
| Goodyear | 29425-0608, 29445-0608 |
| N/A | 04030764 |
| NAPA | G20180-0608 |
