GATES G20174-0808 Part Description
Manufacturer
Product Description

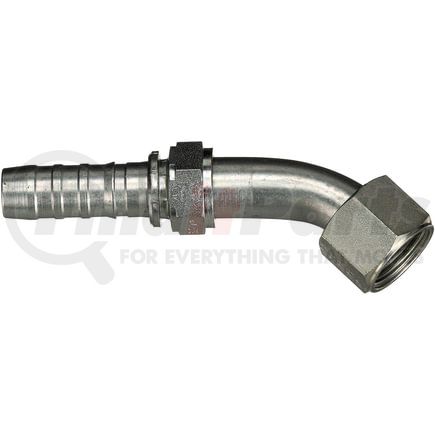

Female JIC 37 Flare Swivel - 45 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20174-0808 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female JIC 37 Flare Swivel - 45 Bent Tube |
| Industrial Description | 8GS-8FJX45S |
| Thread Size | 3/4-16 |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex Size | .875 IN |
| Drop Length | .59 IN |
| Cut-Off Length | 2.22 IN |
| Length | 3.7 IN |
| Inside Diameter | 12.7 MM |
| Drop Length | 15 MM |
| Cut-Off Length | 56.5 MM |
| Length | 94 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053310672 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20174-0808 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1BA8FJA8, 4SA8FJA8 |
| Caterpillar | 9S-9727 |
| Dayco | 101178, 1BA8FJA8 |
| Goodyear | 28420-0808, 29420-0808, 36425-0808, S4-JCFX45-0808 |
| N/A | 04030734, 4002-0808 |
| NAPA | G20174-0808 |
| Parker | 13771-8-8, 13777-8-8 |
| Weatherhead | 43008E688, 43008U688, 47008E688, 47008EE688, 47008E-688, 43008E-688, 43008U-688 |
