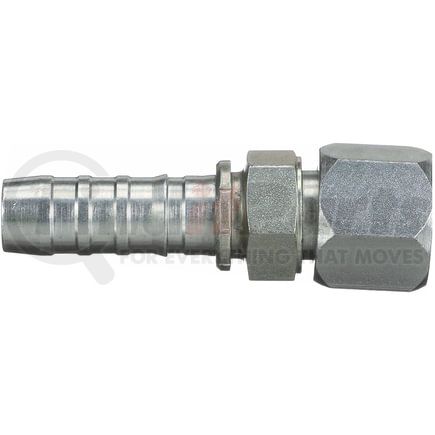

(888) 312-8812 Login SignupGATES G20140-1212 Female MegaSeal Swivel (GlobalSpiral)
Tap to view 3 more
$2749
Limited availability at this price!
In Stock
Get it by Tuesday, Aug 18
GATES G20140-1212 Part Description
Manufacturer
Product Description
Female MegaSeal Swivel (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20140-1212 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female MegaSeal Swivel |
| Industrial Description | 12GS-12FMX |
| Thread Size | 1 1/16-12 |
| Inside Diameter | .75 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Stem Hex Size | 1.125 IN |
| Nut Hex Size | 1.25 IN |
| Cut-Off Length | 2.02 IN |
| Length | 4.02 IN |
| Inside Diameter | 19.1 MM |
| Cut-Off Length | 51.3 MM |
| Length | 102.1 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053413687 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20140-1212 Cross References
| Brand | Part Number |
|---|---|
| N/A | 04030660 |
| NAPA | G20140-1212 |
