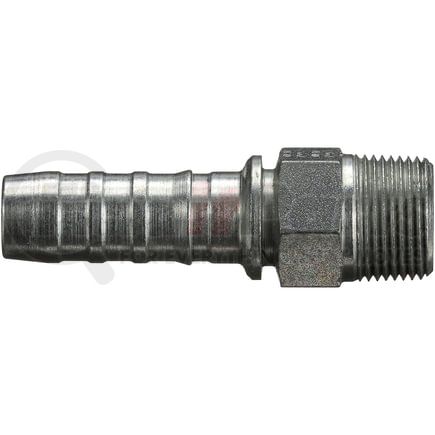

GATES G20100-0812 Part Description
Manufacturer
Product Description
Male Pipe (NPTF - 30 Cone Seat) (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20100-0812 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Male Pipe (NPTF - 30 Cone Seat) |
| Industrial Description | 8GS-12MP |
| Thread Size | 3/4-14 |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Stem Hex Size | 1.0625 IN |
| Cut-Off Length | 1.56 IN |
| Length | 3.03 IN |
| Inside Diameter | 12.7 MM |
| Cut-Off Length | 39.5 MM |
| Length | 77 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053417258 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20100-0812 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1BA12MP8, 4SA12MP8 |
| Caterpillar | 328-9135 |
| Dayco | 1BA12M98 |
| Goodyear | 28615-0812, 29615-0812, S4-NPM-0812 |
| N/A | 04030628, 4020-1208 |
| NAPA | G20100-0812 |
| Parker | 10171-12-08, 10171-12-8 |
| Weatherhead | 43008E116, 43008U112, 43008E-112, 43008U-112 |
