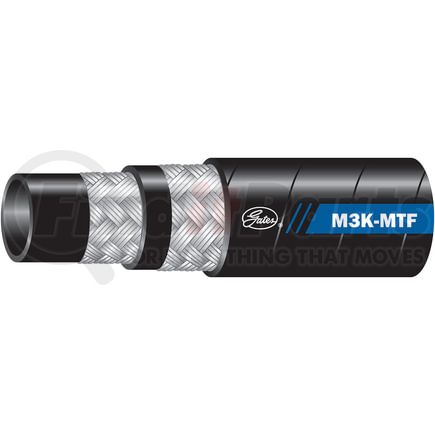

Gates 85526 - Global M3K Mega3000 Hose - SAE 100R17 - MegaTuff Cover
$57549
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Global M3K Mega3000 Hose - SAE 100R17 - MegaTuff Cover
Features & Benefits
- For use with GlobalSpiral Couplings [G20 Series], MegaCrimp Couplings [G25 Series], Power Crimp Couplings (-3 Only) and Stainless Steel Braid Couplings [G17 Series]
- Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing
- Tested to industry-leading 600,000 impulse cycles
- XtraTuff hose lasts up to 25 times longer than standard hose
- MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Rated at 3250 PSI working pressure
- Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
Product Attributes
| Product Type | Global M3K Mega3000 Hose - SAE 100R17 - MegaTuff Cover |
| Industrial Description | 6M3K-MTFX50FT |
| Type | Hydraulic Hose |
| Hose Pressure Description | High Pressure |
| Maximum Working Pressure | 3250 PS |
| Burst Pressure | 13000 PS |
| Temperature Rating | -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C) |
| Length | 50 FT |
| Dash Size | 6 |
| Inside Diameter | .375 IN |
| Outside Diameter | .63 IN |
| Bend Radius | 2 IN |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | One Braid, High-Tensile Steel Wire |
| Cover Material | Synthetic Rubber - Neoprene - Type A - Color Coded Layline |
| Cover Type | Type A - Flame, Oil, Abrasion & Weather Resistant - MegaTuff Cover |
| Cover Color | Black |
| Coupling Recommendation | GlobalSpiral, MegaCrimp, Stainless Steel B |
| SAE Standard | 100R17 |
| EN Standard | 857 1SC |
| ISO Standard | 18752 Grade B, 11237 R17 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| Country of Origin (Primary) | US |
| UPC | 00072053437171 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
Part Interchanges
