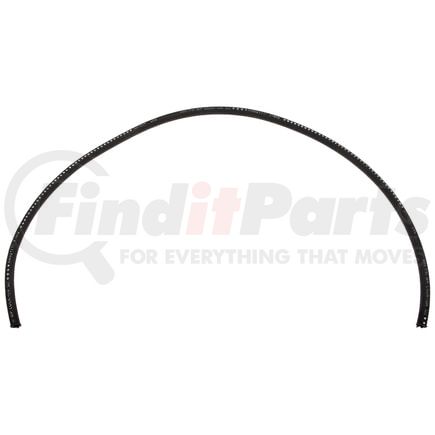

Gates 70033 - LOC 1-Fiber Braid Lock-On Hose
$799
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
LOC 1-Fiber Braid Lock-On Hose
Features & Benefits
- For use with Field Attachable LOC Couplings [G36 Series], use clamp over G37 single bead and G38 barbed fittings with clamp
- Oil and mildew resistant textile braided cover impregnated with synthetic rubber
- Meets SAE 30R2, SAE 30R6 and SAE 30R7 performance requirements for fuel and B20 biodiesel fuel transfer applications up to +125 Deg. F (+52 Deg. C)
- Temperature Range: -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C); Air: -40 Deg. F to +160 Deg. F (-40 Deg. C to +71 Deg. C)
Product Attributes
| Product Type | LOC 1-Fiber Braid Lock-On Hose |
| Industrial Description | 10LOCXREEL |
| Type | Hydraulic Hose |
| Hose Pressure Description | Low Pressure |
| Maximum Working Pressure | 300 PS |
| Burst Pressure | 1200 PS |
| Temperature Rating | -40 Deg. F to +250 Deg. F, to +160 Deg. F (Air) |
| Length | 250 FT |
| Dash Size | 10 |
| Inside Diameter | .625 IN |
| Outside Diameter | .90 IN |
| Bend Radius | 6 IN |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | One Fiber Braid |
| Cover Material | Textile Braid Impregnated w/ Synthetic Rubber |
| Cover Type | Oil & Mildew Resistant |
| Cover Color | Black |
| Coupling Recommendation | Field Attachable LOC Couplings, GLP |
| SAE Standard | 30R2, 30R6, 30R7 |
| EN Standard | N/A |
| ISO Standard | N/A |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| Country of Origin (Primary) | MX |
| UPC | 00072053225679 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
