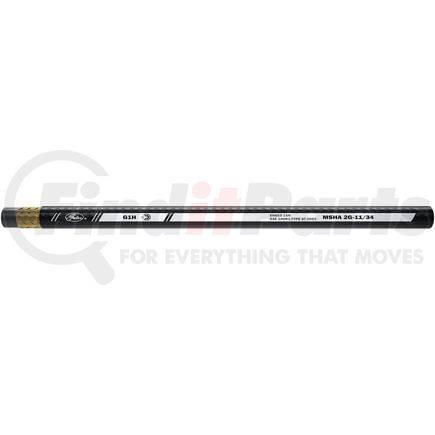

(888) 312-8812 Login SignupGATES 70212 Global G1H 1-Wire Braid Hose - High-Temp - SAE 100R1 Type AT
$4949
Limited availability at this price!
In Stock
Get it by Wednesday, Jun 17
GATES 70212 Part Description
Manufacturer
Product Description
Global G1H 1-Wire Braid Hose - High-Temp - SAE 100R1 Type AT
Features & Benefits
- For use with GlobalSpiral Couplings [G20 Series], GlobalSpiral Plus Couplings [G22 Series], MegaCrimp Couplings [G25 Series] and Stainless Steel Braid Couplings [G17 Series]
- Provides tighter than standard minimum bend radius and greater flexibility for easier plumbing routing
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: Hydraulic Oil Lines: -40 Deg. F to +275 Deg. F (-40 Deg. C to +135 Deg. C) constant; +300 Deg. F (+149 Deg. C) intermittent (up to 10 percent of operating time)
GATES 70212 Specifications
Product Attributes
| Product Type | Global G1H 1-Wire Braid Hose - High-Temp - SAE 100R1 Type AT |
| Industrial Description | 24G1HXCTN |
| Type | Hydraulic Hose |
| Hose Pressure Description | Medium Pressure |
| Maximum Working Pressure | 725 PS |
| Burst Pressure | 2900 PS |
| Temperature Rating | -40 Deg. F to +275 Deg. F (-40 Deg. C to +135 Deg. C) |
| Length | 120 FT |
| Dash Size | 24 |
| Inside Diameter | 1.5 IN |
| Outside Diameter | 1.96 IN |
| Bend Radius | 20 IN |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | One Braid of High-Tensile Steel Wire |
| Cover Material | Synthetic Rubber - CSM - Type M |
| Cover Type | Type M - Flame, Oil & Abrasion Resistant |
| Cover Color | Black |
| Coupling Recommendation | GlobalSpiral Plus |
| SAE Standard | 100R1 |
| EN Standard | 854 1SN |
| ISO Standard | 1437 1SN R1 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| Country of Origin (Primary) | IN |
| Stock Status | S |
| UPC | 00072053211740 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
GATES 70212 Cross References
| Brand | Part Number |
|---|---|
| Goodyear | HR1SN-24X100CL, HR1SN24X100 |
| N/A | 04030108 |
| NAPA | 70212 |
| Parker | 421HT-24, MX24, 426-24 |
| Weatherhead | H19024 |
