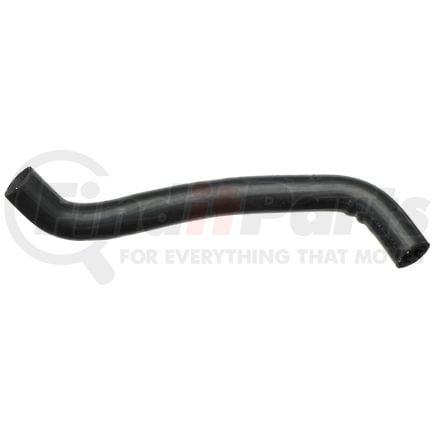

(888) 312-8812 Login SignupGATES 22301 Premium Molded Coolant Hose
$2199
Limited availability at this price!
In Stock
Get it by Thursday, Jan 15
GATES 22301 Part Description
Manufacturer
Product Description
Premium Molded Coolant Hose
Application Summary
2004-1997 Ford, F Series Pickup, V-6 4.2 L, Upper
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation, the leading cause of hose failure
- Pre-shaped to fit and to ensure perfectly sealed conditions
- EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
- Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
GATES 22301 Specifications
Product Attributes
| Centerline Length | 24.1 IN |
| Modular | No |
| Branch Quantity | 0 |
| Quick Connect Fitting Quantity | 0 |
| End 1 Inside Diameter | 1.72 in |
| End 2 Inside Diameter | 1.72 in |
| Contains Spring | No |
| Material | EPDM |
| Molded | Yes |
| Centerline Length | 612 MM |
| End 1 Inside Diameter | 44 MM |
| End 2 Inside Diameter | 44 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| UPC | 00072053283020 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
GATES 22301 Cross References
| Brand | Part Number |
|---|---|
| 42612301 | |
| ACDelco | 26335X |
| CONTINENTAL AG | 62378, 62203 |
| Carquest | 22301 |
| Dayco | 71898, E71898 |
| Duralast | E71898 |
| Ford | F65A 8B274 AB, F65A 8B274 AC, F65Z 8260 AA, F65Z 8260 AB, F85A 8B274 AA, XL34 8B274 AB, XL3Z 8260 AB |
| GOODYEAR BELTS | 40-107847 |
| Goodyear | 62203, 62378 |
| Motorcraft | KM-3046, KM-3089 |
| NAPA Belts/Hose | 8934 |
GATES 22301 Fits Vehicles
- Ford F-150 Heritage (2004)
- Ford F-150 (1997-2004)
GATES 22301 Customer Reviews
No reviews yet
Be the first to review this product!
