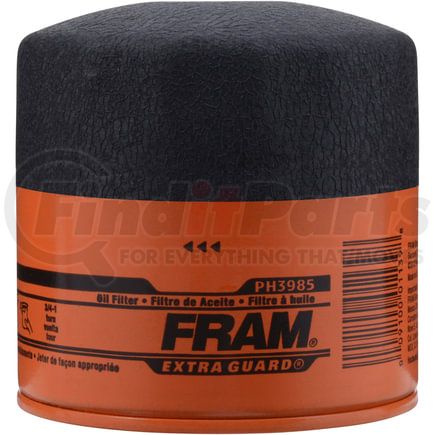

(888) 312-8812 Login SignupFRAM PH3985 Engine Oil Filter - Spin-On, 3.69" Height, 3.66" OD, Threaded, 12 PSI Bypass
Tap to view 2 more
$15.28
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
FRAM PH3985 Part Description
Manufacturer
Product Description
FRAM, PH3985, Oil Filter
Features & Benefits
- Grip-textured shell reduces slippage during filter swaps in oily bays
- Valve seal retains elasticity after extended winter parking intervals
- Shell strength counters accidental impact from nearby tools or components
- Balanced footprint supports installation in multi-accessory engine layouts
- Inlet holes promote even flow distribution during high-speed oil circulation
Spin-on Oil Filter
Fram Spin-on Oil Filter
The Fram Spin-on Oil Filter uses a SureGrip® exterior that gives it a textured hold, making installation and removal substantially easier than polished canisters. Rated for long-haul intervals of up to 10,000 miles, it benefits engines fitted with either synthetic or conventional lubricants. The fiber-and-resin media blend captures a high percentage of particulate debris while maintaining steady flow across temperature swings. Its silicone anti-drainback valve reinforces consistent start-up lubrication after overnight cool-downs. At 5.218" height with a mid-sized diameter, the Fram PH3985 integrates smoothly with many passenger and light-truck layouts.
FRAM PH3985 Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 3.688 IN |
| Anti-Drain Back Valve | Yes |
| Bypass Relief Valve Setting | 12 PS |
| Bypass Relief Valve | Yes |
| Filter Type | Spin-On Canister |
| Gasket Thickness | 0.203 IN |
| Housing Color | Orange |
| Non Slip Grip | Yes |
| Torque Nut | No |
| Gasket Inside Diameter | 2.469 IN |
| Gasket Outside Diameter | 2.750 IN |
| Attachment Type | Spin-On |
| Burst Pressure | 310.000 PS |
| Gasket Type | Base |
| Grade | Advanced |
| Grade Type | Regular |
| Inlet Type | Threaded |
| Inside Thread Diameter | M20x1.5 MM |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| Outside Diameter | 3.656 IN |
| Replacable Filter | Yes |
| Reusable | No |
| Thread Size | Metric |
| Burst Pressure | 310.000 PS |
| Burst Pressure (Pounds per Square Inch) | 310.000 |
| Bypass Relief Valve Setting (Pounds per Square Inch) | 12 |
| Gasket Inside Diameter (Inch) | 2.469 |
| Gasket Type | Base |
| Gasket Thickness (Inch) | 0.203 |
| Gasket Outside Diameter (Inch) | 2.750 |
| Height (Inch) | 3.688 |
| Outside Diameter (Inch) | 3.656 |
| Inner Thread Diameter | M20x1.5 MM |
| Replaceable Filter | Yes |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100381514 |
| UNSPSC | 15121501 |
FRAM PH3985 Cross References
| Brand | Part Number |
|---|---|
| AC-DELCO | PF9, PF970, PF970C |
| ACDELCO | PF970, PF970C, PF9 |
| AMSOIL | EAO44 |
| ATLAS | M-63 |
| AUTOEDGE | AL3985 |
| AUTOPRO | 2626 |
| BALDWIN | B141, B7352 |
| BOSCH | 3402, 3401, D3402, 72137WS |
| Beck/Arnley | 041-0739, 041-0752, 041-8086, 041-8092, 041-8122 |
| Big A | 92626 |
| CHRYSLER | 8933004195, 53002656, 83501900, T0720978, 8953002656, MD084693, T0730077, 7700730077, J0033408, 33003509, L14619, 5012968AA, 8933003509, 33004195, MD031805, 8983501900 |
| Cam2 | C4619 |
| Canada Tire | 17-1716-4 |
| Car Care | IOF3985 |
| Carquest | 85381, 85626, B4619, R85381, R85626 |
| Carquest Premium Filters | 85626, 85626HD |
| Casite Filters | CF3562, CF391 |
| Cenex | CO2801 |
| Champ | PH2801, PH2809, PH2852 |
| Champion | 41626T, COS3985, OF422 |
| Champion Filters | 41626T, COS3985, OF422 |
| Citgo Petroleum | C4619 |
| DENSO | 150-2003, 150-2043 |
| DONALDSON | P550158, P550934, P550933, P550716 |
| Defense Filters | DL3985 |
| Deutsch | D333, D401 |
| Driveworks | DW-4619 |
| ECOGUARD | X4619 |
| Econo-lube | L14619 |
| Evergard | E2801 |
| FIRESTONE | TF289 |
| FLEETGUARD | LF3494, LF3624, LF3537 |
| FRAM Drive | FD3985 |
| FRAM Tough Guard | TG3985 |
| FRAM Ultra Synthetic | XG3985 |
| FVP | R1626 |
| Factory Motor Parts | R1626 |
| Ferguson | R1626 |
| Filters Inc | OF3562, OF3669, OF3985 |
| Flag | C-2856, C-3562, C-3664, C-3985, C-4670 |
| GOODYEAR | L289 |
| General Motors | 25011441, 25013451, 25014155, 6439354, 94243270 |
| Girling | F6578, F6581, F6583 |
| Grand Prix | PH2801, PH2809 |
| Grease Monkey | GM14619, GM289 |
| Group 7 | V4619 |
| Hastings | LF391 |
| Havoline | T-33 |
| IAPCO | OF66, OF920 |
| IPD | 10068, 10238, 12129 |
| ISUZU | 9-94156-455 |
| ITM | 11-18303, 11-18305, 11-18501, 11-18505, 111-0001, 111-0004, 111-8501, 111-8505 |
| ITM Autoparts | 111-0001, 11-18303, 11-18305, 11-18501, 11-18505, 111-0004, 111-8501, 111-8505 |
| Installer Edge | AL3985, ML3985 |
| Jiffy Lube | HL3985, JL286, JL4619, L14619 |
| K Mart | K-31, MP-31, MP-43 |
| K&N | HP-2007 |
| KIOTI | E6201-32443 |
| Kendall | K28 |
| Kralinator | L117 |
| LUBER-FINER | PH2801, PH2872A |
| Lee | LF-2801 |
| MAHLE | OC223, OC 223 |
| MANN-HUMMEL FILTERS | L14619 |
| MITSUBISHI | MD030795, MD084693 |
| MOTORCRAFT | FL-306, FL-837, FL-403 |
| MPA | 4113, 4601, 4310 |
| Mann-Filter | ML 1029, W813/6, W910/3 |
| Master Parts | PH-2801, PH-2809, PH-2810 |
| MicroGard | MGL3985, MGL51626 |
| MicroGard Select | MSL51626 |
| Mighty Distributing System | M289, M3985 |
| Mileguard | MO3985 |
| Mobil | MO289 |
| Mobil 1 | M1-207, M1-207A |
| NAPA | 1626 |
| OE+ | OF-645 |
| PUROLATOR | TL14619 |
| Parts Master | 61626 |
| Parts Plus | PH2801 |
| Pennzoil | PZ-30 |
| Pentius | PLB3985 |
| Performax | PO-30 |
| Peugeot | 110951, 110975, 110982, 110986 |
| Phillips 66 | PO289 |
| Pit Stop | PSL28 |
| Power Flo | SL10193, SL14619 |
| Precision Tune | OF-289 |
| Premium Guard | PG4619 |
| Pro-Gauge | PGO-4619 |
| Pro-Tec | 156 |
| Professionals Choice - Archived | Q4619 |
| Promotive | PH4619 |
| Pronto | PO-3985, PO-4619 |
| Purflux | LS489 |
| Purolator | L14619, L17817 |
| Purolator PureONE | PL14619 |
| PurolatorONE | PL14619 |
| Quaker State | QS3985 |
| Renault | 77 00 695 804, 77 00 720 978, 77 00 730 077, 77 00 856 339, 77 01 349 452, 7700734825, 7700856339, 7700867454, 7701349942, 89 33 003 509, 89 33 004 195, 89 53 002 656, 89 83 501 900 |
| Rockhill | 61626 |
| STP | S3985 |
| STP Filters | S3985 |
| Security Filters | SO289 |
| Service Pro | M4619 |
| Shell - Archived | SH33 |
| Silverline | 21381, 21626 |
| Sunoco | O-30 |
| Tough Guard | TG3985 |
| Trust | PH2801, PH2809, PH2903 |
| VIPER | 3985 |
| Valvoline | L-289, VO-19, VO-35 |
| Vera | 10-00918, 10-01238, 10-01287, 10-51287, 10-51477 |
| WALMI | WS-3985 |
| WIX FILTERS | WIX FILTERS, 51626 |
| Warner Filters | PH2801 |
| Web | W3985 |
| Western Auto | 74-5889-6, 74-5940-7 |
| Wix | 51381, 51626 |
FRAM PH3985 Fits Vehicles
- Suzuki Aerio (2002)
- Renault LeCar (1985)
- Renault R5 (1986)
- Mitsubishi Mighty Max (1985-1987)
- American Motors Eagle (1987-1988)
- Chevrolet Corvette (1990-1995)
- Renault Fuego (1984-1985)
- Jeep J10 (1987-1988)
- Jeep Grand Wagoneer (1987-1990)
- Jeep Wrangler (1987-1993)
- Jeep Wagoneer (1985, 1987-1990)
- Jeep J20 (1987-1988)
- Jeep Comanche (1986-1992)
- Jeep Cherokee (1985-1993)
- Eagle Premier (1988-1992)
- Eagle Medallion (1988-1989)
- Dodge Ram 50 (1985-1987)
- Dodge Monaco (1990-1992)
- Renault R18i (1984-1986)
- Peugeot 405 (1989-1991)
- Peugeot 504 (1982-1983)
- Peugeot 505 (1981-1991)
- Peugeot 604 (1982-1984)
- Renault Alliance (1984-1987)
- Renault Encore (1984-1986)
