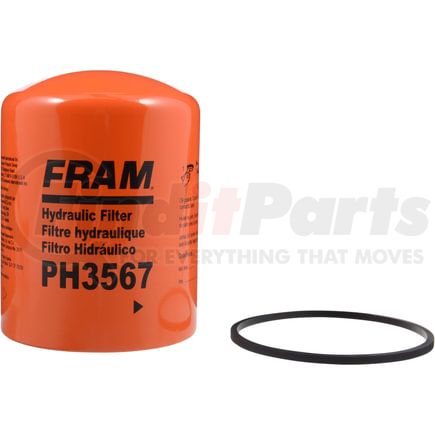

(888) 312-8812 Login SignupFRAM PH3567 Hydraulic Spin-on Filter
Tap to view 1 more
SHIPS NEXT BUSINESS DAY
MSRP: $33.09
$2899
Save $4.10
Limited availability at this price!
In Stock
Get as soon as Wednesday, Nov 18
FRAM PH3567 Part Description
Manufacturer
Product Description
FRAM, PH3567, Hydraulic Filter
Features & Benefits
- Included base gasket comes fitted and ready to seal
- Five-inch gasket diameter matches larger hydraulic filter heads
- Comes off and goes on as a single orange canister
- Cleans hydraulic fluid circulating to pumps and valves
Hydraulic Spin-on Filter
FRAM Hydraulic Filter
Built without a bypass relief valve, the FRAM Hydraulic Filter sends all the hydraulic fluid passing through it across the filter media. Its base gasket comes fitted on this FRAM PH3567 filter, sized 4.484 by 5.016 inches. It goes on as a complete spin-on canister in FRAM's orange housing color, with no anti-drainback valve inside. Changing the canister replaces the media and housing together at each hydraulic service, so you are done in one step.
FRAM PH3567 Specifications
Product Attributes
| Universal Or Specific Fit | Specific |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Drain Plug Included | No |
| Filter Type | Spin-On Canister |
| Fuel Type | Hydraulic |
| Gasket Inside Diameter | 4.484 IN |
| Gasket or Seal Included | Yes |
| Gasket Outside Diameter | 5.016 IN |
| Gasket Thickness | 0.359 IN |
| Gasket Type | Base Gasket |
| Grade Type | Regular |
| Height | 6.625 in |
| Housing Color | Orange |
| Inlet Type | Threaded |
| Inside Thread Diameter | 1 1/2-16 IN |
| Mounting Type | Spin On |
| New Or Remanufactured | New |
| Non Slip Grip | No |
| Outside Diameter | 5.063 IN |
| Reusable | No |
| Thread Size | Standard |
| Torque Nut | No |
| Inner Thread Diameter | 1 1/2-16 IN |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (HTS) | 8421290040 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100422149 |
| UNSPSC | 40161515 |
FRAM PH3567 Cross References
| Brand | Part Number |
|---|---|
| AC-DELCO | PF2010, PF2021, PF941 |
| ACDelco | PF2010, PF2021, PF941 |
| AG CHEM EQUIPMENT | 708476 |
| AG Chem | 708476 |
| BALDWIN | BT287-10, BT387-10, BT424 |
| BEHRINGER FLUID SYSTEMS INC | BS0128S10N38 |
| BIG A | 92759 |
| Carquest | 85759, 85865 |
| Case | 7738743, D80538, R25844 |
| Caterpillar | 342449, 3I-1627, 4T-6788, 8J-1600, 9T-5664 |
| Crosland | 7513 |
| Delaware Manitou | DMS511AN |
| Ditch Witch | 155-954 |
| Donaldson | P163068, P165189, P165879, P550388, P550590 |
| Elgin Sweeper | 1030553, 7071030 |
| Fleetguard | HF28792, HF6132, HF6163, HF6710, MK13077 |
| Fleetrite | HFR-86027, HFR-86067, HFR-86163, HFR-86710 |
| Ford | 1046Z602, D5NN-F914-A |
| General Motors | 25011184, 25012521 |
| Gonher | GP135, GP135M |
| Hastings | HF903 |
| Hesston | 7738743 |
| Hycon | MFE160-10/2 |
| Hydra-mac | 3401303 |
| Jacobsen | 554891, 59587916 |
| John Deere | AT44696, AT58368, GG17032373, GG17032376 |
| Koehring | 8320240 |
| Kralinator | L194 |
| LUBER-FINER | LFH4951, LFH4955, LFH5068-10, LFH7355 |
| Lenz | CP12821056, CP128255 |
| Lha | SPE-50-10 |
| MAIN FILTER | MF0363487 |
| McNeilus | MTM00436 |
| Morbark | 26838-641 |
| Motorcraft | FH-61 |
| NAPA | 1759 |
| Owatonna | 170-32342, 170-32375 |
| Pall | HC7500FDJ4H, HC9500SUJ4H, HC9500SUJ4HY5 |
| Prince | FB10 |
| Purolator | H40029 |
| Separation Technologies | ST6710 |
| Toro | 74-3570, 80-76001 |
| Universal | 902188 |
| Versatile | V15801 |
| WIX FILTERS | WIX FILTERS, 51759 |
| Wix | 51759 |
| Zinga | GCE-10, SE-10 |
