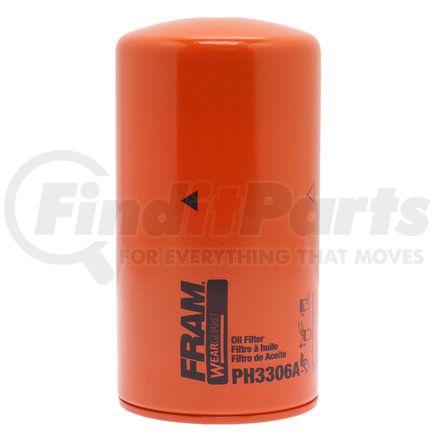

FRAM PH3306A - Spin-on Oil Filter
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
FRAM part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description
FRAM, PH3306A, HD Oil Filter
Spin-on Oil Filter
Product Attributes
| Height | 7.124 IN |
| Gasket Or Seal Included | Yes |
| Anti-Drain Back Valve | Yes |
| Bypass Relief Valve | Yes |
| Filter Type | Spin-On Canister |
| Gasket Thickness | 0.203 IN |
| Housing Color | Chrome |
| Non Slip Grip | No |
| Torque Nut | Yes |
| Gasket Inside Diameter | 2.460 IN |
| Gasket Outside Diameter | 2.810 IN |
| Bypass Relief Valve Setting | 8-12 PS |
| Drain Plug Included | No |
| Gasket Type | Base |
| Grade Type | Regular |
| Inlet Type | Threaded |
| Inside Thread Diameter | 1-12 IN |
| New Or Remanufactured | New |
| Outside Diameter | 3.690 IN |
| Reusable | No |
| Thread Size | Standard |
| Universal Or Specific Fit | Specific |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100421982 |
| UNSPSC | 15121501 |
Part Interchanges
- Champ LFP880
- Mopar L-302
- Donaldson P554017
- Motorcraft FL-265
- Hastings B447
- Sierra 18-7926
- ACDelco PF1801
- Kralinator L134
- Purolator L40048
- Wix 51158
- Big A 92158
- Baldwin B167
- LUBER-FINER LF1311I
- Carquest 85053
- Yanmar 127695-35150
- Mann-Filter W1140/2
- Case 86980031
- Caterpillar 3I-1356
- Cenex CO880
- Coach Guard T08-1061
- Crosland 2044
- Deutsch D4033
- Fleetguard HF6055
- Fleetrite HFR-86055
- General Motors 25010638
- Warner LFP880
- Ford D8NN-F933-AB
- Volvo 423135
- International Harvester (IHC) 3059246R91
- Champion HO509
- Phillips 66 PER48
- Savara 9.28.111.00
- ZF 9999-000-171
- Master Parts LFP-880
- Dorman DAV111
- Alliance Truck Parts ABP/N10G-LF690
- NAPA 1053
- Donaldson P557207
- Donaldson P558250
- Donaldson P559048
- Motorcraft FL-305
- Motorcraft FL-305FP
- Hastings B7215
- Hastings FP356
- Hastings LF356
- ACDelco PF2048
- ACDelco PF2206
- ACDelco PF2207
- ACDelco PF912
- ACDelco PF912F
- Kralinator L169
- Kralinator L176A
- Kralinator L53
- Purolator L40110
- Wix 51596
- Wix 51797
- Wix 51797MP
- Big A 92596
- Big A 92797
- Baldwin B447
- Baldwin B7215
- Baldwin B975
- Baldwin BK6807
- LUBER-FINER LFP2234
- LUBER-FINER LFP2257
- LUBER-FINER LFP54
- LUBER-FINER LFP880
- LUBER-FINER LFP950
- LUBER-FINER LK101I
- LUBER-FINER LK158I
- LUBER-FINER PH3306A
- LUBER-FINER PH933
- Carquest 85158
- Carquest 85596
- Carquest 85797
- Mann-Filter W950/1
- Mann-Filter W950/13
- Mann-Filter W950/17
- Mann-Filter W952
- Crosland 619
- Crosland 9318
- Fleetguard HF6279
- Fleetguard LF3464
- Fleetguard LF3861
- Fleetguard LF4017
- Fleetguard LF673
- Fleetguard LF690
- Fleetrite LFR-83464
- Fleetrite LFR-84017
- Fleetrite LFR-8673
- Fleetrite LFR-8690
- Fleetrite Z53
- General Motors 25012645
- General Motors 6438513
- Volvo 423135-3
- Volvo 471034
- Volvo 471034-9
- Volvo 4785974
- International Harvester (IHC) 3132737R93
- International Harvester (IHC) 427207C1
- International Harvester (IHC) 427207C2
- International Harvester (IHC) 528250R1
- NAPA 1158
- NAPA 1596
- NAPA 1797
FRAM PH3306A Cross Reference
We have 10 alternatives for the PH3306A by FRAM:
Fits Vehicles
- International MS (1975)
- International Scout II (1972-1974)
- International MS1210 (1973-1974)
- International 100 (1974)
- International MHC1310 (1974)
- International 1310 (1973)
- International 1210 (1973)
- International 1110 (1973)
- International 1010 (1973)
- International Travelall (1975)
- International 200 (1974-1975)
- International 150 (1975)
