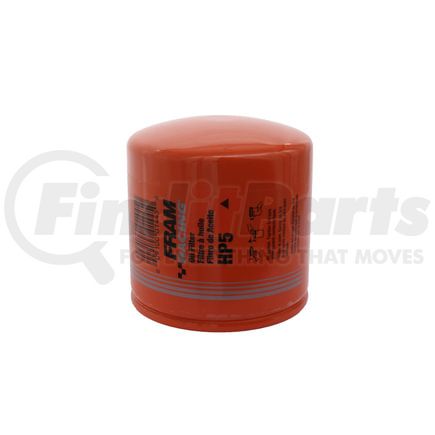

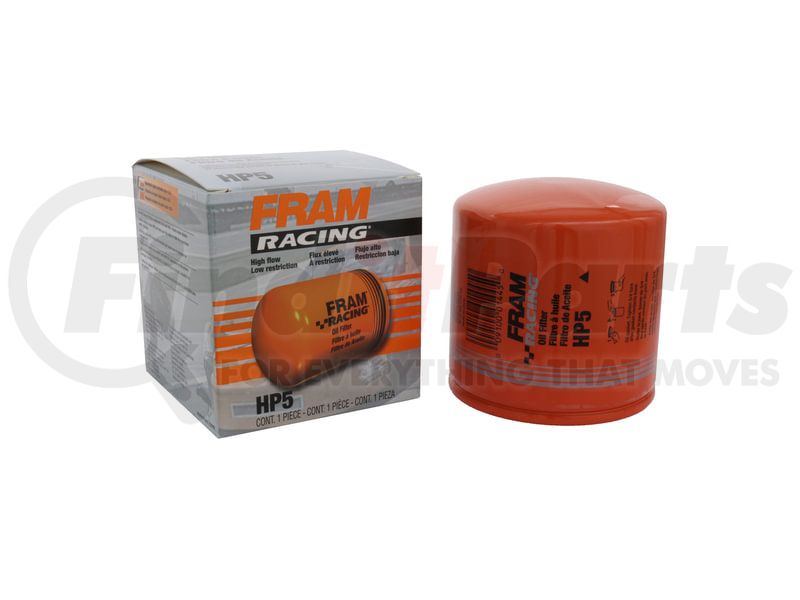

FRAM HP5 Part Description
Manufacturer
Product Description

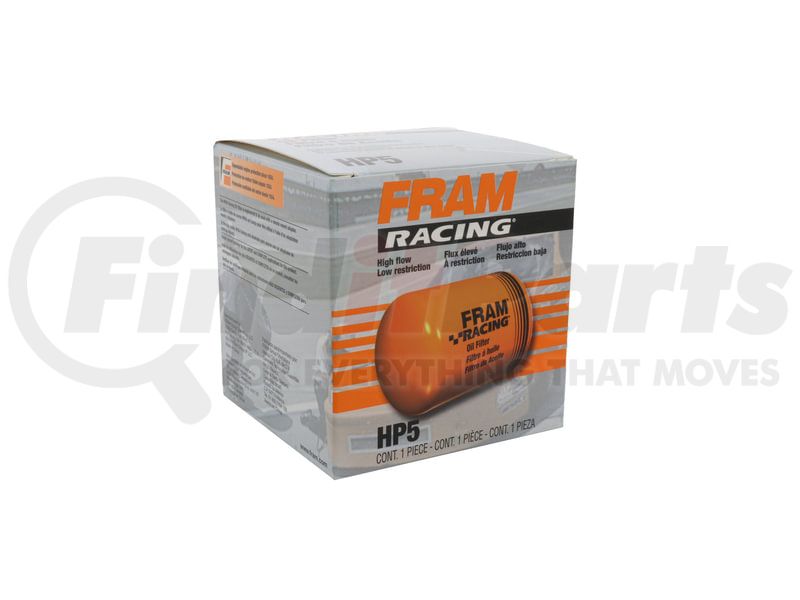

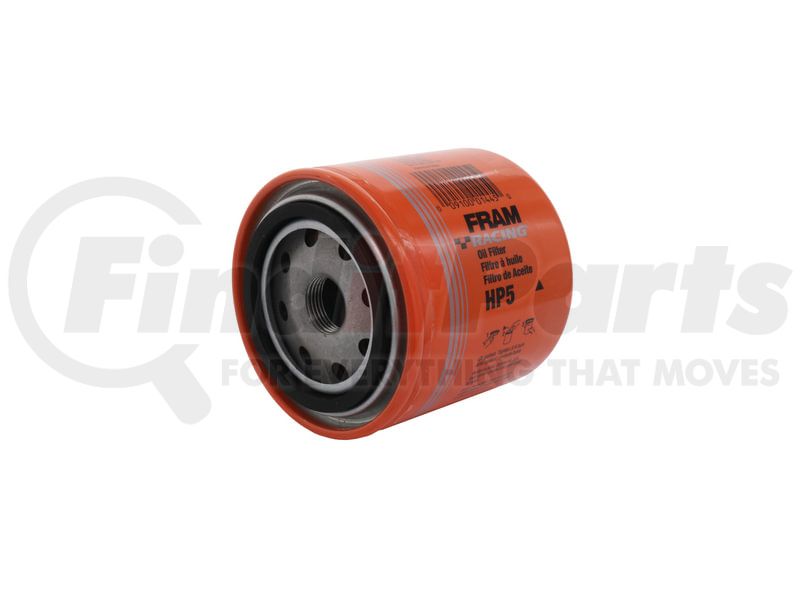

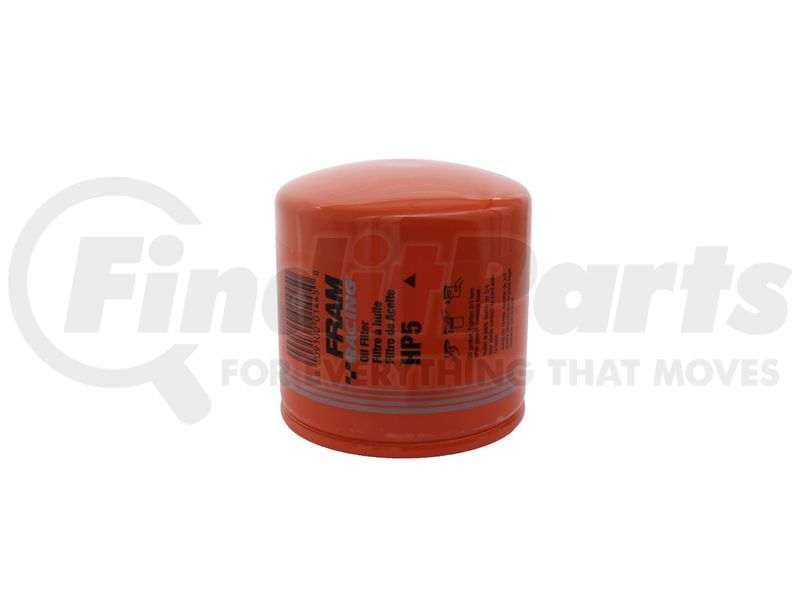

FRAM, HP5, Oil Filter
Features & Benefits
- Low-restriction synthetic blend racing media designed for high oil flow. The media features 94% efficiency @20 microns for excellent engine protection**
- Silicone anti-drain back valve.
- Recommended maximum oil flow: 10-18gpm, depending on model***
- Maximum burst pressure: 350-500psi, depending on model***
- Maximum operating pressure: 200psi on all models***
- Compatible with all oil types, this filter is optimized for racing and high-performance street cars
FRAM HP5 Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 3.763 IN |
| Anti-Drain Back Valve | Yes |
| Bypass Relief Valve | Yes |
| Filter Type | Spin-On Canister |
| Gasket Thickness | 0.354 IN |
| Non Slip Grip | No |
| Torque Nut | No |
| Gasket Inside Diameter | 2.460 IN |
| Gasket Outside Diameter | 2.814 IN |
| Marine Approved | No |
| Burst Pressure | 400.000 PS |
| Bypass Relief Valve Setting | 22.000 PS |
| Gasket Type | Base |
| Grade | Advanced |
| Inlet Type | Threaded |
| Inside Thread Diameter | 13/16-16 |
| Outside Diameter | 3.677 IN |
| Thread Size | Standard |
| Burst Pressure | 400.000 PS |
| Bypass Relief Valve Setting | 22.000 PS |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100014443 |
| UNSPSC | 15121501 |
FRAM HP5 Cross References
FRAM HP5 Fits Vehicles
- International 1100A (1966)
- International M800 Navy (1969)
- International Scout II (1972-1974)
- International M800 Post Office (1969-1972)
- International 200 (1974)
- International 100 (1974)
- Suzuki Aerio (2002)
- Jeep Commando (1971)
- Chevrolet C30 (1978)
- Jeep J-100 (1973)
- Pontiac Beaumont (1968)
- Pontiac Executive (1967-1970)
- Jeep Universal Truck (1966-1969)
- Buick Sportwagon (1964-1972)
- Pontiac Tempest (1961-1970)
- Buick Special (1961-1969)
- Cadillac Series 62 (1960-1964)
- Cadillac Series 75 Fleetwood (1960-1964)
- Jeep FC170HD (1966)
- Land Rover Range Rover (1970-1974)
- Pontiac Acadian (1968-1971)
- Oldsmobile Jetstar I (1964-1965)
- Pontiac Parisienne (1967-1974, 1976-1977, 1980)
- Rover 3500S (1969-1974)
- Oldsmobile Starfire (1961-1966)
- Oldsmobile Jetfire (1962-1963)
- Oldsmobile Delmont 88 (1967-1968)
- Pontiac Star Chief (1960-1966)
- Pontiac GTO (1964-1973)
- Jeep DJ5 (1971, 1975-1981)
- Oldsmobile Super 88 (1959-1964)
- Oldsmobile Jetstar 88 (1964-1966)
- Oldsmobile Fiesta (1959-1964)
- Oldsmobile F85 (1961-1972)
- Oldsmobile Dynamic 88 (1959-1966)
- Oldsmobile 442 (1964-1971)
- Jeep Jeepster (1971)
- Jeep J-2500 (1973)
- Jeep Dispatcher (1967-1969)
- Jeep Universal (1966-1967)
- Jeep J-2600 (1973)
- GMC K15/K1500 Pickup (1969)
- Buick GS 400 (1968-1969)
- Cadillac Series 60 Fleetwood (1960-1964)
- Buick GS (1970-1972)
- Cadillac Eldorado (1960-1976)
- Buick Wildcat (1962-1970)
- Buick Invicta (1959-1963)
- Buick GS 455 (1970-1972)
- Buick GS 350 (1968-1969)
- Buick Gran Sport (1965-1967)
- Buick Centurion (1971-1973)
- Pontiac Laurentian (1967-1974, 1976-1977, 1980)
- American Motors Spirit (1979-1982)
- American Motors Pacer (1975-1980)
- American Motors Matador (1975-1978)
- American Motors Hornet (1975-1977)
- American Motors Eagle (1980-1982)
- American Motors Gremlin (1975-1978)
- American Motors AMX (1978-1980)
- American Motors Concord (1978-1982)
- Pontiac Grand Safari (1971-1978)
- Pontiac Grandville (1971-1975)
- Pontiac Phoenix (1977)
- Pontiac Grand LeMans (1975-1977)
- Pontiac Ventura (1960-1961, 1971-1977)
- Pontiac LeMans (1963-1977)
- Pontiac Grand Prix (1962-1977)
- Oldsmobile Omega (1973-1977)
- Pontiac Grand Am (1973-1975)
- Pontiac Firebird (1967-1979)
- Pontiac Catalina (1960-1980)
- Pontiac Bonneville (1960-1980)
- Oldsmobile Vista Cruiser (1964-1975)
- Oldsmobile Toronado (1966-1977)
- Oldsmobile Cutlass Tiara (1976)
- Oldsmobile Delta 88 (1965-1978)
- Oldsmobile Cutlass Supreme (1967-1977)
- Oldsmobile Cutlass Salon (1975-1977)
- Oldsmobile Cutlass (1961-1977)
- Oldsmobile Custom Cruiser (1971-1978)
- Oldsmobile 98 (1959-1978)
- GMC C15 Suburban (1978)
- GMC C15 (1978)
- Chevrolet C10 Suburban (1978)
- Chevrolet C10 (1978)
- Cadillac Calais (1965-1976)
- Buick Regal (1973-1977)
- Buick Apollo (1973-1975)
- Cadillac Seville (1976-1978)
- Cadillac Fleetwood (1965-1976)
- Cadillac DeVille (1960-1976)
- Cadillac Commercial Chassis (1960-1976)
- Jeep Scrambler (1981)
- Buick Skylark (1961-1972, 1975-1977)
- Buick Riviera (1963-1978)
- Buick Estate Wagon (1959-1964, 1970-1980)
- Buick LeSabre (1959-1980)
- Jeep J10 (1974-1978, 1980-1982)
- Buick Electra (1959-1981)
- Buick Century (1973-1977)
- Jeep Wagoneer (1973-1974, 1980-1982)
- Jeep J20 (1974-1978, 1980-1982)
- Jeep Cherokee (1974-1975, 1980-1982)
- Jeep CJ6 (1971, 1974-1975)
- Jeep CJ7 (1976-1981)
- Jeep CJ5 (1971, 1974-1981)
