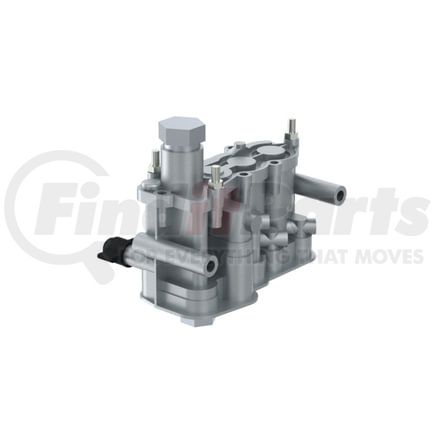

Name: WABCO 4630840200 Air Brake Control Valve
SKU: 4630840200
Price: 1273.49 USD
Availability: InStock

WABCO part description

Lift Axle Control Valve

Product Attributes

Max. operating pressure	13.0 bar
Calculated Volume (dm³)	2.6376
Type	LACV
Version	Dual-circuit
Port thread 3	Flap exhaust
Bolt Lengths	12.0 mm
Port thread 22	M16 x 1.5
Port Thread 42	Test Connection
Port thread 23	M16 x 1.5
Port thread 2	M22 x 1.5
Range Of Adjustment	2 to 7 bar
Size	148.5 x 166 x 110
Port thread 21	M16 x 1.5
Port thread 24	M16 x 1.5
Actuation	Automatic
Port thread 1	M16 x 1.5
Weight	4.8502
Port Thread 41	M16 x 1.5
Application	Trailer
Switch Pressure	Lowering: 4.5 / Lifting: 2.5 bar
Temperature Range	-40°C to +80°C

WABCO 4630840200 Cross Reference

We have 33 alternatives for the 4630840200 by WABCO:

Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
