WABCO part description

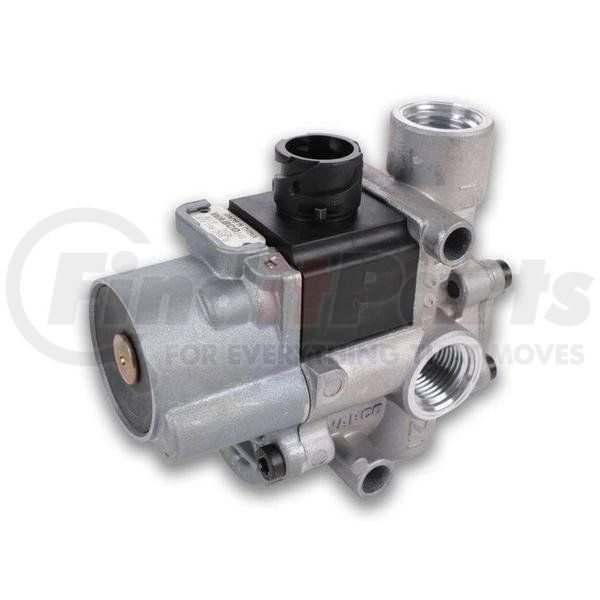

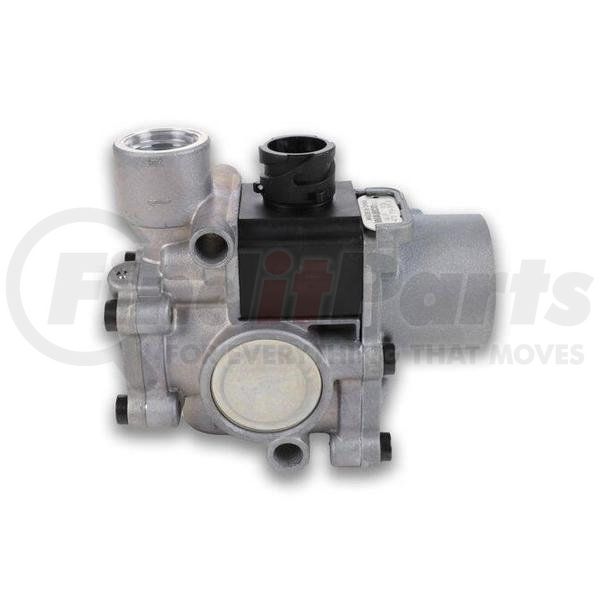

ABS Solenoid Modulator Valve

Product Description

SOLENOID VALVE

Product Attributes

Calculated Volume (dm³) 0.743
Port threads 1/2'' - 14NPTF
Max. operating pressure 159.5 psi
Port thread 2 1/2" - 14 DRYSEAL NPTF
Voltage 12 V
Size 105 x 118 x 60
Cooling Air
Exhaust Flap
Electrical connection Bayonet DIN 72 585 A1-3.1-Sn/K1
Protection class IP 66 / 69 K
Temperature Range -40°C to +80°C
Rated current 2220 mA
Port thread 1 1/2"-14 DRYSEAL NPTF
Weight 1.5124
Mounting 2x Ø 8.5 mm
Distance Between Holes 71x20 mm

Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
